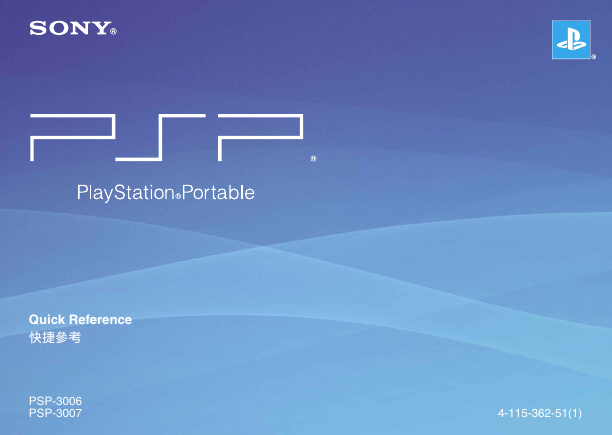

Quick Reference 快捷參考 PSP-3006 PSP-3007 4-115-362-51(1)

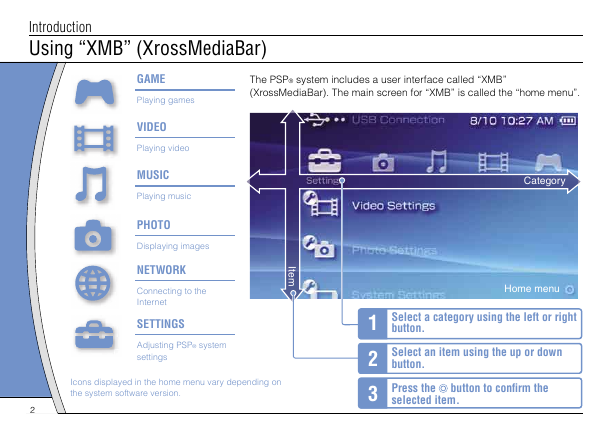

Introduction Using “XMB” (XrossMediaBar) The PSP® system includes a user interface called “XMB” (XrossMediaBar). The main screen for “XMB” is called the “home menu”. Category Home menu I t e m GAME Playing games VIDEO Playing video MUSIC Playing music PHOTO Displaying images NETWORK Connecting to the Internet SETTINGS Adjusting PSP® system settings Icons displayed in the home menu vary depending on the system software version. 2 button. button. 1 Select a category using the left or right 2 Select an item using the up or down 3 Press the button to conﬁrm the selected item.

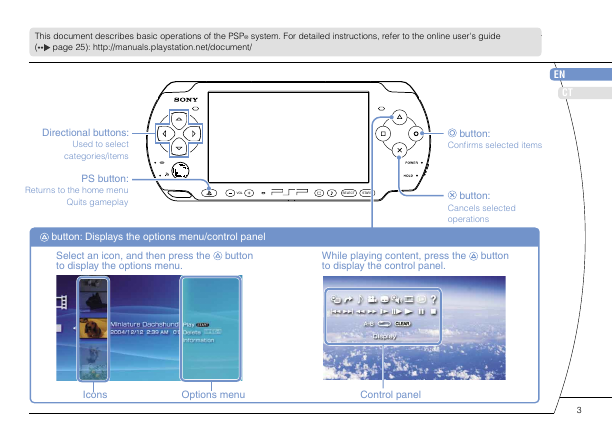

This document describes basic operations of the PSP® system. For detailed instructions, refer to the online user's guide ( page 5): http://manuals.playstation.net/document/ Directional buttons: Used to select categories/items PS button: Returns to the home menu Quits gameplay VOL SELECT START EN CT button: Confirms selected items button: Cancels selected operations button: Displays the options menu/control panel Select an icon, and then press the to display the options menu. button While playing content, press the to display the control panel. button Icons Options menu Control panel DE IT NL PT

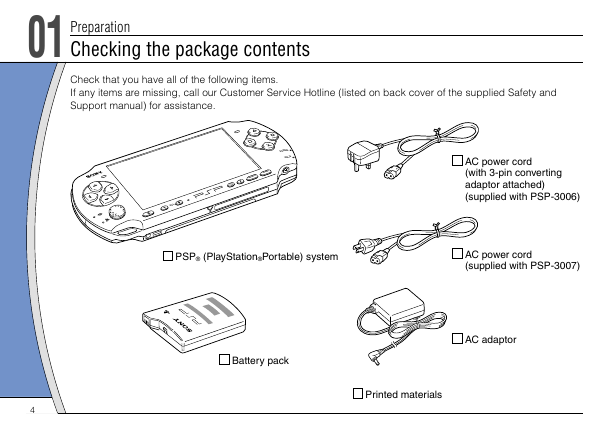

Preparation 01 Checking the package contents Check that you have all of the following items. If any items are missing, call our Customer Service Hotline (listed on back cover of the supplied Safety and Support manual) for assistance. P O W E R H O L D S T A R T S E L E C T L O V AC power cord (with 3-pin converting adaptor attached) (supplied with PSP-3006) PSP® (PlayStation®Portable) system AC power cord (supplied with PSP-3007) Battery pack AC adaptor Printed materials

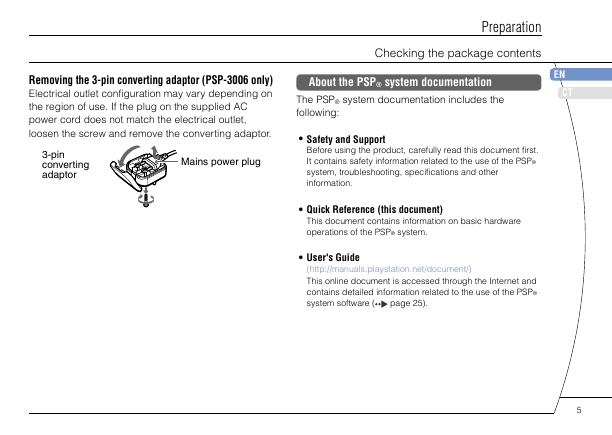

Removing the 3-pin converting adaptor (PSP-3006 only) Electrical outlet configuration may vary depending on the region of use. If the plug on the supplied AC power cord does not match the electrical outlet, loosen the screw and remove the converting adaptor. 3-pin converting adaptor Mains power plug Preparation Checking the package contents About the PSP® system documentation The PSP® system documentation includes the following: EN CT • Safety and Support Before using the product, carefully read this document first. It contains safety information related to the use of the PSP® system, troubleshooting, specifications and other information. • Quick Reference (this document) This document contains information on basic hardware operations of the PSP® system. • User's Guide (http://manuals.playstation.net/document/) This online document is accessed through the Internet and contains detailed information related to the use of the PSP® system software ( page 5). DE IT NL PT 5

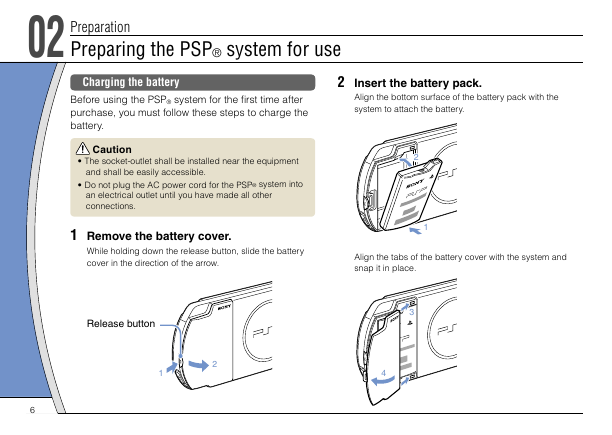

Preparation 02 Preparing the PSP® system for use Charging the battery Before using the PSP® system for the first time after purchase, you must follow these steps to charge the battery. Caution • The socket-outlet shall be installed near the equipment and shall be easily accessible. • Do not plug the AC power cord for the PSP® system into an electrical outlet until you have made all other connections. 1 Remove the battery cover. While holding down the release button, slide the battery cover in the direction of the arrow. 2 Insert the battery pack. Align the bottom surface of the battery pack with the system to attach the battery. 2 1 Align the tabs of the battery cover with the system and snap it in place. Release button 1 2 3 4

3 Attach the AC adaptor to charge the battery. Initial setup 1 Slide the power/hold switch up. EN CT Preparation Preparing the PSP® system for use Power indicator VOL SELECT START 2 SELECT START POWER HOLD Power/hold switch The power indicator lights up in green, and the initial setup screen is displayed. 1 2 Follow the on-screen instructions to make the initial settings. When you have completed initial setup, the home menu ( page ) is displayed. The power indicator lights up in orange, indicating that charging has begun. The power indicator will turn off when the battery is fully charged. 3 To electrical outlet • See "Using the on-screen keyboard" ( page ) for information on entering characters. • Settings made during initial setup can be changed later in (Settings). See the user's guide ( page 5) for details. DE IT NL PT

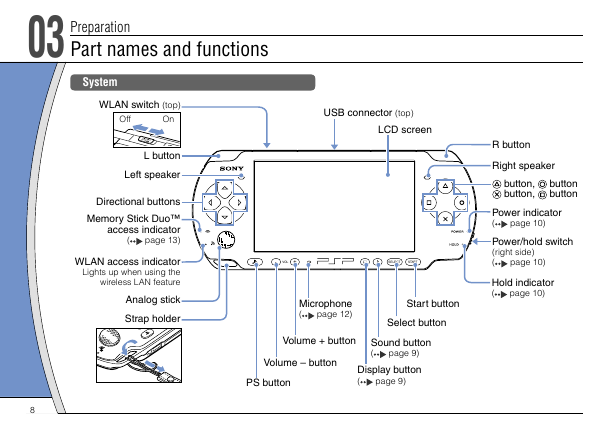

Preparation 03 Part names and functions System WLAN switch (top) Off On WLAN L button Left speaker Directional buttons Memory Stick Duo™ access indicator page 1) ( WLAN access indicator Lights up when using the wireless LAN feature Analog stick Strap holder USB connector (top) LCD screen VOL SELECT START Microphone ( page 1) Start button Select button R button Right speaker button, button, button button Power indicator ( page 10) Power/hold switch (right side) ( page 10) Hold indicator ( page 10) Volume + button Volume – button PS button Sound button ( page 9) Display button ( page 9)
