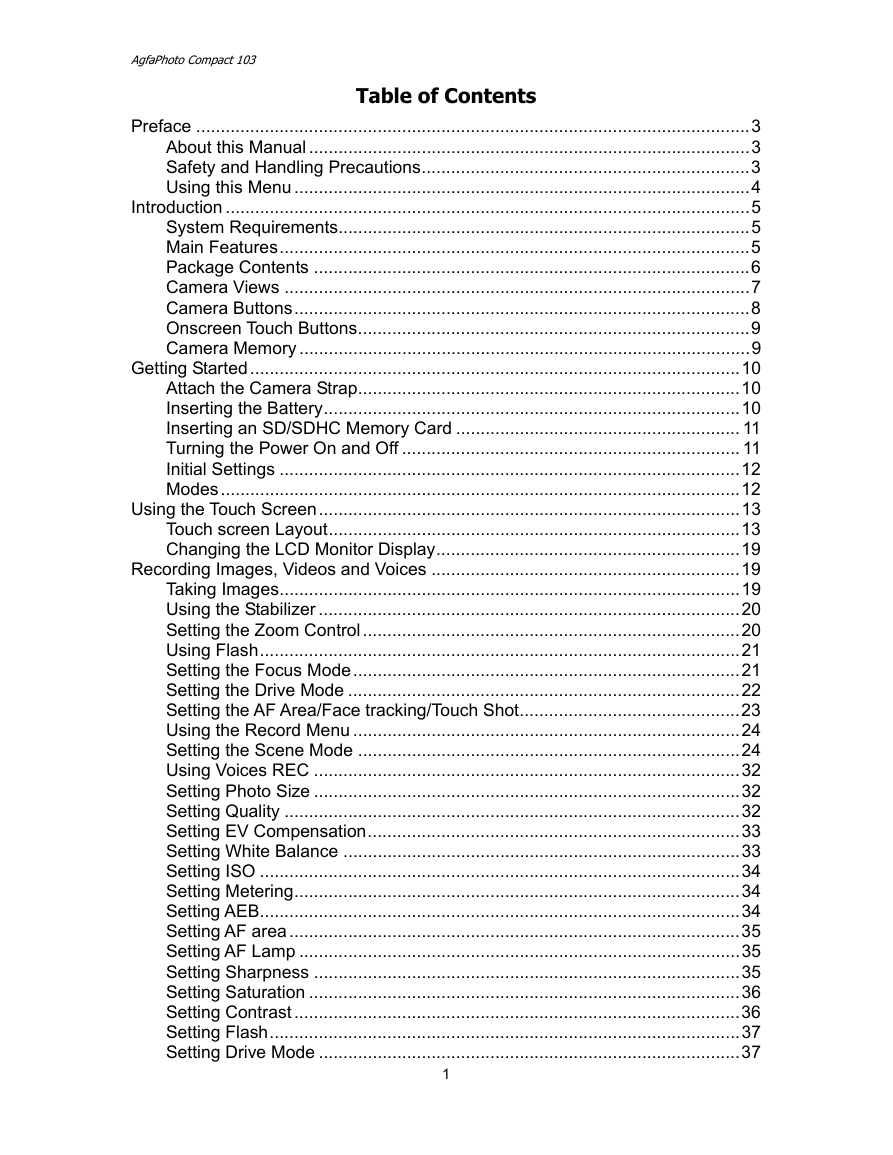

Table of Contents
Preface .................................................................................................................3
About this Manual ..........................................................................................3
Safety and Handling Precautions...................................................................3
Using this Menu .............................................................................................4
Introduction ...........................................................................................................5
System Requirements....................................................................................5
Main Features................................................................................................5
Package Contents .........................................................................................6
Camera Views ...............................................................................................7
Camera Buttons.............................................................................................8
Onscreen Touch Buttons................................................................................9
Camera Memory ............................................................................................9
Getting Started....................................................................................................10
Attach the Camera Strap..............................................................................10
Inserting the Battery.....................................................................................10
Inserting an SD/SDHC Memory Card .......................................................... 11
Turning the Power On and Off ..................................................................... 11
Initial Settings ..............................................................................................12
Modes..........................................................................................................12
Using the Touch Screen......................................................................................13
Touch screen Layout....................................................................................13
Changing the LCD Monitor Display..............................................................19
Recording Images, Videos and Voices ...............................................................19
Taking Images..............................................................................................19
Using the Stabilizer ......................................................................................20
Setting the Zoom Control.............................................................................20
Using Flash..................................................................................................21
Setting the Focus Mode...............................................................................21
Setting the Drive Mode ................................................................................22
Setting the AF Area/Face tracking/Touch Shot.............................................23
Using the Record Menu ...............................................................................24
Setting the Scene Mode ..............................................................................24
Using Voices REC .......................................................................................32
Setting Photo Size .......................................................................................32
Setting Quality .............................................................................................32
Setting EV Compensation............................................................................33
Setting White Balance .................................................................................33
Setting ISO ..................................................................................................34
Setting Metering...........................................................................................34
Setting AEB..................................................................................................34
Setting AF area ............................................................................................35
Setting AF Lamp ..........................................................................................35
Setting Sharpness .......................................................................................35
Setting Saturation ........................................................................................36
Setting Contrast ...........................................................................................36
Setting Flash................................................................................................37
Setting Drive Mode ......................................................................................37
1
AgfaPhoto Compact 103

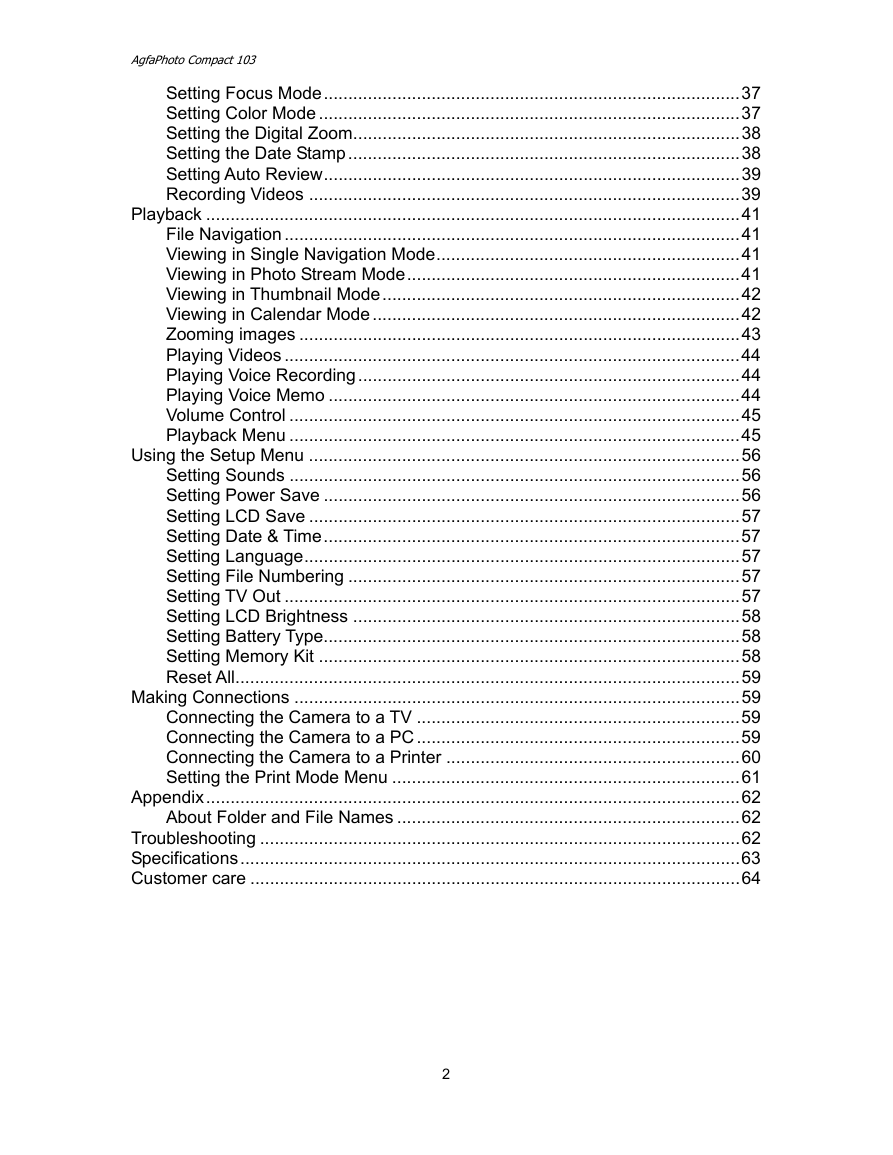

Setting Focus Mode.....................................................................................37
Setting Color Mode ......................................................................................37
Setting the Digital Zoom...............................................................................38
Setting the Date Stamp................................................................................38
Setting Auto Review.....................................................................................39
Recording Videos ........................................................................................39
Playback .............................................................................................................41
File Navigation .............................................................................................41
Viewing in Single Navigation Mode..............................................................41
Viewing in Photo Stream Mode....................................................................41
Viewing in Thumbnail Mode.........................................................................42
Viewing in Calendar Mode ...........................................................................42
Zooming images ..........................................................................................43
Playing Videos .............................................................................................44
Playing Voice Recording..............................................................................44
Playing Voice Memo ....................................................................................44
Volume Control ............................................................................................45
Playback Menu ............................................................................................45
Using the Setup Menu ........................................................................................56
Setting Sounds ............................................................................................56
Setting Power Save .....................................................................................56
Setting LCD Save ........................................................................................57
Setting Date & Time.....................................................................................57
Setting Language.........................................................................................57
Setting File Numbering ................................................................................57
Setting TV Out .............................................................................................57
Setting LCD Brightness ...............................................................................58
Setting Battery Type.....................................................................................58
Setting Memory Kit ......................................................................................58
Reset All.......................................................................................................59
Making Connections ...........................................................................................59
Connecting the Camera to a TV ..................................................................59
Connecting the Camera to a PC..................................................................59
Connecting the Camera to a Printer ............................................................60
Setting the Print Mode Menu .......................................................................61
Appendix.............................................................................................................62
About Folder and File Names ......................................................................62
Troubleshooting ..................................................................................................62
Specifications......................................................................................................63
Customer care ....................................................................................................64
2
AgfaPhoto Compact 103
Preface
About this Manual
This manual is designed to assist you in using your new AgfaPhoto digital camera. All information
presented is as accurate as possible but is subject to change without notice.
Copyright
This manual contains proprietary information protected by copyright. All rights are reserved. No part of this
manual may be reproduced by any mechanical, electronic or other means, in any form, without prior
written permission of the manufacturer.
© Copyright 2010
Federal Communications Commission (FCC) Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: A shielded-type power cord is required in order to meet FCC emission limits and to prevent
interference to radio and television reception. Use only shielded cable to connect I/O devices to this
equipment. Any changes or modifications not expressly approved by the manufacturer may void your
warranty and service agreement.
Declaration of Conformity
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired
operation.
Trademark Recognition
Windows 2000/XP/Vista/Win7 are registered trademarks of Microsoft Corporation in the United States
and/or other countries. Windows is an abbreviated term referring to the Microsoft Windows Operation
System. All other companies or product names are trademarks or registered trademarks of their respective
companies.
Safety and Handling Precautions
Camera Information
• Do not take apart or attempt to service the camera yourself.
• Do not expose the camera to moisture, or extreme temperatures.
• Allow the camera to warm up when moving from cold to warm temperatures.
• Do not touch the camera lens.
• Do not expose the lens to direct sunlight for extended periods.
• Do not use abrasive chemicals, cleaning solvents or strong detergents to clean the product. Wipe the
product with a slightly damp soft cloth.
3
AgfaPhoto Compact 103
Battery Information
• Turn off the camera before installing or removing the battery.
• Use only the provided batteries or type of battery and charger that came with your camera. Using
other types of battery or charger may damage the equipment and invalidate the warranty.
• When the camera is used for an extended period of time, it is normal for the camera body to feel
• Download all pictures and don’t remove the battery from the camera if you are going to store the
warm.
camera for a long period of time.
• The type of battery and the battery power level may cause the lens to be stuck up. Ensure you use
the correct battery type and use a fully charged battery.
• Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to the
instructions.
Disposal of Waste Equipment by Users in Private Households in the
European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of with
your other household waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human health
and the environment. For more information about where you can drop off your waste equipment for
recycling, please contact your local city office, your household waste disposal service or the shop where
you purchased the product.
Using this Menu
Symbols used in this manual are explained below:
This indicates useful information when using your camera.
This indicates important message that should be read before using the function.
4
Congratulations on your purchase of the new digital camera.
Capturing high-quality digital images is fast and easy with this state-of-the-art smart camera.
In order to get the most out of your camera, your computer must meet the following system requirements:
For Windows:
AgfaPhoto Compact 103
Introduction
System Requirements
• Windows 2000/XP/Vista/Win7
• Processor: Pentium II 450MHz or above
• Memory: 512MB or above
• HDD space: 200 MB or above
• 16bit color display monitor
• Microsoft DirectX 9.0C
• USB port and CD-ROM drive
For Macintosh:
• Power Mac G3 or later
• Mac OS 10.3X~10.6
• Memory: 512or above
• Q.Time player ver. 6.0.3 or above
• USB port and CD-ROM drive
Main Features
• 12 megapixel resolution
• Up to 4x optical zoom and 5x digital zoom
• 2.7 inch color LCD touch screen
• 32MB internal flash memory with optional external SD/SDHC card
• Supports up to 4GB of SD card, and up to 32GB of SDHC card
• Easy-to-use button interface
• Single-touch gesture control
• DCF, DPOF, PictBridge compatibility
• Slideshow to review still images
• A/V output to view your images, videos and audio on your TV
• USB port to transfer images, videos and audio to your PC
5
AgfaPhoto Compact 103
Package Contents
Please check the contents of your camera package. It should contain:
AgfaPhoto Compact 103
AA battery x 2 pcs
Rechargeable (optional)
Battery charger (optional)
Camera strap
USB cable
AV cable (optional)
Camera pouch (optional)
CD-Rom
Quick Start Guide/
User Manual (optional)
6
1. Flash
2. Microphone
3. Self-timer LED/
AF Assist Lamp
4. Lens
5. LCD monitor
6. Zoom Button
7. LED indicator
8. Playback Button
9. Speaker
10. Stabilizer button
11. Shutter button
12. Power button
AgfaPhoto Compact 103
Camera Views
Front View
Back View
Top View
7
