Setup and System Commands

SIZE

GAP

BLINE

OFFSET

SPEED

DENSITY

DIRECTION and Mirror Image

REFERENCE

COUNTRY

CODEPAGE

CLS

FEED

BACKFEED

FORMFEED

HOME

SOUND

CUT

LIMITFEED

SELFTEST

CONFIG

Label Formatting Commands

BAR

BARCODE

BITMAP

ROW

Binary

GAP 0,0

CLS

PRINT 1,1

BOX

DMATRIX (Supported from V3.19)

ERASE

MAXICODE

PDF417

PUTBMP

PUTPCX

QRCODE

REVERSE

TEXT

Status Polling Commands (RS-232)

~!@ (New command) (Supported from V3.16)

~!A (New command) (Supported from V3.16)

~!C (New command) (Supported from V3.16)

~!D (Supported from V3.19)

~!F

~!I

~!T

Message Translation Protocols

Commands for Windows Driver

File Management Commands

DOWNLOAD

EOP

FILES

KILL

MOVE

RUN

BASIC Commands and Functions

ABS( )

ASC( )

CHR$( )

END

EOF( ) (Updated from V3.19)

OPEN (Updated from V3.19)

READ

SEEK

LOF( )

FREAD$( )

FOR…NEXT LOOP

IF…THEN…ELSE…ENDIF LOOP

GOSUB…RETURN

GOTO

INP$( )

INPUT

REM

OUT

GETKEY( )

INT( )

LEFT$( )

LEN( )

MID$( )

RIGHT$( )

STR$( )

VAL( )

BEEP

Device Reconfiguration Commands

SET COUNTER

SET CUTTER

SET PARTIAL_CUTTER (Supported from V3.18)

SET BACK (Supported from V3.18)

SET KEY1, SET KEY2, SET KEY3

SET LED1, SET LED2, SET LED3

SET PEEL

SET TEAR

SET GAP

SET HEAD

SET RIBBON

SET COM1

SET PRINTKEY (Supported from V3.03)

SET REPRINT (Supported from V3.19)

PEEL

LED1, LED2, LED3

KEY1, KEY2, KEY3

Printer Global Variables

@LABEL

YEAR

MONTH

DATE

WEEK

HOUR

MINUTE

SECOND

@YEAR

@MONTH

@DATE

@DAY

@HOUR

@MINUTE

@SECOND

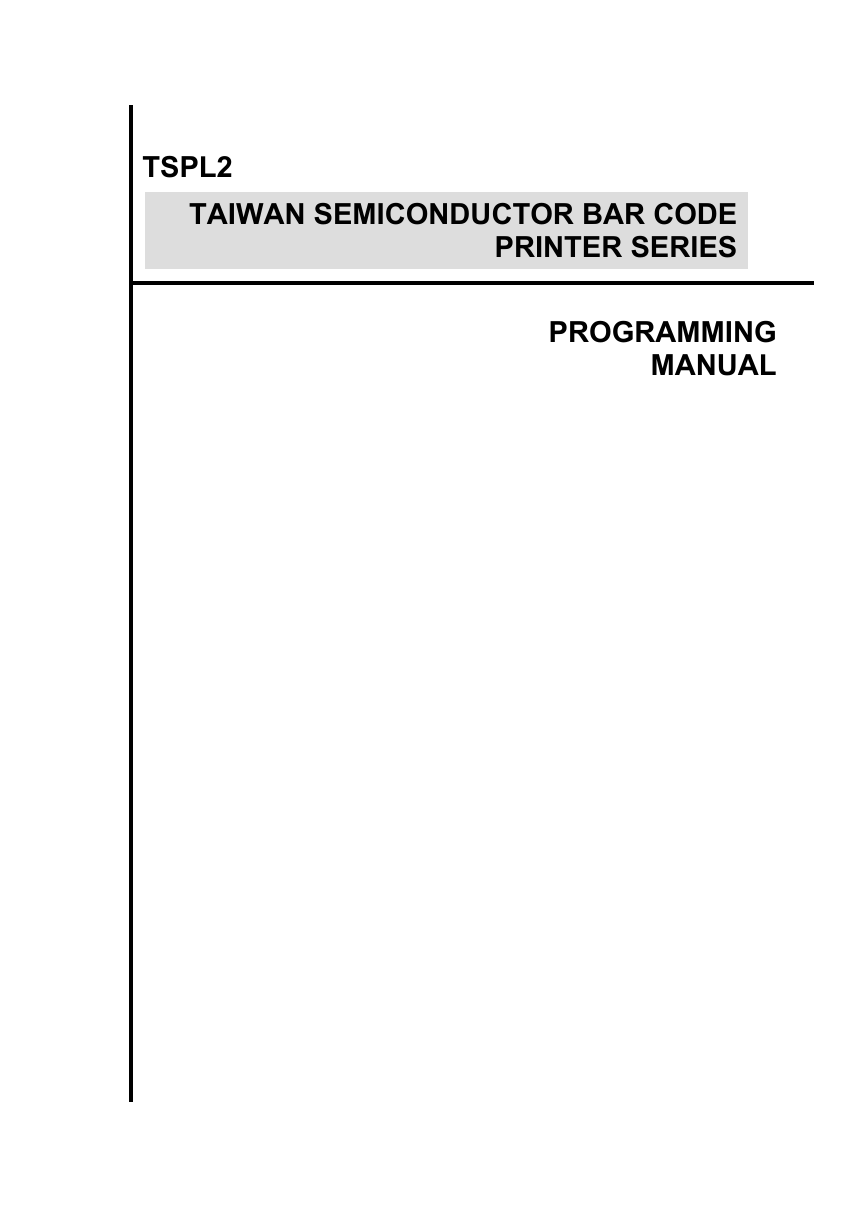

TSPL2 TAIWAN SEMICONDUCTOR BAR CODE PRINTER SERIES PROGRAMMING MANUAL

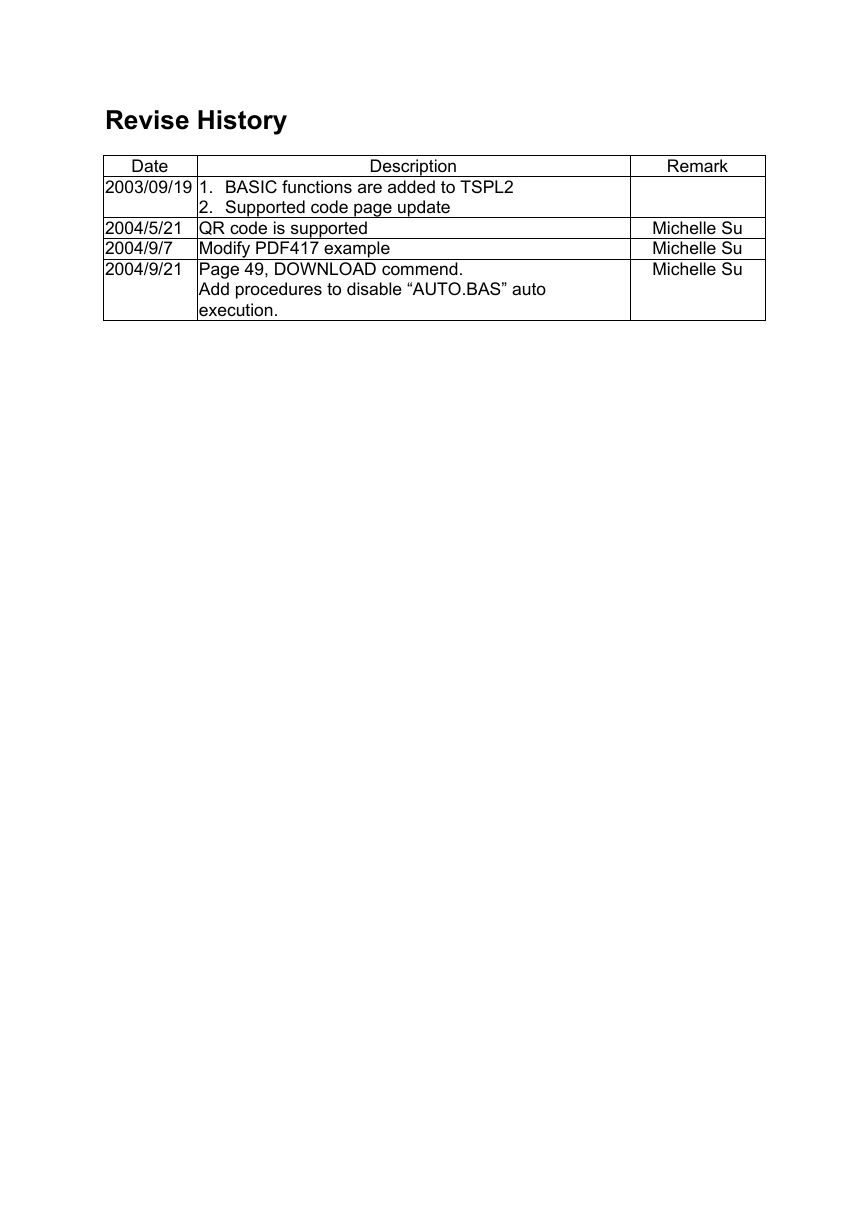

Revise History Date Description 2003/09/19 1. BASIC functions are added to TSPL2 2. Supported code page update 2004/5/21 QR code is supported 2004/9/7 Modify PDF417 example 2004/9/21 Page 49, DOWNLOAD commend. Add procedures to disable “AUTO.BAS” auto execution. Remark Michelle Su Michelle Su Michelle Su

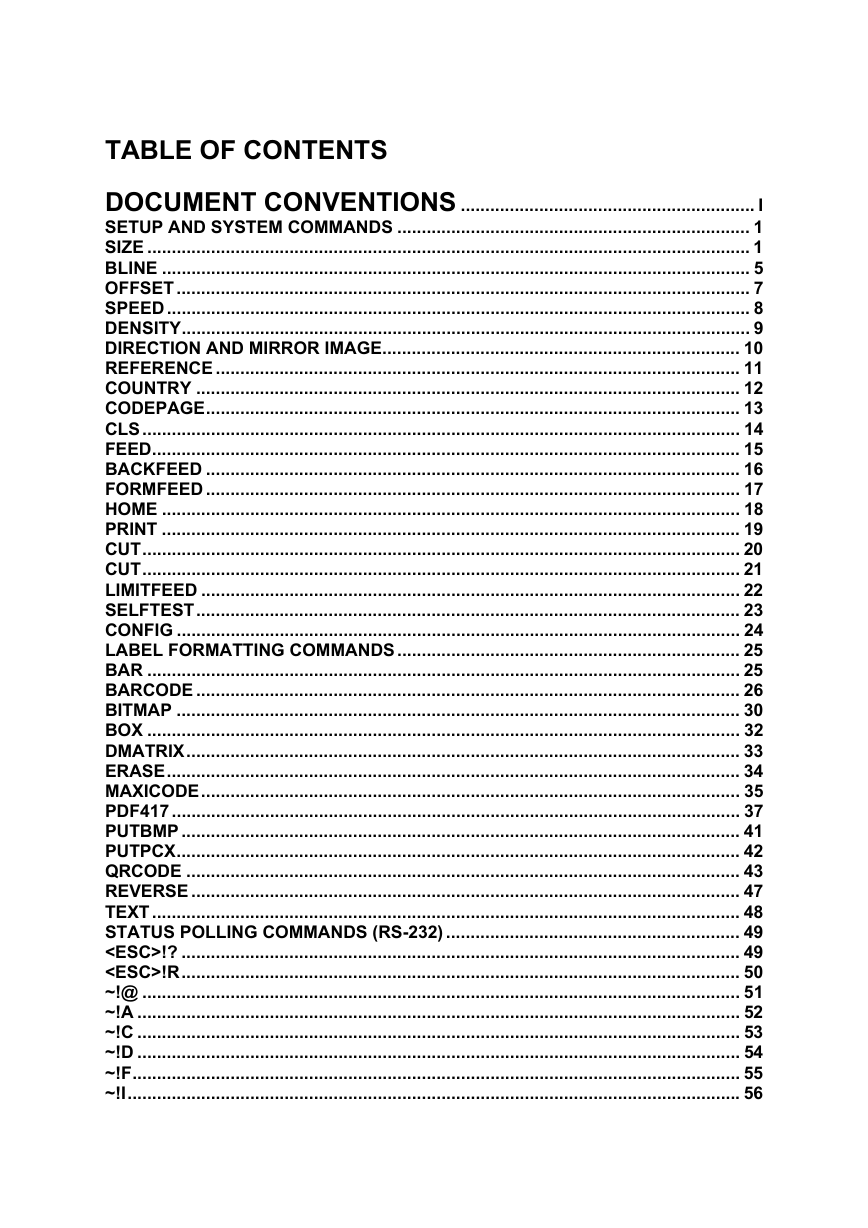

TABLE OF CONTENTS DOCUMENT CONVENTIONS ............................................................ I SETUP AND SYSTEM COMMANDS ........................................................................ 1 SIZE ........................................................................................................................... 1 BLINE ........................................................................................................................ 5 OFFSET ..................................................................................................................... 7 SPEED....................................................................................................................... 8 DENSITY.................................................................................................................... 9 DIRECTION AND MIRROR IMAGE......................................................................... 10 REFERENCE ........................................................................................................... 11 COUNTRY ............................................................................................................... 12 CODEPAGE............................................................................................................. 13 CLS.......................................................................................................................... 14 FEED........................................................................................................................ 15 BACKFEED ............................................................................................................. 16 FORMFEED ............................................................................................................. 17 HOME ...................................................................................................................... 18 PRINT ...................................................................................................................... 19 CUT.......................................................................................................................... 20 CUT.......................................................................................................................... 21 LIMITFEED .............................................................................................................. 22 SELFTEST............................................................................................................... 23 CONFIG ................................................................................................................... 24 LABEL FORMATTING COMMANDS...................................................................... 25 BAR ......................................................................................................................... 25 BARCODE ............................................................................................................... 26 BITMAP ................................................................................................................... 30 BOX ......................................................................................................................... 32 DMATRIX................................................................................................................. 33 ERASE..................................................................................................................... 34 MAXICODE.............................................................................................................. 35 PDF417.................................................................................................................... 37 PUTBMP .................................................................................................................. 41 PUTPCX................................................................................................................... 42 QRCODE ................................................................................................................. 43 REVERSE ................................................................................................................ 47 TEXT........................................................................................................................ 48 STATUS POLLING COMMANDS (RS-232) ............................................................ 49 !? .................................................................................................................. 49 !R.................................................................................................................. 50 ~!@ .......................................................................................................................... 51 ~!A ........................................................................................................................... 52 ~!C ........................................................................................................................... 53 ~!D ........................................................................................................................... 54 ~!F............................................................................................................................ 55 ~!I............................................................................................................................. 56

~!T............................................................................................................................ 57 MESSAGE TRANSLATION PROTOCOLS ............................................................. 58 ~# ............................................................................................................................. 58 COMMANDS FOR WINDOWS DRIVER.................................................................. 59 !B ............................................................................................................................. 59 !J.............................................................................................................................. 60 !N ............................................................................................................................. 61 FILE MANAGEMENT COMMANDS........................................................................ 62 DOWNLOAD............................................................................................................ 62 EOP.......................................................................................................................... 65 FILES....................................................................................................................... 66 KILL ......................................................................................................................... 67 MOVE....................................................................................................................... 68 RUN ......................................................................................................................... 69 BASIC COMMANDS AND FUNCTIONS................................................................. 70 ABS( ) ...................................................................................................................... 70 ASC( ) ...................................................................................................................... 71 CHR$( ).................................................................................................................... 72 END.......................................................................................................................... 73 EOF( ) ...................................................................................................................... 74 OPEN....................................................................................................................... 75 READ....................................................................................................................... 77 SEEK ....................................................................................................................... 79 LOF( )....................................................................................................................... 80 FREAD$( ) ............................................................................................................... 81 FOR…NEXT ............................................................................................................ 82 IF…THEN…ELSE…ENDIF ..................................................................................... 83 GOSUB…RETURN.................................................................................................. 87 GOTO....................................................................................................................... 88 INP$( )...................................................................................................................... 89 INPUT ...................................................................................................................... 90 REM ......................................................................................................................... 91 OUT.......................................................................................................................... 92 GETKEY( ) ............................................................................................................... 93 INT( )........................................................................................................................ 94 LEFT$( )................................................................................................................... 95 LEN( )....................................................................................................................... 96 MID$( ) ..................................................................................................................... 97 RIGHT$( )................................................................................................................. 98 STR$( )..................................................................................................................... 99 VAL( )..................................................................................................................... 100 BEEP ..................................................................................................................... 101 DEVICE RECONFIGURATION COMMANDS ....................................................... 102 SET COUNTER ..................................................................................................... 102 SET CUTTER......................................................................................................... 103 SET PARTIAL_CUTTER ....................................................................................... 104 SET BACK............................................................................................................. 105 SET KEY1, SET KEY2, SET KEY3 ....................................................................... 106 SET LED1, SET LED2, SET LED3........................................................................ 108 SET PEEL.............................................................................................................. 109

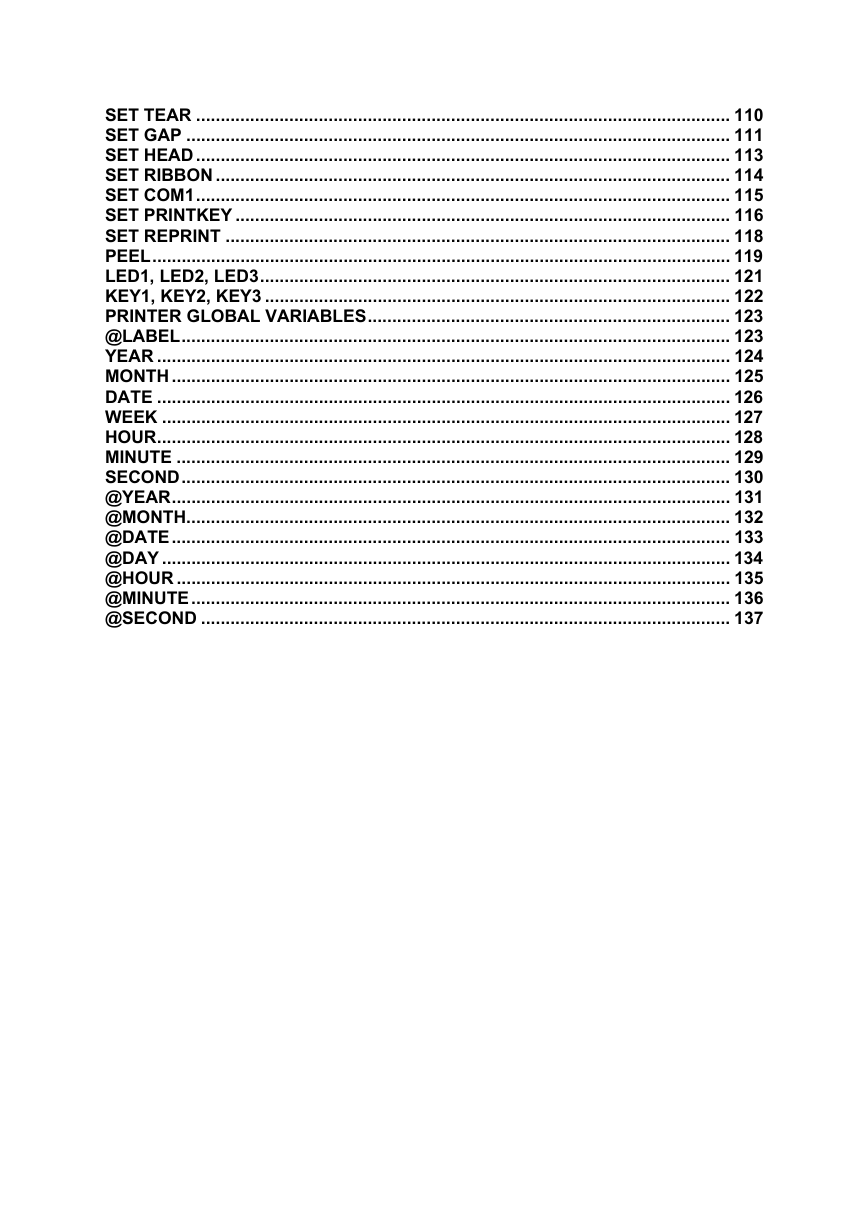

SET TEAR ............................................................................................................. 110 SET GAP ............................................................................................................... 111 SET HEAD ............................................................................................................. 113 SET RIBBON ......................................................................................................... 114 SET COM1............................................................................................................. 115 SET PRINTKEY ..................................................................................................... 116 SET REPRINT ....................................................................................................... 118 PEEL...................................................................................................................... 119 LED1, LED2, LED3................................................................................................ 121 KEY1, KEY2, KEY3 ............................................................................................... 122 PRINTER GLOBAL VARIABLES.......................................................................... 123 @LABEL................................................................................................................ 123 YEAR ..................................................................................................................... 124 MONTH.................................................................................................................. 125 DATE ..................................................................................................................... 126 WEEK .................................................................................................................... 127 HOUR..................................................................................................................... 128 MINUTE ................................................................................................................. 129 SECOND................................................................................................................ 130 @YEAR.................................................................................................................. 131 @MONTH............................................................................................................... 132 @DATE.................................................................................................................. 133 @DAY .................................................................................................................... 134 @HOUR ................................................................................................................. 135 @MINUTE.............................................................................................................. 136 @SECOND ............................................................................................................ 137

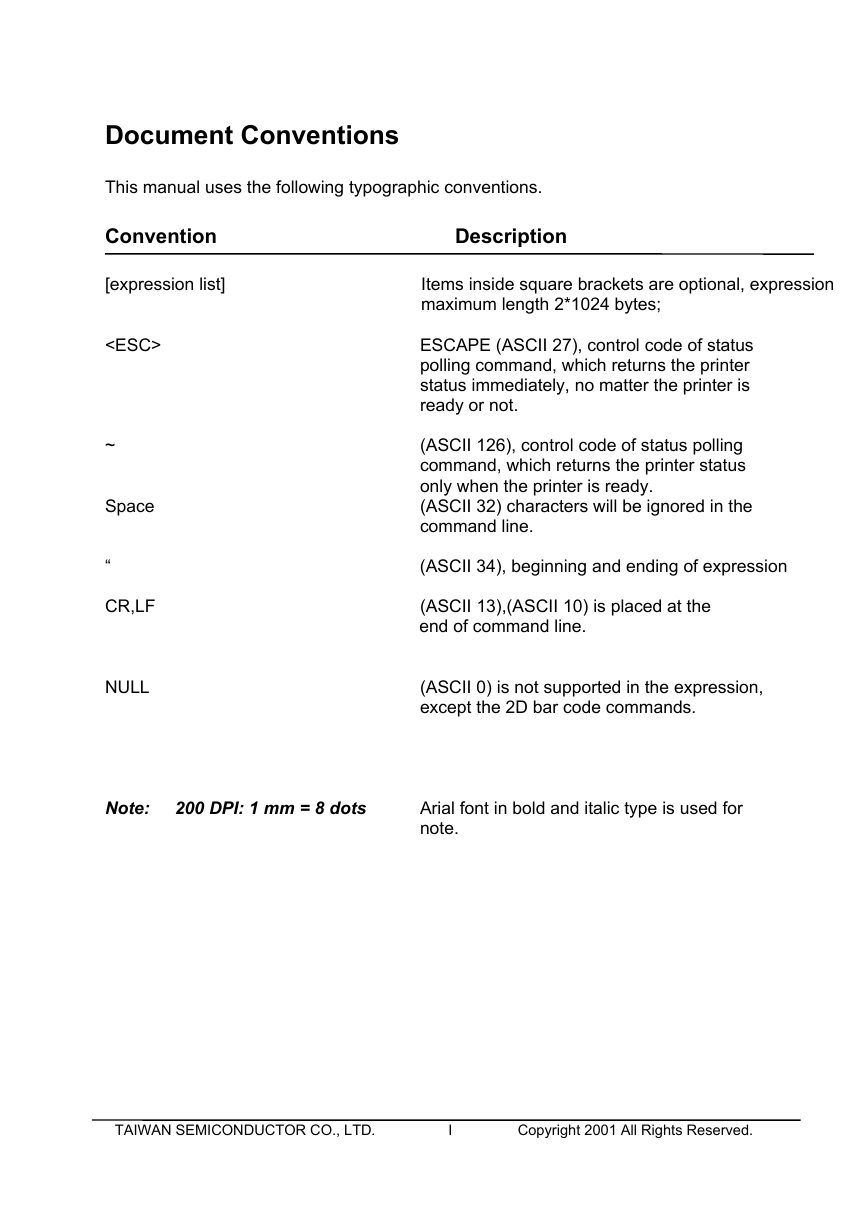

Document Conventions This manual uses the following typographic conventions. Convention [expression list] Description Items inside square brackets are optional, expression maximum length 2*1024 bytes; ~ Space “ CR,LF NULL Note: 200 DPI: 1 mm = 8 dots ESCAPE (ASCII 27), control code of status polling command, which returns the printer status immediately, no matter the printer is ready or not. (ASCII 126), control code of status polling command, which returns the printer status only when the printer is ready. (ASCII 32) characters will be ignored in the command line. (ASCII 34), beginning and ending of expression (ASCII 13),(ASCII 10) is placed at the end of command line. (ASCII 0) is not supported in the expression, except the 2D bar code commands. Arial font in bold and italic type is used for note. TAIWAN SEMICONDUCTOR CO., LTD. I Copyright 2001 All Rights Reserved.

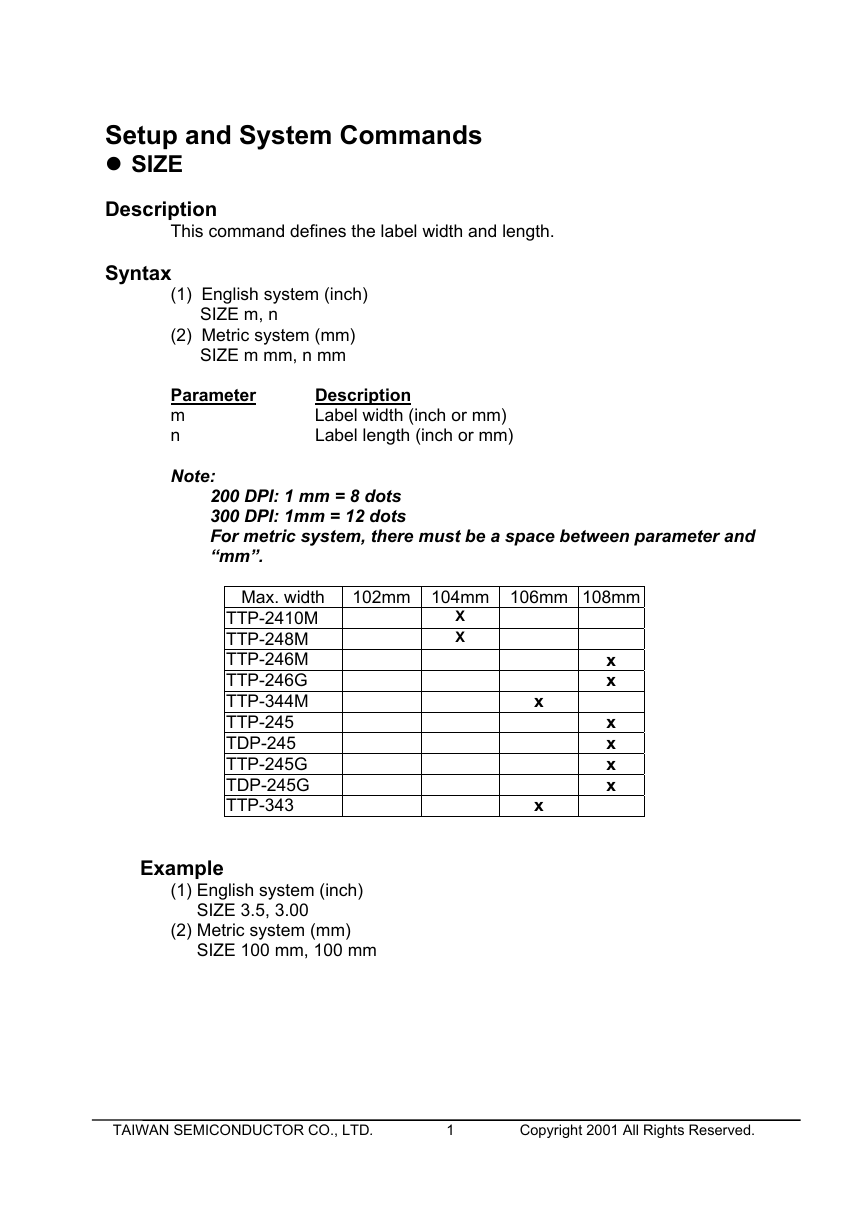

Setup and System Commands SIZE Description This command defines the label width and length. Syntax (1) English system (inch) SIZE m, n (2) Metric system (mm) SIZE m mm, n mm Parameter m n Description Label width (inch or mm) Label length (inch or mm) Note: 200 DPI: 1 mm = 8 dots 300 DPI: 1mm = 12 dots For metric system, there must be a space between parameter and “mm”. 102mm 104mm 106mm 108mm Max. width TTP-2410M TTP-248M TTP-246M TTP-246G TTP-344M TTP-245 TDP-245 TTP-245G TDP-245G TTP-343 X X x x x x x x x x Example (1) English system (inch) SIZE 3.5, 3.00 (2) Metric system (mm) SIZE 100 mm, 100 mm TAIWAN SEMICONDUCTOR CO., LTD. 1 Copyright 2001 All Rights Reserved.
