OPERATION MANUAL
IMPORTANT
For your assistance in reporting the loss or theft of your
Color LCD Projector, please record the Serial Number
located on the bottom of the projector and retain this
information. Before recycling the packaging, please be
sure that you have checked the contents of the carton
thoroughly against the list of “Supplied Accessories”
on page 10.
ENGLISH
Model No.: XV-Z7000U
Serial No.:
There are two important reasons for prompt warranty registration of your new SHARP LCD Projector,
using the REGISTRATION CARD packed with the projector.
1. WARRANTY
This is to assure that you immediately receive the full benefit of the parts, service and labor
warranty applicable to your purchase.
2. CONSUMER PRODUCT SAFETY ACT
To ensure that you will promptly receive any safety notification of inspection, modification, or
recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE
READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.
U.S.A. ONLY
WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially
careful that children do not stare directly into the beam of light.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture.
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT REMOVE SCREWS
EXCEPT SPECIFIED USER
SERVICE SCREW.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER.
NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk or electric shock to
persons.
The exclamation point within a triangle is
intended to alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the product.
WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this equip-
ment.
U.S.A. ONLY
The enclosed computer cable must be used with the device. The cable is provided to ensure that the device
complies with FCC Rules.
U.S.A. ONLY
PRODUCT DISPOSAL
This product utilizes tin-lead solder, and high intensity discharge lamp (HID lamp) containing a small amount of
mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eiae.org .
E-1
INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter-
ference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
I
E
I
N
n
m
f
o
G
p
r
m
o
L
r
a
t
a
t
I
i
n
S
o
t
n
H
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
U.S.A. ONLY

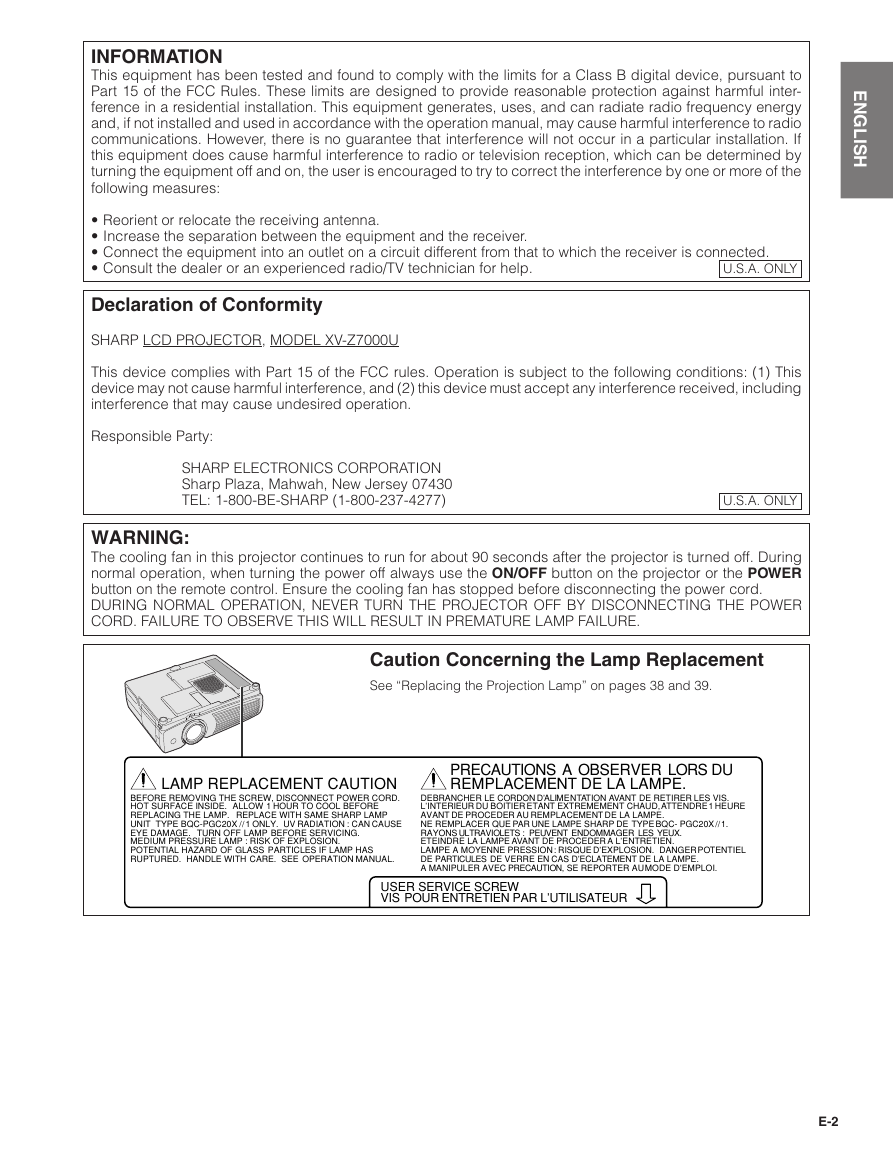

Declaration of Conformity
SHARP LCD PROJECTOR, MODEL XV-Z7000U
This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party:
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430
TEL: 1-800-BE-SHARP (1-800-237-4277)
U.S.A. ONLY
WARNING:
The cooling fan in this projector continues to run for about 90 seconds after the projector is turned off. During
normal operation, when turning the power off always use the ON/OFF button on the projector or the POWER
button on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord.
DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER
CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.
Caution Concerning the Lamp Replacement
See “Replacing the Projection Lamp” on pages 38 and 39.
LAMP REPLACEMENT CAUTION
BEFORE REMOVING THE SCREW, DISCONNECT POWER CORD.
HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL BEFORE
REPLACING THE LAMP. REPLACE WITH SAME SHARP LAMP
UNIT TYPE BQC-PGC20X // 1 ONLY. UV RADIATION : CAN CAUSE
EYE DAMAGE. TURN OFF LAMP BEFORE SERVICING.
MEDIUM PRESSURE LAMP : RISK OF EXPLOSION.
POTENTIAL HAZARD OF GLASS PARTICLES IF LAMP HAS
RUPTURED. HANDLE WITH CARE. SEE OPERATION MANUAL.
PRECAUTIONS A OBSERVER LORS DU
REMPLACEMENT DE LA LAMPE.
DEBRANCHER LE CORDON D’ALIMENTATION AVANT DE RETIRER LES VIS.
L’INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD, ATTENDRE 1 HEURE
AVANT DE PROCEDER AU REMPLACEMENT DE LA LAMPE.
NE REMPLACER QUE PAR UNE LAMPE SHARP DE TYPE BQC- PGC20X //1.
RAYONS ULTRAVIOLETS : PEUVENT ENDOMMAGER LES YEUX.
ETEINDRE LA LAMPE AVANT DE PROCEDER A L’ENTRETIEN.
LAMPE A MOYENNE PRESSION : RISQUE D’EXPLOSION. DANGER POTENTIEL
DE PARTICULES DE VERRE EN CAS D’ECLATEMENT DE LA LAMPE.
A MANIPULER AVEC PRECAUTION, SE REPORTER AU MODE D’EMPLOI.
USER SERVICE SCREW
VIS POUR ENTRETIEN PAR L’UTILISATEUR
E-2
IMPORTANT SAFEGUARDS
Electrical energy can perform many useful functions. This product has been engineered and manufactured to ensure your
personal safety. However IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order
not to defeat the safeguards incorporated into this LCD Projector, observe the following basic rules for its installation, use and
servicing. For your own protection and reliable usage of your LCD Projector, please be sure to read these “IMPORTANT
SAFEGUARDS” carefully before use.
t
n
a
t
r
o
p
m
I
n
o
i
t
a
m
r
o
f
n
I
1. Read Instructions
All the safety and operating instructions should be read
before the product is operated.
2. Retain Instructions
The safety and operating instructions should be retained
for future reference.
3. Heed Warnings
All warnings on the product and in the operating
instructions should be adhered to.
4. Follow Instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
6. Attachments
Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
7. Water and Moisture
Do not use this product near water–for example, near a
bathtub, wash bowl, kitchen sink, or laundry tub; in a wet
basement; or near a swimming pool; and the like.
8. Accessories
Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing
serious injury to a child or adult, and serious damage to
the product. Use only with a cart, stand, tripod, bracket,
or table recommended by the manufacturer, or sold with
the product. Any mounting of the product should follow
the manufacturer’s instructions, and should use a
mounting accessory recommended by the manufacturer.
9. Transportation
A product and cart combination
should be moved with care. Quick
stops, excessive force, and
uneven surfaces may cause the
product and cart combination to
overturn.
10. Ventilation
Slots and openings in the cabinet are provided for
ventilation to ensure reliable operation of the product and
to protect it from overheating. The openings should never
be covered or blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should
not be placed in a built-in installation such as a bookcase
or rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
11. Power Sources
This product should be operated only from the type of
power source indicated on the marking label. If you are
not sure of the type of power supply to your home, consult
your product dealer or local power company. For products
intended to operate from battery power, or other sources,
refer to the operating instructions.
12. Grounding or Polarization
This product is equipped with a three-wire grounding-type
plug, a plug having a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This is a safety
feature. If you are unable to insert the plug into the outlet,
contact your electrician to replace your obsolete outlet.
Do not defeat the safety purpose of the grounding-type
plug.
E-3
13. Power-Cord Protection
Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they
exit from the product.
14. Lightning
For added protection for this product during a lightning
storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and
disconnect the power cord. This will prevent damage to
the product due to lightning and power-line surges.
15. Overloading
Do not overload wall outlets, extension cords, or integral
convenience receptacles as this can result in a risk of fire
or electric shock.
16. Object and Liquid Entry
Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
17. Servicing
Do not attempt to service this product yourself as opening
or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service
personnel.
18. Damage Requiring Service
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following
conditions:
a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into
the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following
the operating instructions. Adjust only those controls
that are covered by the operating instructions, as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to normal
operation.
e. If the product has been dropped or damaged in any
way.
f. If the product exhibits a distinct change in
performance, this indicates a need for service.
19. Replacement Parts
When replacement parts are required, be sure the service
technician has used replacement parts specified by the
manufacturer or with the same characteristics as the
original part. Unauthorized substitutions may result in fire,
electric shock, or other hazards.
20. Safety Check
Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to
determine that the product is in proper operating
condition.
21. Wall or Ceiling Mounting
This product should be mounted to a wall or ceiling only
as recommended by the manufacturer.
22. Heat
This product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
I
n
f
o
r
m
a
t
i
o
n
I
m
p
o
r
t
a
n
t
Outstanding Features
1. FOR USE WITH DTV
Allows projection of DTV images and 16:9 wide-screen images when connected to a DTV decoder or similar video systems.
(Page 11)
2. ADVANCED VIDEO CIRCUITRY
Provides high quality images with minimal dot crawl and cross color noise.
3. 3D DIGITAL UNIFORMITY
Equipped with new 3D digital uniformity technology for a clearer, more uniform image.
4. ACTIVE DIGITAL KEYSTONE CORRECTION
Corrects keystone distortion caused when the projected image is not perpendicular to the screen. This method provides not
only horizontal correction, but vertical as well, thus maintaining the original 4:3 aspect ratio and eliminating jag lines. (Page 19)
5. EASY-TO-USE GRAPHICAL USER INTERFACE (GUI)
A multi-color menu system allows for simple image adjustments. (Page 20)
6. NEW PROGRESSIVE MODE AND FILM MODE
Optimizes the image by converting the interlaced signal to the progressive. Useful for displaying slow-moving images or still
images. Four modes are available. (Page 25)
7. COLOR TEMPERATURE ADJUSTMENT
The function can be used to adjust the color temperature to suit the type of image input to the projector. (Page 29)
8. GAMMA CORRECTION FUNCTION
The gamma value setting can be adjusted according to the input source for optimal image contrast. (Page 30)
9. WIDESCREEN IMAGES
Allows projection of DVD, DTV and other anamorphic images recorded in widescreen format with a 16:9 aspect ratio. (Page
31)
10. BRIGHTNESS SWITCHOVER FUNCTION
Function with toggle switch to control the quantity of projected light. Select “ON” or “OFF” to decrease or increase brightness,
power consumption and fan noise. (Page 33)
11.ANALOG COMPONENT VIDEO INPUT
Utilizes a component video input signal (Y, PB, PR). The video signal is input as separate components to provide superior color
and image quality.
12. DIRECT COMPUTER COMPATIBILITY
A multi-scan RGB input accepts signals from VGA (640 dots ⳯ 480 lines) and Macintosh (from 13ⴖ) compatible computers
without the need for any additional hardware.
For SHARP Assistance (U.S.A. only)
If you encounter any problems during setup or operation of this projector, first take a look at the section
“Troubleshooting” on page 40. If this operation manual does not answer your question, please call toll free 1-877-
DTV-SHARP (1-877-388-7427) for further assistance. Or, send us an e-mail at lcdsupport@sharpsec.com .
Our World Wide Web address is http://www.sharp-usa.com/ .
E-4
Contents
Important Information
Useful Features
IMPORTANT SAFEGUARDS …………………… 3
Outstanding Features …………………………… 4
For SHARP Assistance (U.S.A. only) ………… 4
Contents …………………………………………… 5
Usage Guidelines ………………………………… 6
Part Names ………………………………………… 7
Setup & Connections
Supplied Accessories …………………………… 10
Connecting the Projector ……………………… 11
Operation
Basic Operations ………………………………… 15
Setting up the Screen …………………………… 17
Using the GUI (Graphical User Interface)
Menu Screens ………………………………… 20
Selecting the On-screen Display Language … 23
Selecting the Video Input System Mode
(S-VIDEO or VIDEO mode only) …………… 23
Picture Adjustments ……………………………… 24
Adjusting the Picture …………………………… 24
Selecting the Signal Type ……………………… 25
Progressive Mode ……………………………… 25
Computer Image Adjustments
(INPUT 2 (RGB) mode only) ………………… 26
Auto Sync Adjustment ………………………… 26
Adjusting the Computer Image ……………… 27
Freeze Function …………………………………… 28
Adjusting the Color Temperature ……………… 29
Gamma Correction ……………………………… 30
Selecting the Picture Display Mode …………… 31
Checking the Input Signal
and the Lamp Usage Time …………………… 32
Automatic Power Shutoff Function …………… 32
Selecting a Background Image ………………… 33
Theater Mode Function ………………………… 33
Reverse/Invert Image Function ………………… 34
Special Mode Adjustment ……………………… 34
Maintenance & Troubleshooting
Air Filter Maintenance …………………………… 35
Lamp/Maintenance Indicators ………………… 37
Replacing the Projection Lamp ………………… 38
Using the Kensington Lock …………………… 40
Troubleshooting …………………………………… 40
Appendix
Attaching the Lens Cap ………………………… 41
Connection Pin Assignments…………………… 42
RS-232C Port Specifications …………………… 43
Computer Compatibility Chart ………………… 45
Specifications ……………………………………… 46
Dimensions ………………………………………… 47
Glossary …………………………………………… 48
t
n
a
t
r
o
p
m
I
n
o
i
t
a
m
r
o
f
n
I
s
n
o
i
t
c
e
n
n
o
C
&
p
u
t
e
S
n
o
i
t
a
r
e
p
O
s
e
r
u
t
a
e
F
l
u
f
e
s
U
&
e
c
n
a
n
e
t
n
i
a
M
g
n
i
t
o
o
h
s
e
l
b
u
o
r
T
x
i
d
n
e
p
p
A
E-5
I
n
f
o
r
m
a
t
i
o
n
I
m
p
o
r
t
a
n
t
Usage Guidelines
Caution Concerning the Lamp Unit
Potential hazard of glass particles if lamp ruptures. Please have the nearest
Authorized SharpVision Service Center or Dealer replace lamp if rupture occurs.
See “Replacing the Projection Lamp” on pages 38 and 39.
C AUT I ON
A T T E NT I ON
BQC-PGC20X//1
95˚F
(Ⳮ35˚C)
41˚F
(Ⳮ5˚C)
Cautions Concerning the Setup of the Projector
For minimal servicing and to maintain high image quality, SHARP recommends
that this projector be installed in an area free from humidity, dust and cigarette
smoke. When the projector is subjected to these environments, the lens and filter
must be cleaned more often. Periodically the filter should be replaced and the
projector should be cleaned internally. As long as the projector is properly
maintained in this manner, use in these environments will not reduce the overall
operation life. Please note that all internal cleaning must be performed by the
nearest Authorized SharpVision Service Center or Dealer.
• Do not expose the projector to extreme heat or cold.
Operating temperature: 41°F to 95°F (Ⳮ5°C to Ⳮ35°C)
Storage temperature: ⳮ4°F to 140°F (ⳮ20°C to Ⳮ60°C)
Notes on Operation
• The mark shown on the left calls the user’s attention to a part of the projector
that emits intense heat during operation.
• The exhaust vent, the lamp cage cover and adjacent areas may be extremely
hot during projector operation. To prevent injury, do not touch these areas until
they have sufficiently cooled.
• Allow at least 4 inches (10 cm) of space between the cooling fan (exhaust
vent) and the nearest wall or obstruction.
• If the cooling fan becomes obstructed, a protection device will automatically
turn off the projector lamp. This does not indicate a malfunction. Remove the
projector power cord from the wall outlet and wait at least 10 minutes. Then
turn on the power by plugging the power cord back in. This will return the
projector to the normal operating condition.
Temperature Monitor Function
If the projector starts to overheat due to setup problems or a dirty air filter, “TEMP.”
will appear in the lower-left corner of the picture. If the temperature continues to
rise, the lamp will turn off, the TEMPERATURE WARNING indicator on the projector
will flash, and after a 90-second cooling-off period the power will shut off. Refer
to “Lamp/Maintenance Indicators” on page 37, for details.
• The cooling fan regulates the internal temperature, and its performance is automatically
controlled. The sound of the fan may change during projector operation due to changes
in the fan speed.
Lamp Monitor Function
When the projector is turned on after the lamp has been used for 900 hours,
“LAMP” will appear in the lower-left corner of the picture to advise you to replace
the lamp. See pages 38 and 39 for lamp replacement. If the lamp has been used
for 1,000 hours, the projector power will automatically turn off and the projector
will enter standby mode. Refer to “Lamp/Maintenance Indicators” on page 37,
for details.
E-6
t
n
a
t
r
o
p
m
I
n
o
i
t
a
m
r
o
f
n
I
Part Names
Numbers next to the part names refer to the main pages in this manual where the topic is explained.
ON/OFF
LAMP
POWER
TEMP.
KEYSTONE
INPUT
PICT MODE
BACK
ENTER
MENU
Projector
Front and Top View
ON/OFF button
15
POWER indicator
INPUT/BACK button
KEYSTONE/Adjustment
(∂/ƒ) buttons
ZOOM knob
15
16
20
19
20
15
FOCUS ring
15
Cooling fan (Exhaust vent)
6
Foot releases
18
Side and Rear View
37
37
31
20
20
35
9
41
LAMP REPLACEMENT
indicator
TEMPERATURE WARNING
indicator
PICT MODE/ENTER button
MENU button
Air filter/Cooling fan
(Intake vent)
Speaker
Remote control sensor
Eyelet for
lens cap strap
40
Kensington Security
Standard connector
11
AC socket
9
Remote control sensor
S-VIDEO
INPUT
VIDEO
INPUT
AUDIO INPUT
(S-VIDEO, VIDEO INPUT)
L
R
RS-232C
INPUT 1
Y
/COMPONENT AUDIO INPUT
(INPUT 1, 2)
PB
PR
INPUT 2
RGB /COMPONENT
S-VIDEO INPUT terminal
(4-pin Mini DIN)
VIDEO INPUT terminal
(RCA)
AUDIO INPUT
(S-VIDEO, VIDEO INPUT)
terminals (RCA)
11
11
11
E-7
12
12
12
14
INPUT 2
RGB/COMPONENT port
(HD 15)
AUDIO INPUT (INPUT 1, 2)
terminal
(3.5 mm stereo minijack)
INPUT 1/COMPONENT
terminals (RCA: Y, PB, PR)
RS-232C port
(9-pin Mini DIN)
Part Names
Remote Control
Front View
Top View
VOLUME buttons
16
15
POWER button
Remote control
signal transmitter
MUTE button
16
VOL
POWER
20
BACK button
I
n
f
o
r
m
a
t
i
o
n
I
m
p
o
r
t
a
n
t
Mouse (∂/ƒ)/
Adjustment (∂/ƒ)
buttons
RGB/COMPONENT
button
20
12
MUTE
BACK
MENU
ENTER
INPUT 1 button
16
INPUT 1
RGB/
COMPONENT
PICT MODE
INPUT 2
AUTO SYNC
GAMMA
S-VIDEO
CLR TEMP
VIDEO
KEYSTONE
FREEZE
INPUT 2 button
16
S-VIDEO button
16
VIDEO button
16
KEYSTONE buttons
19
Inserting the Batteries
1
Slide in the direction of
the arrow to remove the
battery cover.
20
20
26
31
30
29
28
MENU button
ENTER button
AUTO SYNC button
PICT MODE button
GAMMA button
CLR TEMP button
FREEZE button
2 Insert two AAA size
batteries, making sure
their polarities match the
ⴐ and ⴑ marks inside
the battery compartment.
3
Insert the side tabs of
the battery cover into
their slots and press the
cover in until it is
properly seated.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• If you will not be using the remote control for a long time, remove the batteries.
• Do not mix new and old or different types of batteries.
• There are operations that can only be carried out by remote control. Handle the remote control carefully.
E-8
相关推荐
2023年江西萍乡中考道德与法治真题及答案.doc
2012年重庆南川中考生物真题及答案.doc
2013年江西师范大学地理学综合及文艺理论基础考研真题.doc
2020年四川甘孜小升初语文真题及答案I卷.doc
2020年注册岩土工程师专业基础考试真题及答案.doc
2023-2024学年福建省厦门市九年级上学期数学月考试题及答案.doc
2021-2022学年辽宁省沈阳市大东区九年级上学期语文期末试题及答案.doc
2022-2023学年北京东城区初三第一学期物理期末试卷及答案.doc
2018上半年江西教师资格初中地理学科知识与教学能力真题及答案.doc
2012年河北国家公务员申论考试真题及答案-省级.doc
2020-2021学年江苏省扬州市江都区邵樊片九年级上学期数学第一次质量检测试题及答案.doc
2022下半年黑龙江教师资格证中学综合素质真题及答案.doc
