3-227-098-32 (1) FM/MW/SW Cassette Car Stereo Operating Instructions Manual de instrucciones Şүz GB ES CT For installation and connections, see the supplied installation/connections manual. Para obtener información sobre la instalación y las conexiones, consulte el manual de instalación/conexiones suministrado. ௒҈|଼ּÔdů ଼ Ôүz XR-CA620X © 2001 Sony Corporation

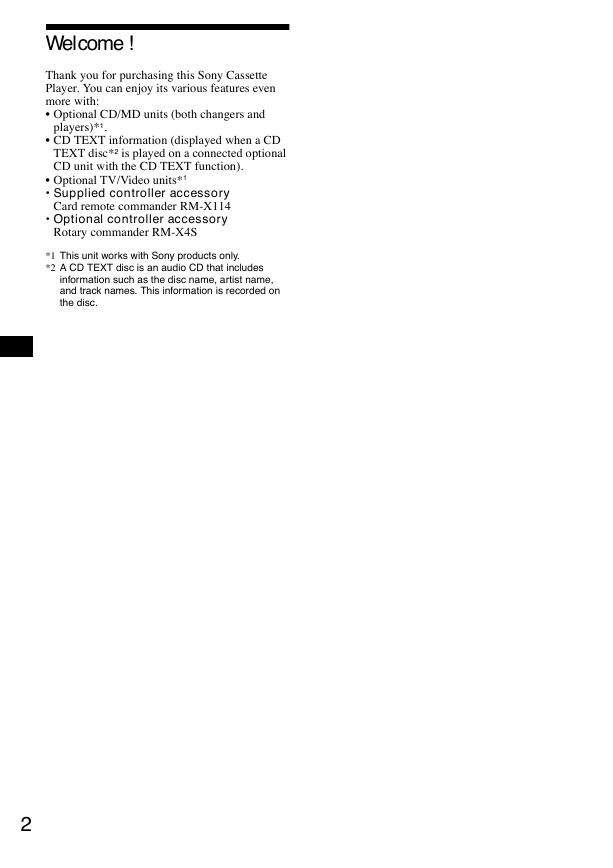

Welcome ! Thank you for purchasing this Sony Cassette Player. You can enjoy its various features even more with: Optional CD/MD units (both changers and players)*1. CD TEXT information (displayed when a CD TEXT disc*2 is played on a connected optional CD unit with the CD TEXT function). Optional TV/Video units*1 • Supplied controller accessory Card remote commander RM-X114 Optional controller accessory Rotary commander RM-X4S *1 This unit works with Sony products only. *2 A CD TEXT disc is an audio CD that includes information such as the disc name, artist name, and track names. This information is recorded on the disc. 2

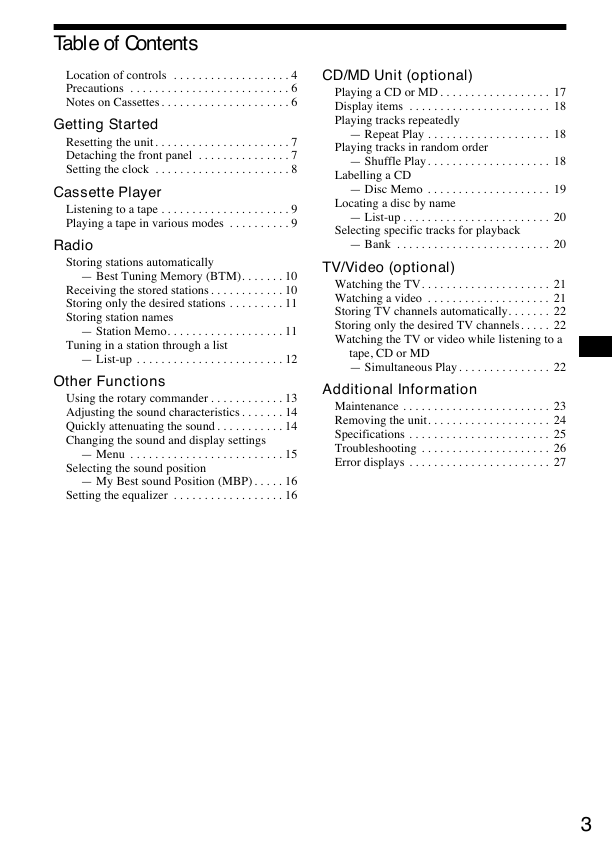

Table of Contents Location of controls . . . . . . . . . . . . . . . . . . . 4 Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Notes on Cassettes . . . . . . . . . . . . . . . . . . . . . 6 Getting Started Resetting the unit. . . . . . . . . . . . . . . . . . . . . . 7 Detaching the front panel . . . . . . . . . . . . . . . 7 Setting the clock . . . . . . . . . . . . . . . . . . . . . . 8 Cassette Player Listening to a tape . . . . . . . . . . . . . . . . . . . . . 9 Playing a tape in various modes . . . . . . . . . . 9 Radio Storing stations automatically — Best Tuning Memory (BTM). . . . . . . 10 Receiving the stored stations . . . . . . . . . . . . 10 Storing only the desired stations . . . . . . . . . 11 Storing station names — Station Memo. . . . . . . . . . . . . . . . . . . 11 Tuning in a station through a list — List-up . . . . . . . . . . . . . . . . . . . . . . . . 12 Other Functions Using the rotary commander . . . . . . . . . . . . 13 Adjusting the sound characteristics . . . . . . . 14 Quickly attenuating the sound . . . . . . . . . . . 14 Changing the sound and display settings — Menu . . . . . . . . . . . . . . . . . . . . . . . . . 15 Selecting the sound position — My Best sound Position (MBP) . . . . . 16 Setting the equalizer . . . . . . . . . . . . . . . . . . 16 CD/MD Unit (optional) Playing a CD or MD . . . . . . . . . . . . . . . . . . 17 Display items . . . . . . . . . . . . . . . . . . . . . . . 18 Playing tracks repeatedly — Repeat Play . . . . . . . . . . . . . . . . . . . . 18 Playing tracks in random order — Shuffle Play. . . . . . . . . . . . . . . . . . . . 18 Labelling a CD — Disc Memo . . . . . . . . . . . . . . . . . . . . 19 Locating a disc by name — List-up . . . . . . . . . . . . . . . . . . . . . . . . 20 Selecting specific tracks for playback — Bank . . . . . . . . . . . . . . . . . . . . . . . . . 20 TV/Video (optional) Watching the TV. . . . . . . . . . . . . . . . . . . . . 21 Watching a video . . . . . . . . . . . . . . . . . . . . 21 Storing TV channels automatically. . . . . . . 22 Storing only the desired TV channels. . . . . 22 Watching the TV or video while listening to a tape, CD or MD — Simultaneous Play . . . . . . . . . . . . . . . 22 Additional Information Maintenance . . . . . . . . . . . . . . . . . . . . . . . . 23 Removing the unit. . . . . . . . . . . . . . . . . . . . 24 Specifications . . . . . . . . . . . . . . . . . . . . . . . 25 Troubleshooting . . . . . . . . . . . . . . . . . . . . . 26 Error displays . . . . . . . . . . . . . . . . . . . . . . . 27 3

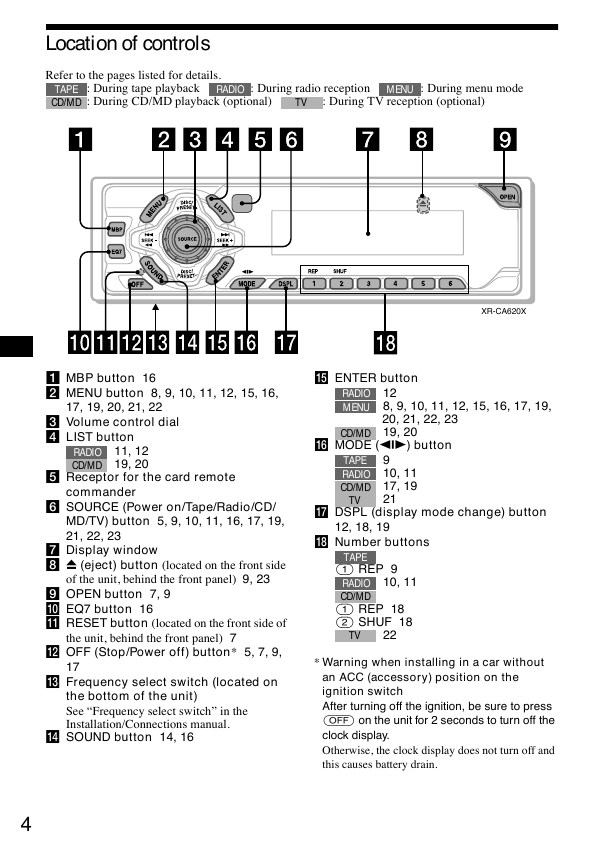

Location of controls Refer to the pages listed for details. TAPE CD/MD : During tape playback : During CD/MD playback (optional) RADIO : During radio reception MENU : During menu mode TV : During TV reception (optional) XR-CA620X o ENTER button RADIO MENU CD/MD 12 8, 9, 10, 11, 12, 15, 16, 17, 19, 20, 21, 22, 23 19, 20 p MODE (o) button TAPE RADIO CD/MD TV 9 10, 11 17, 19 21 q DSPL (display mode change) button 12, 18, 19 r Number buttons TAPE (1) REP 9 10, 11 RADIO CD/MD (1) REP 18 (2) SHUF 18 TV 22 * Warning when installing in a car without an ACC (accessory) position on the ignition switch After turning off the ignition, be sure to press (OFF) on the unit for 2 seconds to turn off the clock display. Otherwise, the clock display does not turn off and this causes battery drain. a MBP button 16 b MENU button 8, 9, 10, 11, 12, 15, 16, 17, 19, 20, 21, 22 c Volume control dial d LIST button RADIO CD/MD 11, 12 19, 20 commander e Receptor for the card remote f SOURCE (Power on/Tape/Radio/CD/ MD/TV) button 5, 9, 10, 11, 16, 17, 19, 21, 22, 23 g Display window h Z (eject) button (located on the front side of the unit, behind the front panel) 9, 23 i OPEN button 7, 9 j EQ7 button 16 k RESET button (located on the front side of the unit, behind the front panel) 7 l OFF (Stop/Power off) button* 5, 7, 9, 17 m Frequency select switch (located on the bottom of the unit) See “Frequency select switch” in the Installation/Connections manual. n SOUND button 14, 16 4

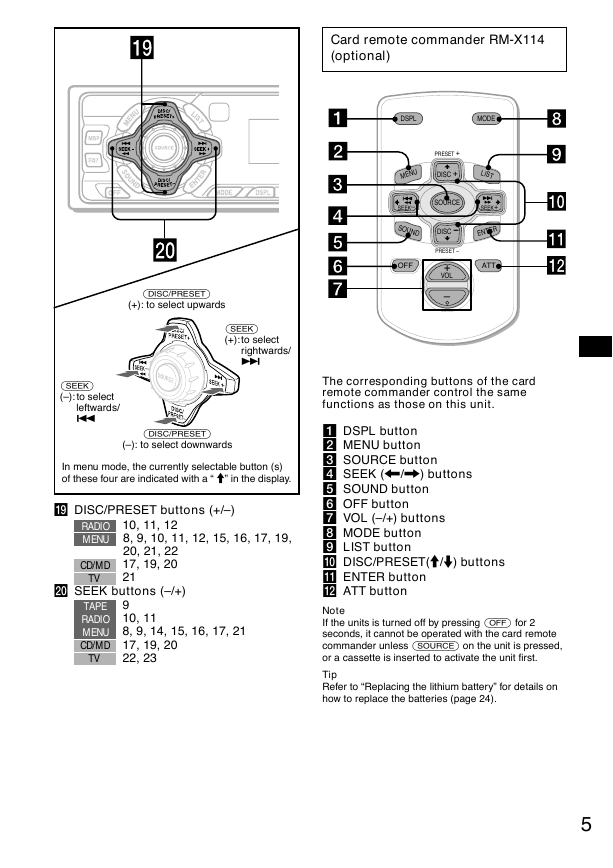

(DISC/PRESET) (+): to select upwards (SEEK) (+):to select rightwards/ > (SEEK) (–): to select leftwards/ . (DISC/PRESET) (–): to select downwards In menu mode, the currently selectable button (s) of these four are indicated with a “ M” in the display. s DISC/PRESET buttons (+/–) RADIO MENU CD/MD TV 10, 11, 12 8, 9, 10, 11, 12, 15, 16, 17, 19, 20, 21, 22 17, 19, 20 21 t SEEK buttons (–/+) TAPE RADIO MENU CD/MD TV 9 10, 11 8, 9, 14, 15, 16, 17, 21 17, 19, 20 22, 23 Card remote commander RM-X114 (optional) DSPL MODE PRESET + M E N U DISC + LIST SEEK+ E N T E R ATT SEEK– SOURCE SOUND DISC – OFF PRESET – + VOL – The corresponding buttons of the card remote commander control the same functions as those on this unit. a DSPL button b MENU button c SOURCE button d SEEK (

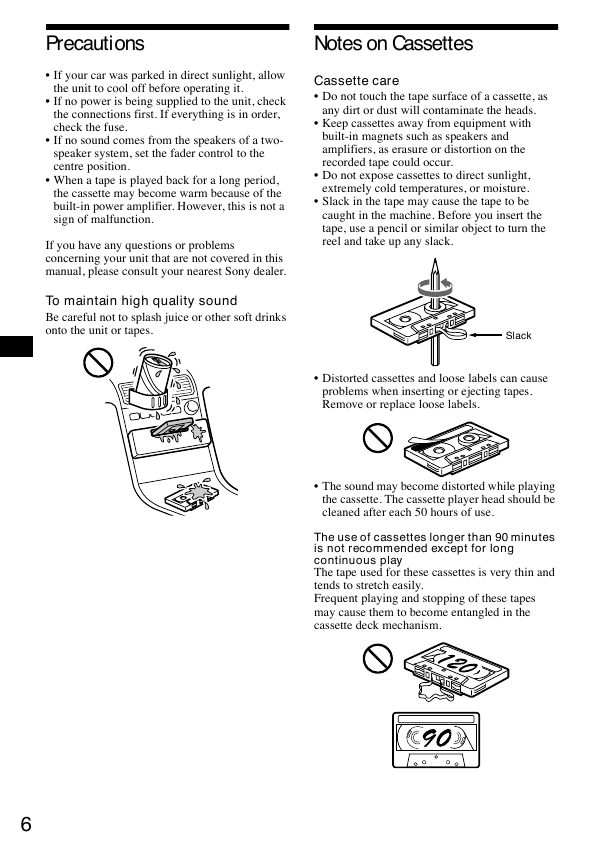

Precautions Notes on Cassettes Cassette care Do not touch the tape surface of a cassette, as any dirt or dust will contaminate the heads. Keep cassettes away from equipment with caught in the machine. Before you insert the tape, use a pencil or similar object to turn the reel and take up any slack. built-in magnets such as speakers and amplifiers, as erasure or distortion on the recorded tape could occur. Do not expose cassettes to direct sunlight, extremely cold temperatures, or moisture. Slack in the tape may cause the tape to be Slack Distorted cassettes and loose labels can cause problems when inserting or ejecting tapes. Remove or replace loose labels. The sound may become distorted while playing the cassette. The cassette player head should be cleaned after each 50 hours of use. The use of cassettes longer than 90 minutes is not recommended except for long continuous play The tape used for these cassettes is very thin and tends to stretch easily. Frequent playing and stopping of these tapes may cause them to become entangled in the cassette deck mechanism. If your car was parked in direct sunlight, allow the unit to cool off before operating it. If no power is being supplied to the unit, check the connections first. If everything is in order, check the fuse. If no sound comes from the speakers of a two- speaker system, set the fader control to the centre position. When a tape is played back for a long period, the cassette may become warm because of the built-in power amplifier. However, this is not a sign of malfunction. If you have any questions or problems concerning your unit that are not covered in this manual, please consult your nearest Sony dealer. To maintain high quality sound Be careful not to splash juice or other soft drinks onto the unit or tapes. 6

Getting Started Resetting the unit Before operating the unit for the first time or after replacing the car battery, you must reset the unit. Remove the front panel and press the RESET button with a pointed object, such as a ballpoint pen. RESET button Note Pressing the RESET button will erase the clock setting and some stored contents. Detaching the front panel You can detach the front panel of this unit to protect the unit from being stolen. Caution alarm If you turn the ignition switch to the OFF position without removing the front panel, the caution alarm will beep for a few seconds. If you connect an optional amplifier and do not use the built-in amplifier, the beep sound will be deactivated. 1 Press (OFF)*. Tape playback or radio reception stops (the key illumination and display remain on). * If your car has no ACC position on the ignition switch, be sure to turn the unit off by pressing (OFF) for 2 seconds to avoid car battery drain. 2 Press (OPEN), then slide the front panel to the right, and gently pull out the left end of the front panel. 1 2 Notes If you detach the panel while the unit is still turned on, the power will turn off automatically to prevent the speakers from being damaged. Do not drop or put excessive pressure on the front panel and its display window. Do not subject the front panel to heat/high temperature or moisture. Avoid leaving it in parked cars or on dashboards/rear trays. Tip When carrying the front panel with you, use the supplied front panel case. continue to next page t 7

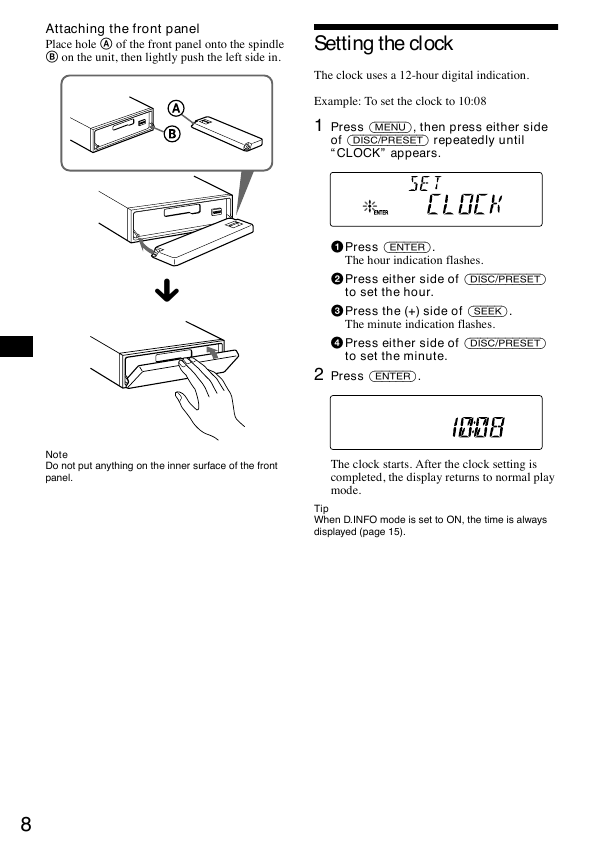

Attaching the front panel Place hole A of the front panel onto the spindle B on the unit, then lightly push the left side in. Setting the clock The clock uses a 12-hour digital indication. Example: To set the clock to 10:08 1 Press (MENU), then press either side of (DISC/PRESET) repeatedly until “CLOCK” appears. 1Press (ENTER). The hour indication flashes. 2Press either side of (DISC/PRESET) to set the hour. 3Press the (+) side of (SEEK). The minute indication flashes. 4Press either side of (DISC/PRESET) to set the minute. 2 Press (ENTER). x Note Do not put anything on the inner surface of the front panel. The clock starts. After the clock setting is completed, the display returns to normal play mode. Tip When D.INFO mode is set to ON, the time is always displayed (page 15). 8
