    Basic Information
    Introduction
    Chip Information
    How to Get Code
    Reference Platform
    How to Build Code
    How to Upgrade
    Test Report
    2.1. Auto Reboot and shutdown in Normal Temperatur
    2.2. Auto Suspend in Normal Temperature
    2.3. Stability in High Temperature
    2.4. 3D Game burning Test Report
    2.5. Storage Test Report
    2.6. Video Burning Test Report
    2.7.Monkey Test Report
    2.8.Video Format Test Report
    2.9.Power Consumption Test Report
    2.10.GMS Test Report
    Known Issue

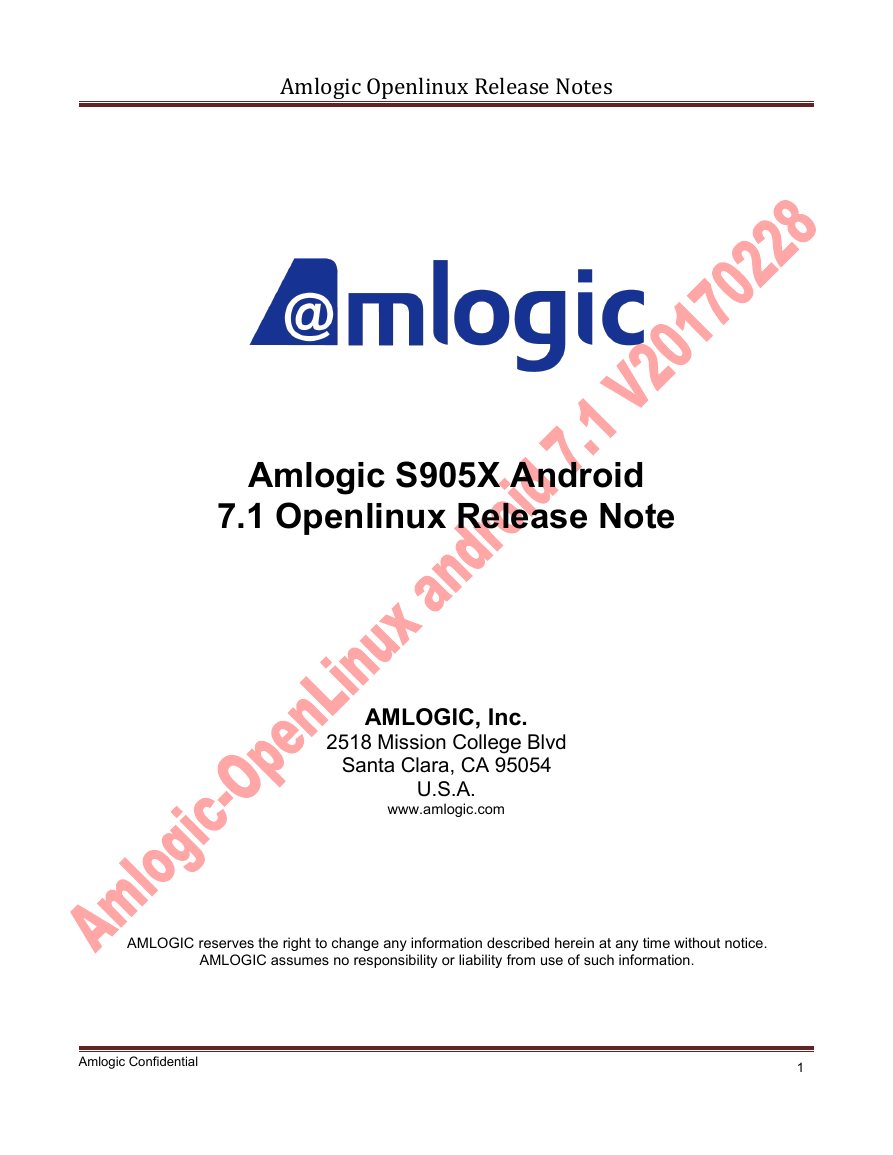

    AmlogicOpenlinuxReleaseNotes Amlogic S905X Android 7.1 Openlinux Release Note AMLOGIC, Inc. 2518 Mission College Blvd Santa Clara, CA 95054 U.S.A. www.amlogic.com AMLOGIC reserves the right to change any information described herein at any time without notice. AMLOGIC assumes no responsibility or liability from use of such information. Amlogic Confidential 1

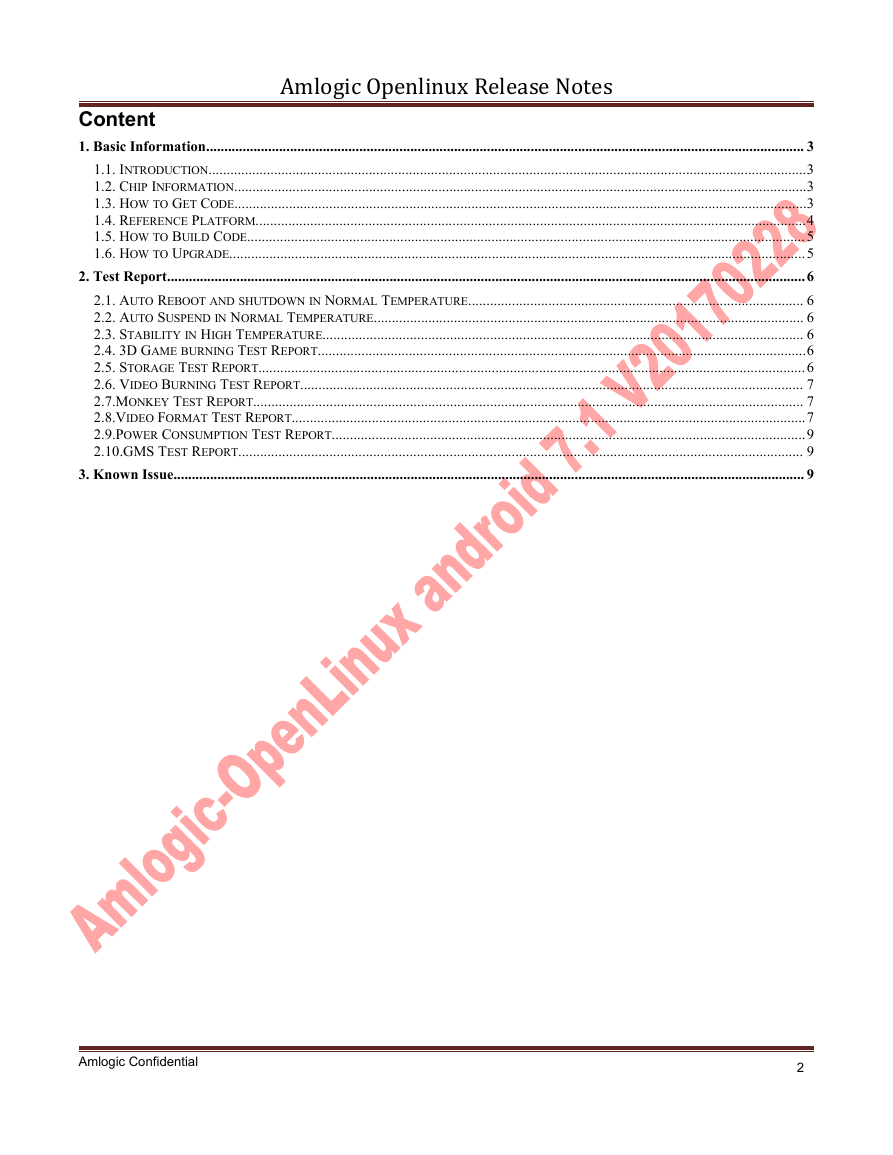

    AmlogicOpenlinuxReleaseNotes Content 1. Basic Information.................................................................................................................................................................... 3 1.1. INTRODUCTION....................................................................................................................................................................3 1.2. CHIP INFORMATION.............................................................................................................................................................3 1.3. HOW TO GET CODE.............................................................................................................................................................3 1.4. REFERENCE PLATFORM.......................................................................................................................................................4 1.5. HOW TO BUILD CODE.........................................................................................................................................................5 1.6. HOW TO UPGRADE..............................................................................................................................................................5 2. Test Report...............................................................................................................................................................................6 2.1. AUTO REBOOT AND SHUTDOWN IN NORMAL TEMPERATURE............................................................................................ 6 2.2. AUTO SUSPEND IN NORMAL TEMPERATURE...................................................................................................................... 6 2.3. STABILITY IN HIGH TEMPERATURE.................................................................................................................................... 6 2.4. 3D GAME BURNING TEST REPORT......................................................................................................................................6 2.5. STORAGE TEST REPORT......................................................................................................................................................6 2.6. VIDEO BURNING TEST REPORT.......................................................................................................................................... 7 2.7.MONKEY TEST REPORT....................................................................................................................................................... 7 2.8.VIDEO FORMAT TEST REPORT.............................................................................................................................................7 2.9.POWER CONSUMPTION TEST REPORT..................................................................................................................................9 2.10.GMS TEST REPORT........................................................................................................................................................... 9 3. Known Issue............................................................................................................................................................................. 9 Amlogic Confidential 2

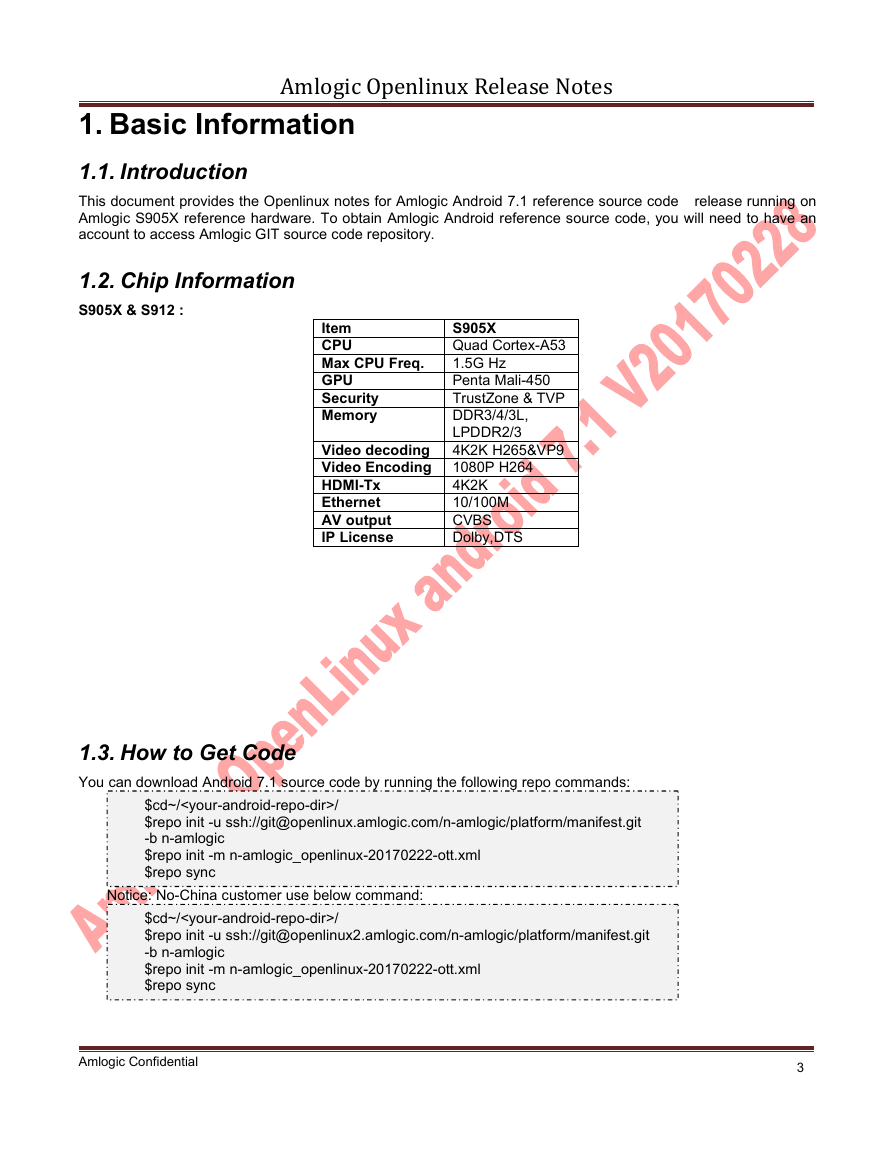

    AmlogicOpenlinuxReleaseNotes 1. Basic Information 1.1. Introduction This document provides the Openlinux notes for Amlogic Android 7.1 reference source code release running on Amlogic S905X reference hardware. To obtain Amlogic Android reference source code, you will need to have an account to access Amlogic GIT source code repository. 1.2. Chip Information S905X & S912 : Item CPU Max CPU Freq. GPU Security Memory Video decoding Video Encoding HDMI-Tx Ethernet AV output IP License S905X Quad Cortex-A53 1.5G Hz Penta Mali-450 TrustZone & TVP DDR3/4/3L, LPDDR2/3 4K2K H265&VP9 1080P H264 4K2K 10/100M CVBS Dolby,DTS 1.3. How to Get Code You can download Android 7.1 source code by running the following repo commands: $cd~// $repo init -u ssh://git@openlinux.amlogic.com/n-amlogic/platform/manifest.git -b n-amlogic $repo init -m n-amlogic_openlinux-20170222-ott.xml $repo sync Notice: No-China customer use below command: $cd~// $repo init -u ssh://git@openlinux2.amlogic.com/n-amlogic/platform/manifest.git -b n-amlogic $repo init -m n-amlogic_openlinux-20170222-ott.xml $repo sync Amlogic Confidential 3

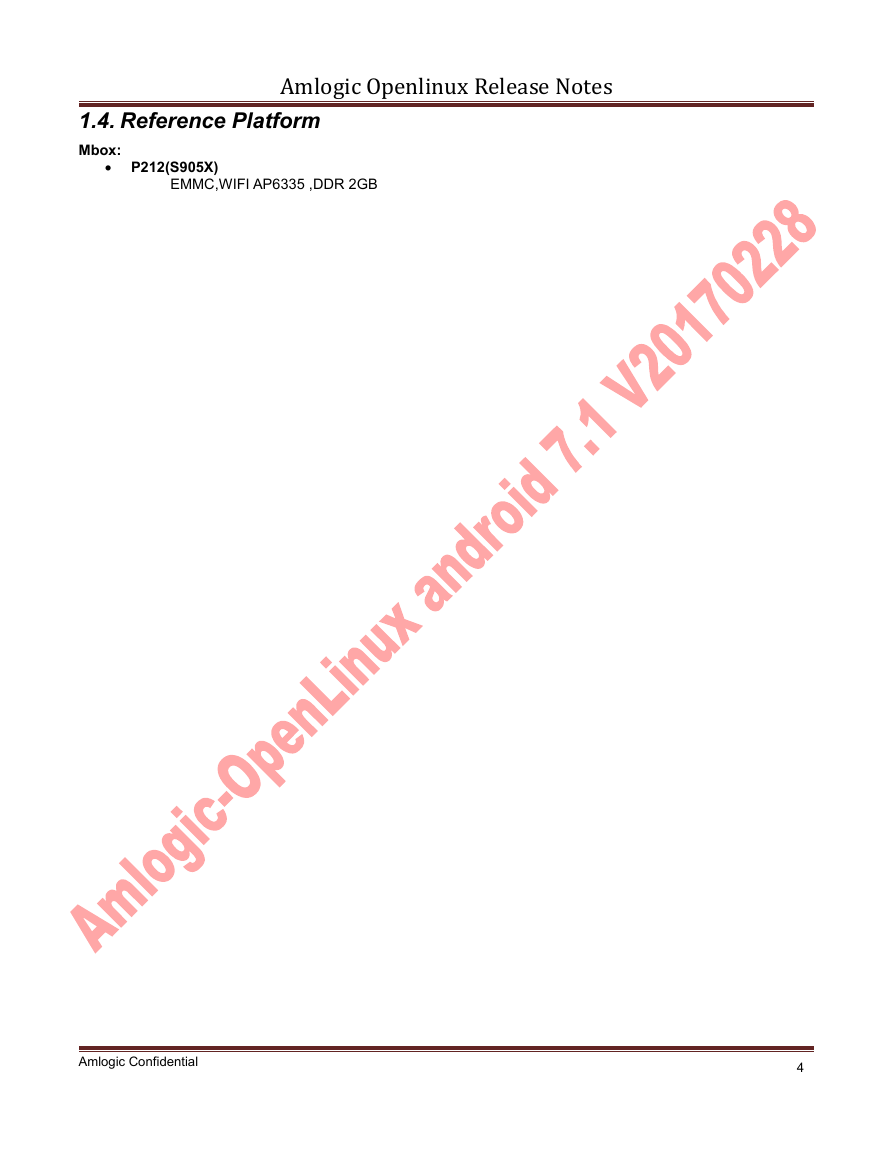

    AmlogicOpenlinuxReleaseNotes EMMC,WIFI AP6335 ,DDR 2GB 1.4. Reference Platform Mbox:  P212(S905X) Amlogic Confidential 4

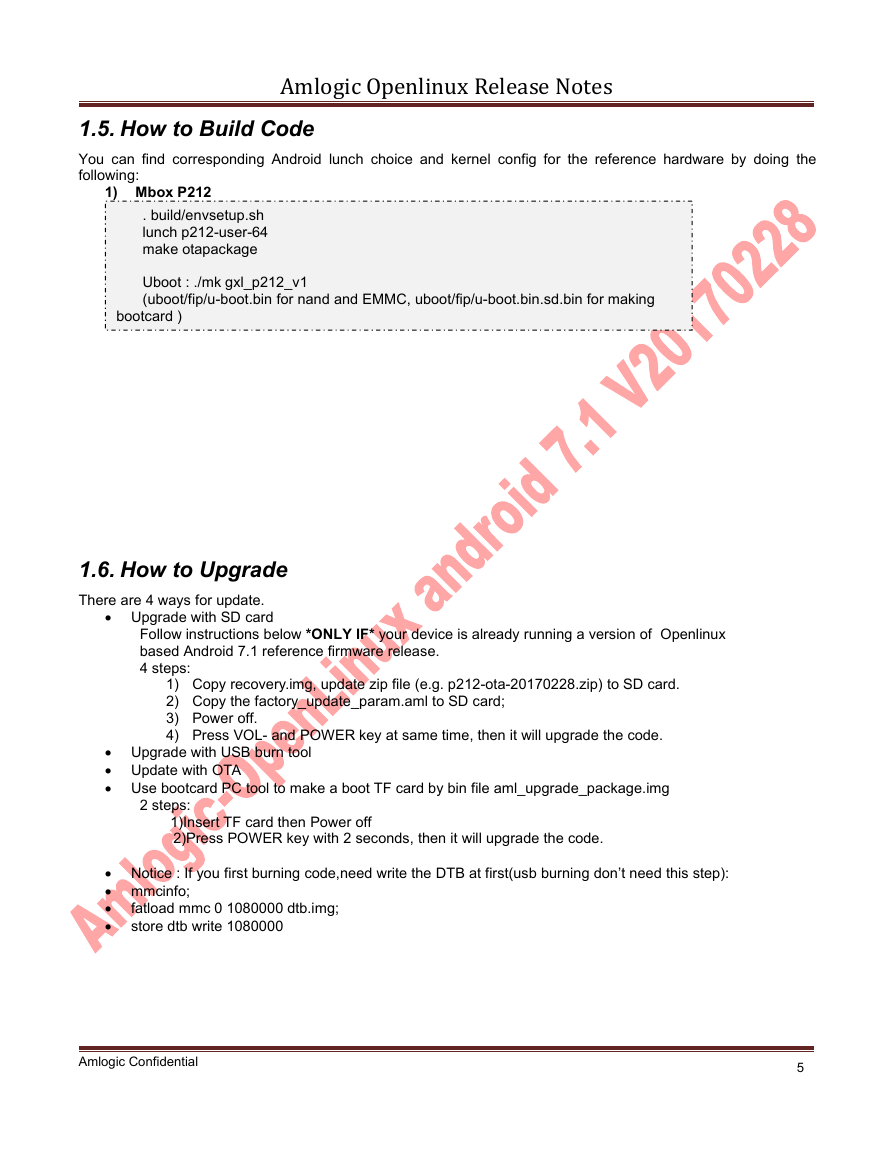

    AmlogicOpenlinuxReleaseNotes 1.5. How to Build Code You can find corresponding Android lunch choice and kernel config for the reference hardware by doing the following: 1) Mbox P212 . build/envsetup.sh lunch p212-user-64 make otapackage Uboot : ./mk gxl_p212_v1 (uboot/fip/u-boot.bin for nand and EMMC, uboot/fip/u-boot.bin.sd.bin for making bootcard ) 1.6. How to Upgrade There are 4 ways for update.  Upgrade with SD card Follow instructions below *ONLY IF* your device is already running a version of Openlinux based Android 7.1 reference firmware release. 4 steps: 1) Copy recovery.img, update zip file (e.g. p212-ota-20170228.zip) to SD card. 2) Copy the factory_update_param.aml to SD card; 3) Power off. 4) Press VOL- and POWER key at same time, then it will upgrade the code.  Upgrade with USB burn tool  Update with OTA  Use bootcard PC tool to make a boot TF card by bin file aml_upgrade_package.img 2 steps: 1)Insert TF card then Power off 2)Press POWER key with 2 seconds, then it will upgrade the code.  Notice : If you first burning code,need write the DTB at first(usb burning don’t need this step):  mmcinfo;   fatload mmc 0 1080000 dtb.img; store dtb write 1080000 Amlogic Confidential 5

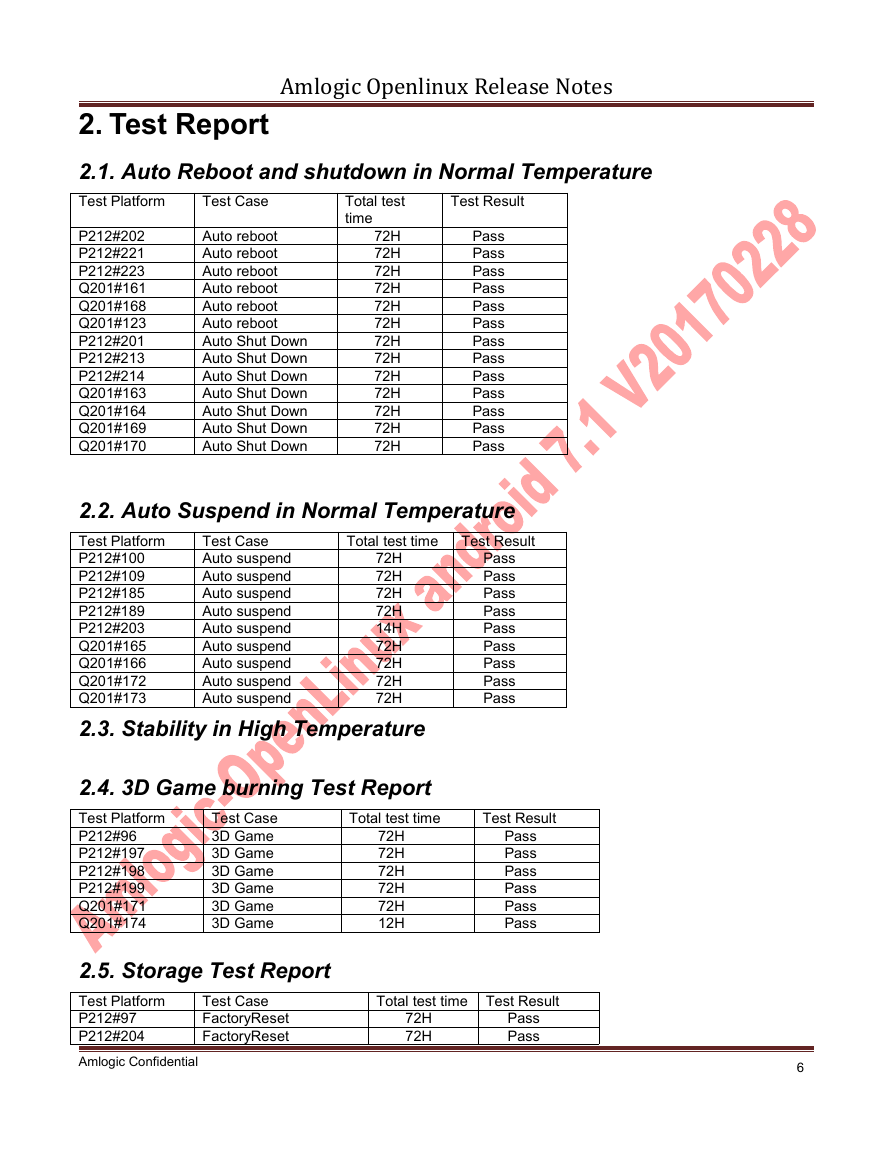

    AmlogicOpenlinuxReleaseNotes 2. Test Report 2.1. Auto Reboot and shutdown in Normal Temperature Test Platform Test Result Test Case Total test time 72H 72H 72H 72H 72H 72H 72H 72H 72H 72H 72H 72H 72H P212#202 P212#221 P212#223 Q201#161 Q201#168 Q201#123 P212#201 P212#213 P212#214 Q201#163 Q201#164 Q201#169 Q201#170 Auto reboot Auto reboot Auto reboot Auto reboot Auto reboot Auto reboot Auto Shut Down Auto Shut Down Auto Shut Down Auto Shut Down Auto Shut Down Auto Shut Down Auto Shut Down Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass Test Result Total test time 2.2. Auto Suspend in Normal Temperature Test Platform P212#100 P212#109 P212#185 P212#189 P212#203 Q201#165 Q201#166 Q201#172 Q201#173 2.3. Stability in High Temperature Test Case Auto suspend Auto suspend Auto suspend Auto suspend Auto suspend Auto suspend Auto suspend Auto suspend Auto suspend Pass Pass Pass Pass Pass Pass Pass Pass Pass 72H 72H 72H 72H 14H 72H 72H 72H 72H 2.4. 3D Game burning Test Report Test Platform Total test time P212#96 P212#197 P212#198 P212#199 Q201#171 Q201#174 Test Case 3D Game 3D Game 3D Game 3D Game 3D Game 3D Game 72H 72H 72H 72H 72H 12H Test Result Pass Pass Pass Pass Pass Pass 2.5. Storage Test Report Test Platform P212#97 P212#204 Amlogic Confidential Test Case FactoryReset FactoryReset Total test time 72H 72H Test Result Pass Pass 6

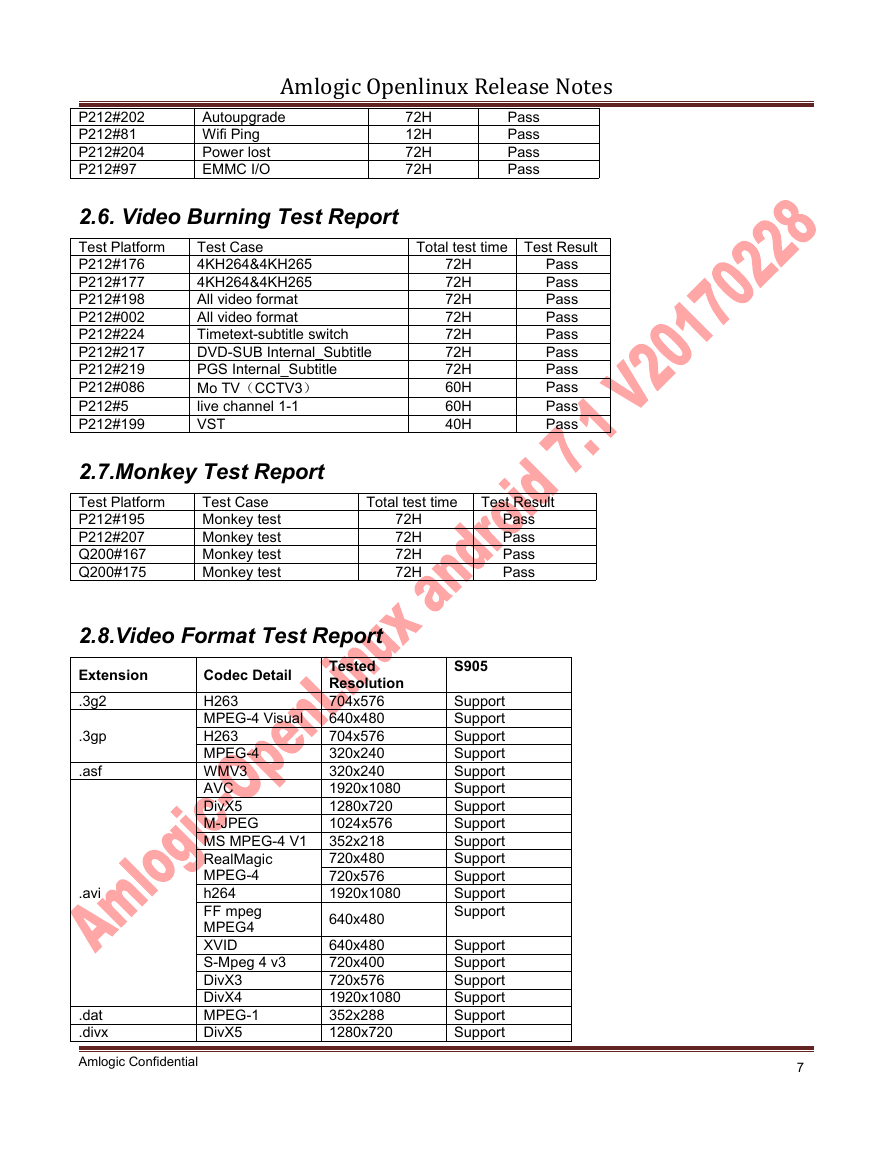

    AmlogicOpenlinuxReleaseNotes 72H 12H 72H 72H Pass Pass Pass Pass P212#202 P212#81 P212#204 P212#97 Autoupgrade Wifi Ping Power lost EMMC I/O Total test time Test Result 2.6. Video Burning Test Report Test Platform P212#176 P212#177 P212#198 P212#002 P212#224 P212#217 P212#219 P212#086 P212#5 P212#199 Test Case 4KH264&4KH265 4KH264&4KH265 All video format All video format Timetext-subtitle switch DVD-SUB Internal_Subtitle PGS Internal_Subtitle Mo TV（CCTV3） live channel 1-1 VST 72H 72H 72H 72H 72H 72H 72H 60H 60H 40H Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass 2.7.Monkey Test Report Test Platform P212#195 P212#207 Q200#167 Q200#175 Test Case Monkey test Monkey test Monkey test Monkey test Total test time 72H 72H 72H 72H Test Result Pass Pass Pass Pass .3gp .asf .avi 2.8.Video Format Test Report Tested Extension Resolution .3g2 704x576 640x480 704x576 320x240 320x240 1920x1080 1280x720 1024x576 352x218 720x480 720x576 1920x1080 640x480 640x480 720x400 720x576 1920x1080 352x288 1280x720 Codec Detail H263 MPEG-4 Visual H263 MPEG-4 WMV3 AVC DivX5 M-JPEG MS MPEG-4 V1 RealMagic MPEG-4 h264 FF mpeg MPEG4 XVID S-Mpeg 4 v3 DivX3 DivX4 MPEG-1 DivX5 .dat .divx S905 Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Amlogic Confidential 7

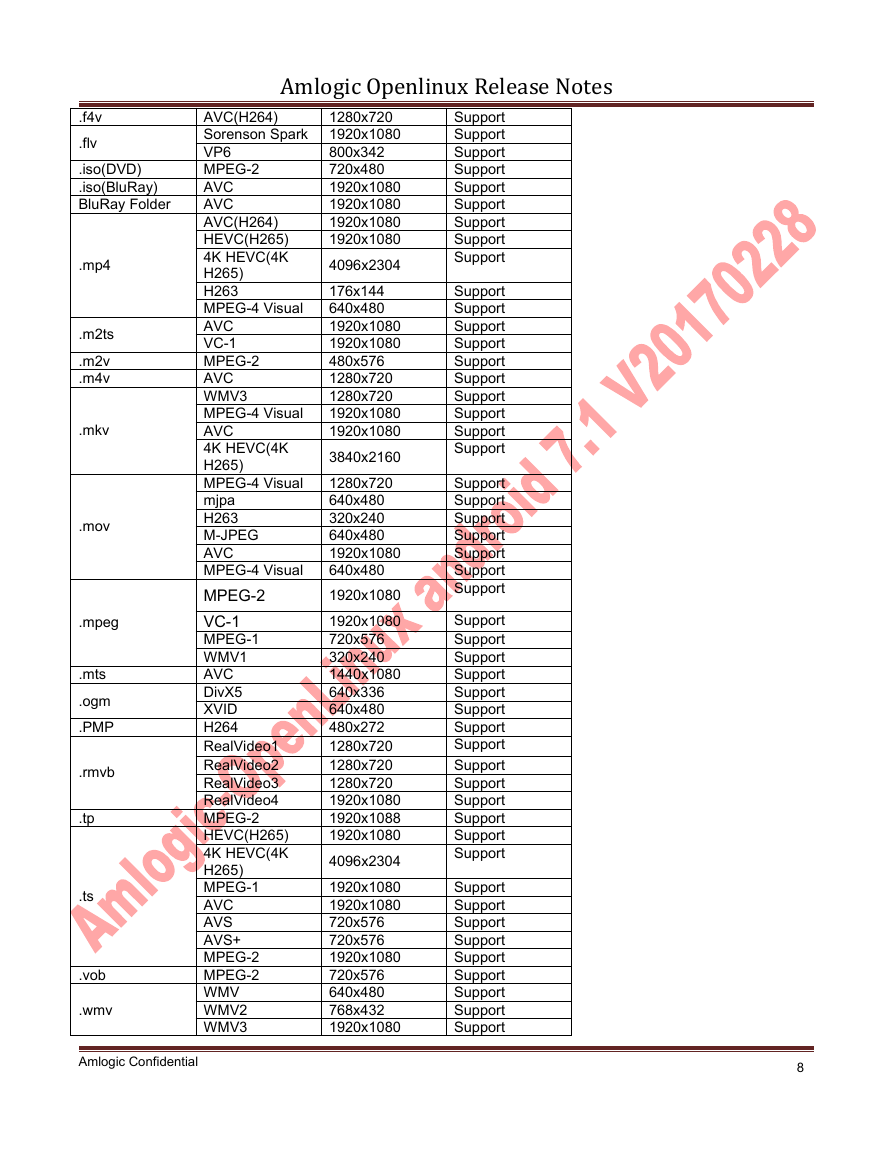

    AmlogicOpenlinuxReleaseNotes Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support Support AVC(H264) Sorenson Spark VP6 MPEG-2 AVC AVC AVC(H264) HEVC(H265) 4K HEVC(4K H265) H263 MPEG-4 Visual AVC VC-1 MPEG-2 AVC WMV3 MPEG-4 Visual AVC 4K HEVC(4K H265) MPEG-4 Visual mjpa H263 M-JPEG AVC MPEG-4 Visual MPEG-2 VC-1 MPEG-1 WMV1 AVC DivX5 XVID H264 RealVideo1 RealVideo2 RealVideo3 RealVideo4 MPEG-2 HEVC(H265) 4K HEVC(4K H265) MPEG-1 AVC AVS AVS+ MPEG-2 MPEG-2 WMV WMV2 WMV3 1280x720 1920x1080 800x342 720x480 1920x1080 1920x1080 1920x1080 1920x1080 4096x2304 176x144 640x480 1920x1080 1920x1080 480x576 1280x720 1280x720 1920x1080 1920x1080 3840x2160 1280x720 640x480 320x240 640x480 1920x1080 640x480 1920x1080 1920x1080 720x576 320x240 1440x1080 640x336 640x480 480x272 1280x720 1280x720 1280x720 1920x1080 1920x1088 1920x1080 4096x2304 1920x1080 1920x1080 720x576 720x576 1920x1080 720x576 640x480 768x432 1920x1080 .f4v .flv .iso(DVD) .iso(BluRay) BluRay Folder .mp4 .m2ts .m2v .m4v .mkv .mov .mpeg .mts .ogm .PMP .rmvb .tp .ts .vob .wmv Amlogic Confidential 8
