JVC数码摄像机-JVC UX-A70MD说明书.pdf

发布时间：2022-05-20 发布人：admin 分类：说明书资料大小：2.79M 资料格式：pdf 举报版权申诉

第1页 / 共54页

第2页 / 共54页

第3页 / 共54页

第4页 / 共54页

第5页 / 共54页

第6页 / 共54页

第7页 / 共54页

第8页 / 共54页

Front cover

Introduction

Contents

Location of the Buttons

Getting Started

Basic and Common Operations

Listening to FM and AM Broadcasts

Playing Back a CD

Playing Back an MD

Recording on MDs

Editing MDs

Assigning Titles to an MD

Using the Timers

Maintenance

Additional Information

MD Messages

Troubleshooting

Specifications

Back cover

MICRO COMPONENT MD SYSTEM SISTEMA MD DE MICROCOMPONENTES SISTEMA MD DE MICROCOMPONENTE UX-A70MD 1 MARK 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO 7 PQRS 8 TUV 9 WXYZ 10 0 +10 COMPACT DIGITAL AUDIO INSTRUCTIONS MANUAL DE INSTRUCCIONES INSTRUÇÕES For Customer Use: Enter below the Model No. and Serial No. which are located either on the rear, bottom or side of the cabinet. Retain this information for future reference. Model No. Serial No. GVT0050-003A [US, UB, UJ] UX-A70MD[US,UB,UJ]COVER_f 1 00.12.4, 4:33 PM

Warnings, Cautions and Others Avisos, precauciones y otras notas Advertências, precauções e outras notas ! Precaução –– Interruptor Desconecte o cabo de alimentação para desligar completamente a alimentação de energia (o indicador luminoso STANDBY/ON se apaga). O interruptor qual for a sua posição. • Quando o aparelho estiver em standby, o indicador luminoso não desconecta totalmente a alimentação seja • Quando o aparelho estiver ligado, o indicador luminoso estará estará vermelho. laranja. A alimentação pode ser controlada remotamente. switch! Caution –– Disconnect the mains plug to shut the power off completely (the STANDBY/ON lamp goes off). The line. • When the unit is on standby, the STANDBY/ON lamp lights switch in any position does not disconnect the mains • When the unit is turned on, the STANDBY/ON lamp lights red. green. The power can be remote controlled. ! Precaución –– Interruptor Desconecte el enchufe de la red para desconectar la alimentación por completo (la lámpara STANDBY/ON se apaga). El interruptor alimentación principal, cualquiera que sea su posición. • Cuando la unidad está en espera, la lámpara STANDBY/ON no desconectará completamente la • Cuando conecta la unidad, la lámpara STANDBY/ON se se enciende en rojo. enciende en naranja. La alimentacion puede ser controlada a distancia. UX-A70MD[US,UB,UJ]safety_f 1 00.12.4, 4:33 PM – G-1 –

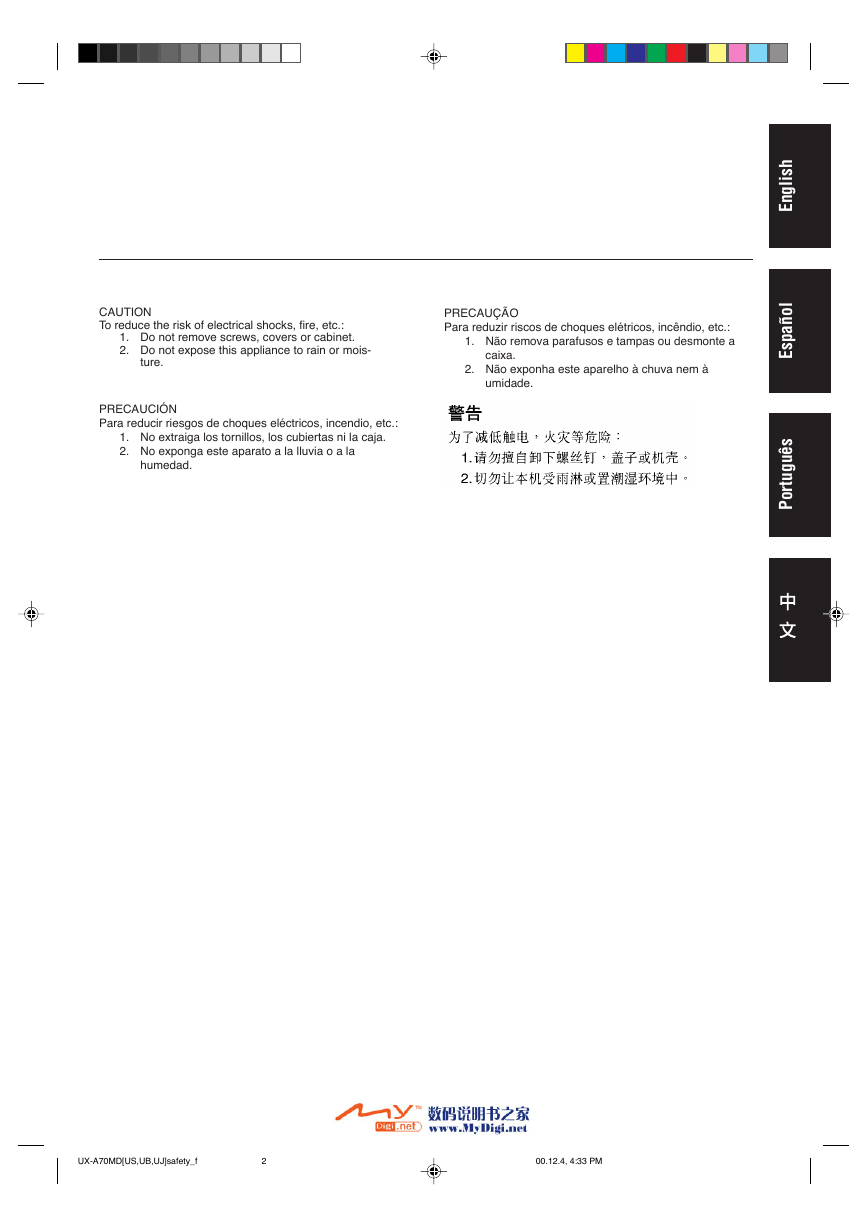

CAUTION To reduce the risk of electrical shocks, fire, etc.: 1. Do not remove screws, covers or cabinet. 2. Do not expose this appliance to rain or mois- ture. PRECAUCIÓN Para reducir riesgos de choques eléctricos, incendio, etc.: 1. No extraiga los tornillos, los cubiertas ni la caja. 2. No exponga este aparato a la lluvia o a la humedad. PRECAUÇÃO Para reduzir riscos de choques elétricos, incêndio, etc.: 1. Não remova parafusos e tampas ou desmonte a caixa. 2. Não exponha este aparelho à chuva nem à umidade. h s i l g n E l o ñ a p s E s ê u g u t r o P UX-A70MD[US,UB,UJ]safety_f 2 00.12.4, 4:33 PM – G-2 –

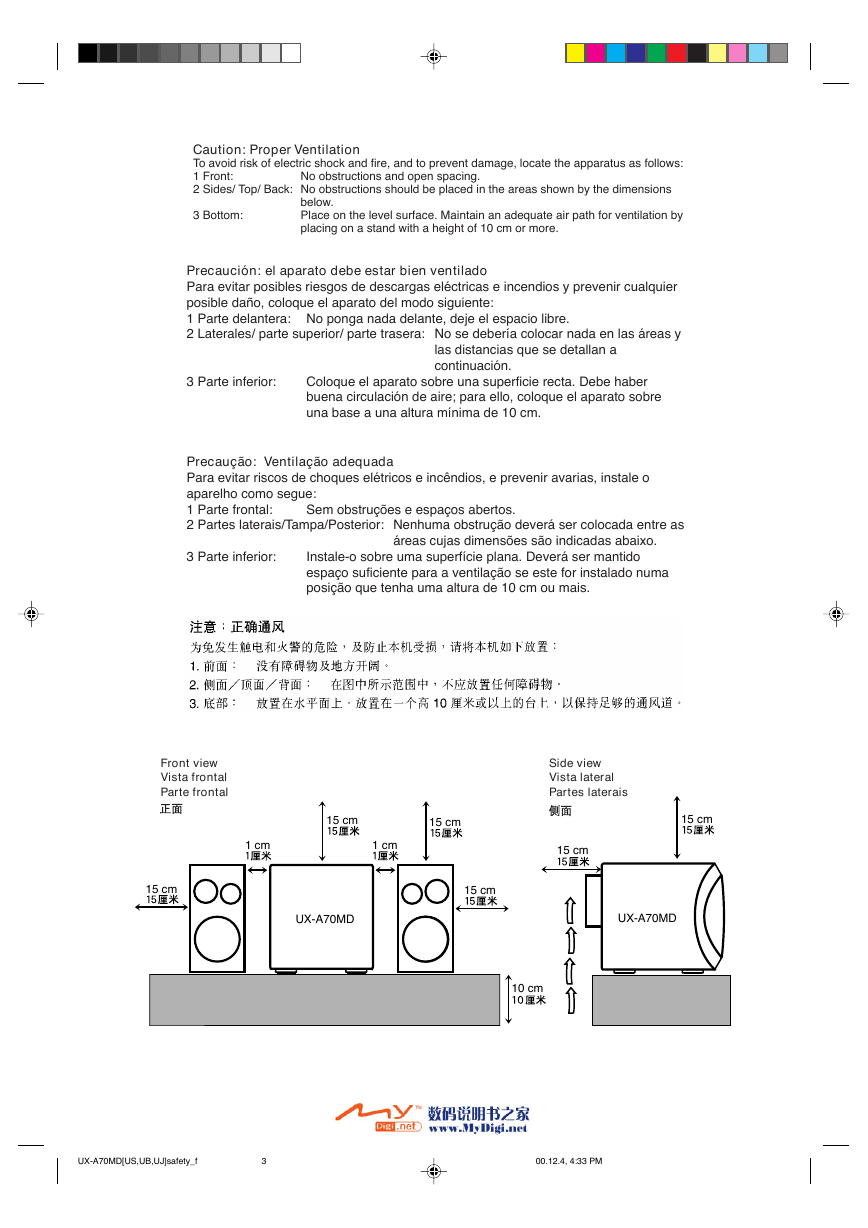

Caution: Proper Ventilation To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows: 1 Front: 2 Sides/ Top/ Back: No obstructions should be placed in the areas shown by the dimensions No obstructions and open spacing. 3 Bottom: below. Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more. Precaución: el aparato debe estar bien ventilado Para evitar posibles riesgos de descargas eléctricas e incendios y prevenir cualquier posible daño, coloque el aparato del modo siguiente: 1 Parte delantera: No ponga nada delante, deje el espacio libre. 2 Laterales/ parte superior/ parte trasera: No se debería colocar nada en las áreas y 3 Parte inferior: Coloque el aparato sobre una superficie recta. Debe haber buena circulación de aire; para ello, coloque el aparato sobre una base a una altura mínima de 10 cm. las distancias que se detallan a continuación. Precaução: Ventilação adequada Para evitar riscos de choques elétricos e incêndios, e prevenir avarias, instale o aparelho como segue: 1 Parte frontal: 2 Partes laterais/Tampa/Posterior: Nenhuma obstrução deverá ser colocada entre as Sem obstruções e espaços abertos. 3 Parte inferior: áreas cujas dimensões são indicadas abaixo. Instale-o sobre uma superfície plana. Deverá ser mantido espaço suficiente para a ventilação se este for instalado numa posição que tenha uma altura de 10 cm ou mais. Front view Vista frontal Parte frontal Side view Vista lateral Partes laterais 15 cm 15 cm 15 cm 1 cm 1 cm 15 cm 15 cm 15 cm UX-A70MD UX-A70MD 10 cm – G-3 – UX-A70MD[US,UB,UJ]safety_f 3 00.12.4, 4:33 PM

IMPORTANT FOR LASER PRODUCTS / IMPORTANTE PARA PRODUCTOS LÁSER / IMPOTANTE PARA PRODUTOS LASER / REPRODUCTION OF LABELS / REPRODUCCIÓN DE ETIQUETAS / REPRODUÇÃO DE ETIQUETAS / 1 CLASSIFICATION LABEL, PLACED ON REAR ENCLO- SURE 2 WARNING LABEL, PLACED INSIDE THE UNIT 1 ETIQUETA DE CLASIFICACIÓN, PEGADA EN LA PARTE POSTERIOR DE LA CAJA 2 ETIQUETA DE ADVERTENCIA, PEGADA EN EL IN- TERIOR DE LA UNIDAD 1 ETIQUETA DE CLASSIFICAÇÃO LOCALIZADA NA PARTE POSTERIOR DA CAIXA DO APARELHO. 2 ETIQUETA DE ADVERTÊNCIA LOCALIZADA NA PARTE INTERNA DA UNIDADE. CLASS 1 LASER PRODUCT Invisible DANGER: laser radiation when open and interlock failed or defeated. AVOID DIRECT EXPOSURE TO BEAM. (e) VARNING: Osynlig laser- strålning när denna del är öppnad och spärren är urkopplad. Betrakta ej strålen. (s) ADVARSEL: Usynlig laser- stråling ved åbning, når sikkerhedsafbrydere er ude af funktion. Undgå udsæt- telse for stråling (d) VARO: Avattaessa ja suo- jalukitus ohitettaessa olet alttiina näkymättömälle lasersäteilylle. Älä katso säteeseen. (f) h s i l g n E l o ñ a p s E s ê u g u t r o P 1. CLASS 1 LASER PRODUCT 2. DANGER: Invisible laser radiation when open and user serviceable parts inside the unit; leave all servicing to qualified service personnel. interlock failed or defeated. Avoid direct exposure to beam. 3. CAUTION: Do not open the top cover. There are no 1. PRODUTO LASER CLASSE 1 2. PERIGO: O laser emite uma rediação invisível que é perigosa, caso o aparelho esteja aberto e a trava inoperante ou danificada. Evite exposição direta ao feixe dos raios. 3. CUIDADO: Não abra a caixa do aparelho. Não existem peças reparáveis pelo usuário na parte interna da unidade. Solicite assistência técnica somente a pessoal técnico qualificado. 1. PRODUCTO LÁSER CLASE 1 2. PELIGRO: En el interior hay radiación láser invisible. Evite el contacto directo con el haz. 3. PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no existen piezas reparables por el usuario; deje todo servicio técnico en manos de personal calificado. UX-A70MD[US,UB,UJ]safety_f 4 00.12.4, 4:33 PM – G-4 –

Introduction h s i l g n E We would like to thank you for purchasing one of our JVC products. Before operating this unit, read this manual carefully and thoroughly to obtain the best possible performance from your unit, and retain this manual for future reference. About This Manual This manual is organized as follows: • This manual mainly explains playback and editing operations using the remote control, and the other operation such as recording operations using the buttons on the unit. You can use the buttons both on the remote control and on the main unit for the same operations if they have the same or similar names (or marks), unless mentioned otherwise. • Basic and common information that is the same for many functions is grouped in one place, and is not repeated in each procedure. For instance, we do not repeat the information about turning on/off the unit, setting the volume, changing the sound effects, and others, which are explained in the section “Basic and Common Operations” on pages 10 – 13. • The following marks are used in this manual: Gives you warning and caution to prevent from damage or risk of fire/electric shock. Furthermore, gives you information which is not good for obtaining the best possible performance from the unit. Gives you information and hints you had better know. Precautions Installation • Install in a place which is level, dry and neither too hot nor too cold — between 5˚C (41˚F) and 35˚C (95˚F). • Install the unit in a location with adequate ventilation to prevent internal heat buildup in the unit. • Leave sufficient distance between the unit and the TV. • Keep the speakers away from the TV to avoid interference with TV. DO NOT install the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration. Power sources • When unplugging the unit from the wall outlet, always pull the plug, not the AC power cord. DO NOT handle the AC power cord with wet hands. Moisture condensation Moisture may condense on the lens inside the unit in the following cases: • After starting heating in the room • In a damp room • If the unit is brought directly from a cold to a warm place Should this occur, the unit may malfunction. In this case, leave the unit turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again. Others • The electronic swing panel may malfunction when you use this unit under the strong light such as the direct sunlight. DO NOT expose this unit to the strong light. • Should any metallic object or liquid fall into the unit, unplug the AC power cord and consult your dealer before operating any further. • If you are not going to operate the unit for an extended period of time, unplug the AC power cord from the wall outlet. DO NOT disassemble the unit since there are no user serviceable parts inside. If anything goes wrong, unplug the AC power cord and consult your dealer. EN01-09.UX-A70MD[USUBUJ]_f 1 00.12.4, 4:30 PM – 1 –

h s i l g n E Contents Location of the Buttons .................................. 3 Main Unit ............................................................... 4 Remote Control ...................................................... 5 Getting Started................................................ 6 Unpacking .............................................................. 6 Adjusting the Voltage Selector ............................... 6 Connecting Antennas ............................................. 6 Connecting Speakers .............................................. 7 Connecting Other Equipment ................................ 8 Putting the Batteries into the Remote Control ....... 9 Basic and Common Operations ................... 10 Turning On the Power .......................................... 11 Selecting the Sources and Starting Play .............. 11 Adjusting the Volume ........................................... 12 Reinforcing the Bass Sound ................................. 12 Selecting the Sound Modes .................................. 12 Setting the Display Illumination .......................... 13 Listening to FM and AM Broadcasts .......... 14 Setting the AM Tuner Interval Spacing ................ 15 Tuning in a Station ............................................... 15 Presetting Stations ................................................ 15 Tuning in a Preset Station .................................... 16 Playing Back a CD ........................................ 17 Playing Back the Entire CD — Normal Play ...... 18 Basic CD Operations ........................................... 18 Programing the Playing Order of the Tracks — Program Play ............................................ 19 Playing at Random — Random Play ................... 20 Repeating Tracks — Repeat Play ........................ 20 Playing Back an MD ..................................... 21 Playing Back the Entire MD — Normal Play ...... 22 Basic MD Operations ........................................... 23 Programing the Playing Order of the Tracks — Program Play ............................................ 23 Playing at Random — Random Play ................... 24 Repeating Tracks — Repeat Play ........................ 24 Recording on MD ......................................... 25 Before You Start Recording ................................. 26 Recording FM/AM Broadcasts ............................ 28 Recording CD — CD Synchronized Recording .... 28 Recording the External Equipment — Sound Synchronized Recording ............... 29 Editing MD .................................................... 30 Introducing MD Editing Functions ...................... 31 DIVIDE Function ................................................ 32 JOIN Function ...................................................... 32 MOVE Function ................................................... 33 ERASE Function .................................................. 34 ALL ERASE Function ......................................... 34 Assigning Titles to an MD ............................ 35 Assigning the Disc Title and Track Title ............. 36 Using the Timers ........................................... 38 Setting the Clock .................................................. 39 Using Recording Timer ........................................ 39 Using Daily Timer ............................................... 40 Using Sleep Timer ............................................... 42 Timer Priority ....................................................... 42 Maintenance .................................................. 43 Additional Information ................................ 44 MD Disc Types .................................................... 44 ATRAC (Adaptive TRansform Acoustic Coding)/ ATRAC3 ( ) ........................................ 44 UTOC (User Table Of Contents) ......................... 44 Sound Skip Guard Memory ................................. 44 SCMS (Serial Copy Management System) .......... 45 HCMS (High-speed Copy Management System) .. 45 • MD limitations ........................................... 45 MD Messages ................................................ 46 Troubleshooting ............................................ 47 Specifications ................................................. 48 EN01-09.UX-A70MD[USUBUJ]_f 2 00.12.4, 4:30 PM – 2 –

Location of the Buttons h s i l g n E Become familiar with the buttons on your unit. Main unit 1 2 3 4 5 6 7 8 9 Display window on the electronic swing panel p q w e r t y u i o ; TRACK 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 DAILY MD REC SLEEP MONO LP2 LP4 STEREO SP HIGH NORMAL SPEED MD CD REC ALL RANDOMPRGM a s d f – 3 – BASS SOUND g h j EN01-09.UX-A70MD[USUBUJ]_f 3 00.12.4, 4:30 PM
