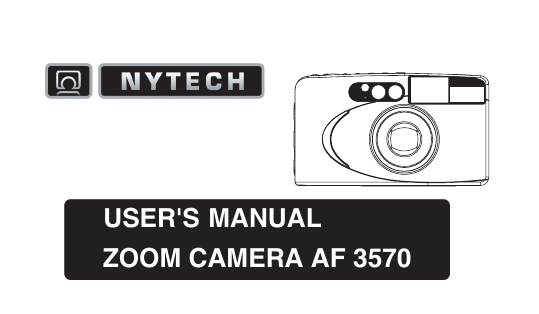

USER'S MANUAL ZOOM CAMERA AF 3570

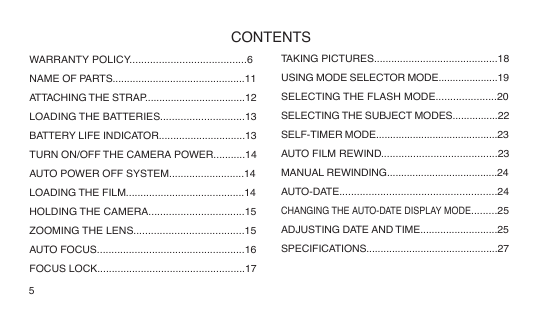

CONTENTS WARRANTY POLICY........................................6 TAKING PICTURES...........................................18 NAME OF PARTS..............................................11 USING MODE SELECTOR MODE.....................19 ATTACHING THE STRAP...................................12 SELECTING THE FLASH MODE.....................20 LOADING THE BATTERIES.............................13 SELECTING THE SUBJECT MODES................22 BATTERY LIFE INDICATOR..............................13 SELF-TIMER MODE...........................................23 TURN ON/OFF THE CAMERA POWER...........14 AUTO FILM REWIND........................................23 AUTO POWER OFF SYSTEM..........................14 MANUAL REWINDING.......................................24 LOADING THE FILM.........................................14 AUTO-DATE......................................................24 HOLDING THE CAMERA.................................15 CHANGING THE AUTO-DATE DISPLAY MODE.........25 ZOOMING THE LENS......................................15 ADJUSTING DATE AND TIME...........................25 AUTO FOCUS...................................................16 SPECIFICATIONS..............................................27 FOCUS LOCK...................................................17 5

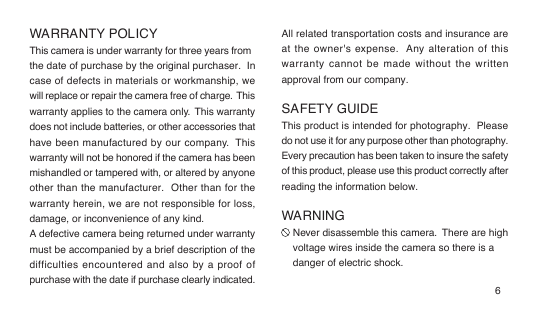

WARRANTY POLICY This camera is under warranty for three years from the date of purchase by the original purchaser. In case of defects in materials or workmanship, we will replace or repair the camera free of charge. This warranty applies to the camera only. This warranty does not include batteries, or other accessories that have been manufactured by our company. This warranty will not be honored if the camera has been mishandled or tampered with, or altered by anyone other than the manufacturer. Other than for the warranty herein, we are not responsible for loss, damage, or inconvenience of any kind. A defective camera being returned under warranty must be accompanied by a brief description of the difficulties encountered and also by a proof of purchase with the date if purchase clearly indicated. All related transportation costs and insurance are at the owner's expense. Any alteration of this warranty cannot be made without the written approval from our company. SAFETY GUIDE This product is intended for photography. Please do not use it for any purpose other than photography. Every precaution has been taken to insure the safety of this product, please use this product correctly after reading the information below. WARNING Never disassemble this camera. There are high voltage wires inside the camera so there is a danger of electric shock. 6

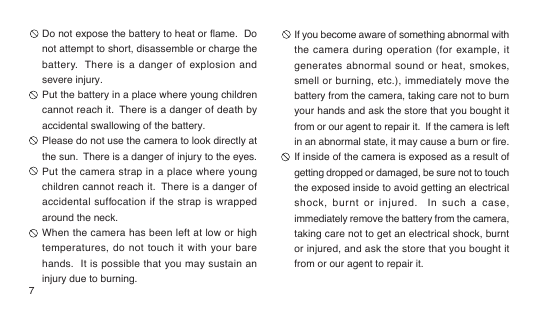

Do not expose the battery to heat or flame. Do not attempt to short, disassemble or charge the battery. There is a danger of explosion and severe injury. Put the battery in a place where young children cannot reach it. There is a danger of death by accidental swallowing of the battery. Please do not use the camera to look directly at the sun. There is a danger of injury to the eyes. Put the camera strap in a place where young children cannot reach it. There is a danger of accidental suffocation if the strap is wrapped around the neck. When the camera has been left at low or high temperatures, do not touch it with your bare hands. It is possible that you may sustain an injury due to burning. 7 If you become aware of something abnormal with the camera during operation (for example, it generates abnormal sound or heat, smokes, smell or burning, etc.), immediately move the battery from the camera, taking care not to burn your hands and ask the store that you bought it from or our agent to repair it. If the camera is left in an abnormal state, it may cause a burn or fire. If inside of the camera is exposed as a result of getting dropped or damaged, be sure not to touch the exposed inside to avoid getting an electrical shock, burnt or injured. In such a case, immediately remove the battery from the camera, taking care not to get an electrical shock, burnt or injured, and ask the store that you bought it from or our agent to repair it.

Never use the camera near inflammable gas or substance (gasoline, benzene, thinner, etc) to avoid danger of explosion, fire, burn, and so on. If the camera is dropped on snow or in water, or its inside is moistened with water, immediately remove the battery from the camera and ask the store that you bought it from or our agent to repair it. If the camera continues to be used while it is wet, it may cause a fire or electric shock. CAUTION Do not discharge the flash close to people's eyes (especially young children). There is a danger of injury to the eyes. Do not use the battery for purposes other than those recommended, because there is a danger of explosion and combustion. Before taking important pictures (for business, weddings or travel etc.), please take a test film to confirm whether the camera is working correctly. You cannot be compensated for losses caused by the loss of pictures with this product such as cost of photography. In some areas, especially overseas, it is difficult to buy a battery. We recommend taking an extra new battery when taking important pictures. Film may become exposed during X-ray scanning of checked luggage and hand luggage at airports. We recommend you that you carry film in your hand luggage and remove the film from the luggage before X-ray scanning, to request inspection by hand. 8

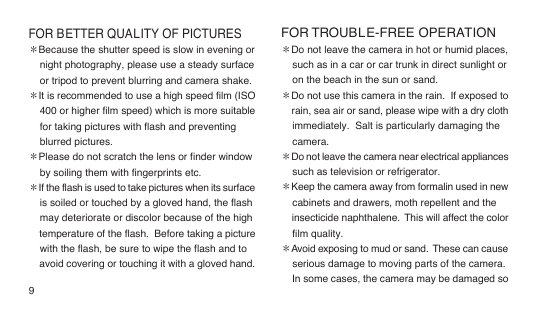

FOR BETTER QUALITY OF PICTURES Because the shutter speed is slow in evening or night photography, please use a steady surface or tripod to prevent blurring and camera shake. It is recommended to use a high speed film (ISO 400 or higher film speed) which is more suitable for taking pictures with flash and preventing blurred pictures. Please do not scratch the lens or finder window by soiling them with fingerprints etc. If the flash is used to take pictures when its surface is soiled or touched by a gloved hand, the flash may deteriorate or discolor because of the high temperature of the flash. Before taking a picture with the flash, be sure to wipe the flash and to avoid covering or touching it with a gloved hand. 9 FOR TROUBLE-FREE OPERATION Do not leave the camera in hot or humid places, such as in a car or car trunk in direct sunlight or on the beach in the sun or sand. Do not use this camera in the rain. If exposed to rain, sea air or sand, please wipe with a dry cloth immediately. Salt is particularly damaging the camera. Do not leave the camera near electrical appliances such as television or refrigerator. Keep the camera away from formalin used in new cabinets and drawers, moth repellent and the insecticide naphthalene. This will affect the color film quality. Avoid exposing to mud or sand. These can cause serious damage to moving parts of the camera. In some cases, the camera may be damaged so

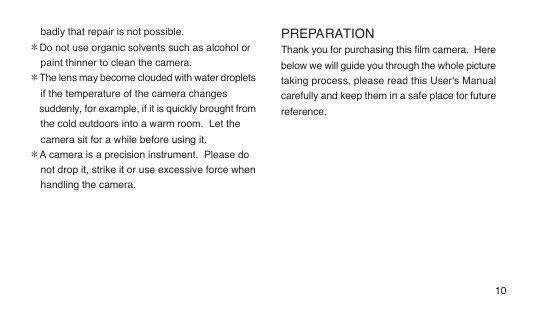

badly that repair is not possible. Do not use organic solvents such as alcohol or paint thinner to clean the camera. The lens may become clouded with water droplets if the temperature of the camera changes suddenly, for example, if it is quickly brought from the cold outdoors into a warm room. Let the camera sit for a while before using it. A camera is a precision instrument. Please do not drop it, strike it or use excessive force when handling the camera. PREPARATION Thank you for purchasing this film camera. Here below we will guide you through the whole picture taking process, please read this User's Manual carefully and keep them in a safe place for future reference. 10

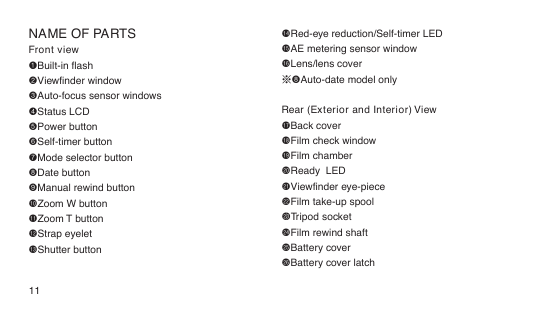

NAME OF PARTS Front view 1Built-in flash 2Viewfinder window 3Auto-focus sensor windows 4Status LCD 5Power button 6Self-timer button 7Mode selector button 8Date button 9Manual rewind button bkZoom W button blZoom T button bmStrap eyelet bnShutter button 11 boRed-eye reduction/Self-timer LED bpAE metering sensor window bqLens/lens cover 8Auto-date model only Rear (Exterior and Interior) View brBack cover bsFilm check window btFilm chamber ckReady LED clViewfinder eye-piece cmFilm take-up spool cnTripod socket coFilm rewind shaft cpBattery cover cqBattery cover latch
