Users Manual English

Welcome Dear user, thanks for purchasing this product. Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service. Safety Notice 1. Do not drop, puncture or disassemble the camera; otherwise the warranty will be voided. 2. Avoid all contact with water, and dry hands before using. 3. Do not expose the camera to high temperature or leave it in direct sunlight. Doing so may damage the camera. 4. Use the camera with care. Avoid pressing hard on the camera body. 5. For your own safety, avoid using the camera when there is a storm or lightning. 6. Avoid using batteries of different brands or types at the same time. This may lead to the potential for serious damage. 7. Remove batteries during long periods between usage, as deteriorated batteries may affect the functionality of the camera. 8. Remove batteries if they show signs of leaking or distortion. 9. Use only the accessories supplied by the manufacturer. 10. Keep the camera out of the reach of infants. 1

Table of Contents Welcome .......................................................................... 1 Safety Notice ................................................................... 1 Table of Contents ........................................................... 2 Getting Started ................................................................ 4 Knowing your camera parts .................................................................. 4 Loading batteries .................................................................................. 5 Inserting a SD/MMC card (optional) ..................................................... 6 Attaching the wrist strap (optional) ....................................................... 7 Basic Operations ............................................................ 8 Turning on your camera ........................................................................ 8 Turning off your camera ........................................................................ 8 Using the LCD monitor ......................................................................... 9 Reading the LCD indicators .................................................................. 10 Setting language ................................................................................... 11 Recording a video clip .......................................................................... 12 Taking a still picture .............................................................................. 14 Recording a voice clip .......................................................................... 17 Playing back your recordings ............................................................... 18 Connecting the camera to a TV ............................................................ 20 Advanced Operations .................................................... 21 Menu operation ..................................................................................... 21 Menu illustration ................................................................................... 21 Setting video resolution ........................................................................ 22 Setting picture resolution ...................................................................... 23 Setting white balance ........................................................................... 24 Setting exposure compensation ........................................................... 25 Setting image effect .............................................................................. 26 Setting date stamp ................................................................................ 27 Deleting ﬁles ......................................................................................... 28 Viewing ﬁle information ......................................................................... 29 System Settings ............................................................. 30 System menu items .............................................................................. 30 Setting date and time ............................................................................ 31 Setting LCD brightness ......................................................................... 31 Toggling OSD on or off ......................................................................... 32 Toggling beep sound on or off .............................................................. 32 2

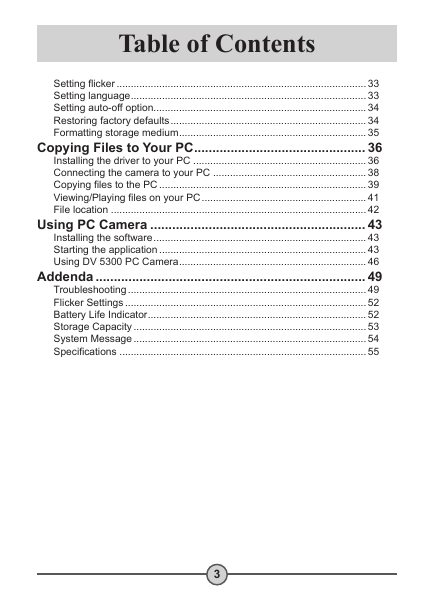

Table of Contents Setting ﬂicker ........................................................................................ 33 Setting language ................................................................................... 33 Setting auto-off option ........................................................................... 34 Restoring factory defaults ..................................................................... 34 Formatting storage medium .................................................................. 35 Copying Files to Your PC ............................................... 36 Installing the driver to your PC ............................................................. 36 Connecting the camera to your PC ...................................................... 38 Copying ﬁles to the PC ......................................................................... 39 Viewing/Playing ﬁles on your PC .......................................................... 41 File location .......................................................................................... 42 Using PC Camera ........................................................... 43 Installing the software ........................................................................... 43 Starting the application ......................................................................... 43 Using DV 5300 PC Camera .................................................................. 46 Addenda .......................................................................... 49 Troubleshooting .................................................................................... 49 Flicker Settings ..................................................................................... 52 Battery Life Indicator ............................................................................. 52 Storage Capacity .................................................................................. 53 System Message .................................................................................. 54 Speciﬁcations ....................................................................................... 55 3

g e t t i n g s t a r t e d Getting Started Knowing your camera parts Microphone Up/Down buttons ( ) Menu/OK button ( ) Focus switch Lens Flash strobe Strap hook Record button ( Shutter button ( Back LED Mode button ( Power button ( ) ) ) ) USB/AV-out port Port cover LCD panel Front LED Speaker Bottom View Battery/Card compartment cover 4

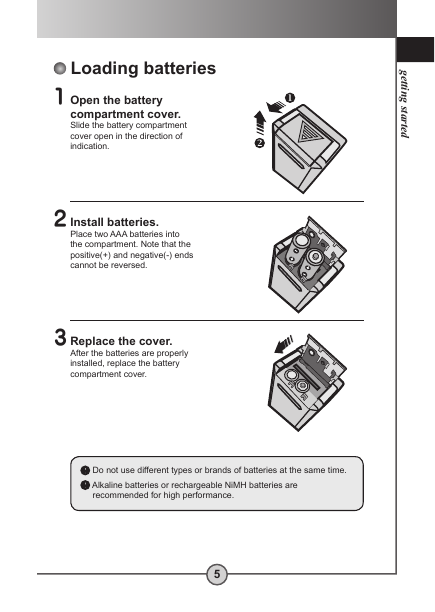

g e t t i n g s t a r t e d Loading batteries 1 Open the battery compartment cover. Slide the battery compartment cover open in the direction of indication. 2 Install batteries. Place two AAA batteries into the compartment. Note that the positive(+) and negative(-) ends cannot be reversed. 3 Replace the cover. After the batteries are properly installed, replace the battery compartment cover. Do not use different types or brands of batteries at the same time. Alkaline batteries or rechargeable NiMH batteries are recommended for high performance. 5

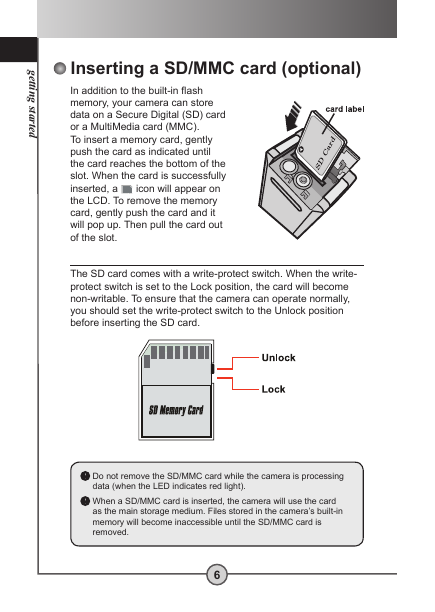

g e t t i n g s t a r t e d Inserting a SD/MMC card (optional) In addition to the built-in ﬂash memory, your camera can store data on a Secure Digital (SD) card or a MultiMedia card (MMC). To insert a memory card, gently push the card as indicated until the card reaches the bottom of the slot. When the card is successfully inserted, a icon will appear on the LCD. To remove the memory card, gently push the card and it will pop up. Then pull the card out of the slot. The SD card comes with a write-protect switch. When the write- protect switch is set to the Lock position, the card will become non-writable. To ensure that the camera can operate normally, you should set the write-protect switch to the Unlock position before inserting the SD card. Do not remove the SD/MMC card while the camera is processing data (when the LED indicates red light). When a SD/MMC card is inserted, the camera will use the card as the main storage medium. Files stored in the camera’s built-in memory will become inaccessible until the SD/MMC card is removed. 6

Attaching the wrist strap (optional) The wrist strap provides a convenient way for you to carry your camera around. 1 Stretch out the strap hook. Hold your camera upside down, and the strap hook will stretch out. g e t t i n g s t a r t e d hook 2 Thread the strap through the hook. Thread the thinner part of the strap through the strap hook as illustrated. Threading in the indicated direction will save you much time as the hook will remain stretched in this way. 3 Thread the strap through the loop. Thread the other end of the strap through the loop, and you are ready to carry your camera with ease. 7
