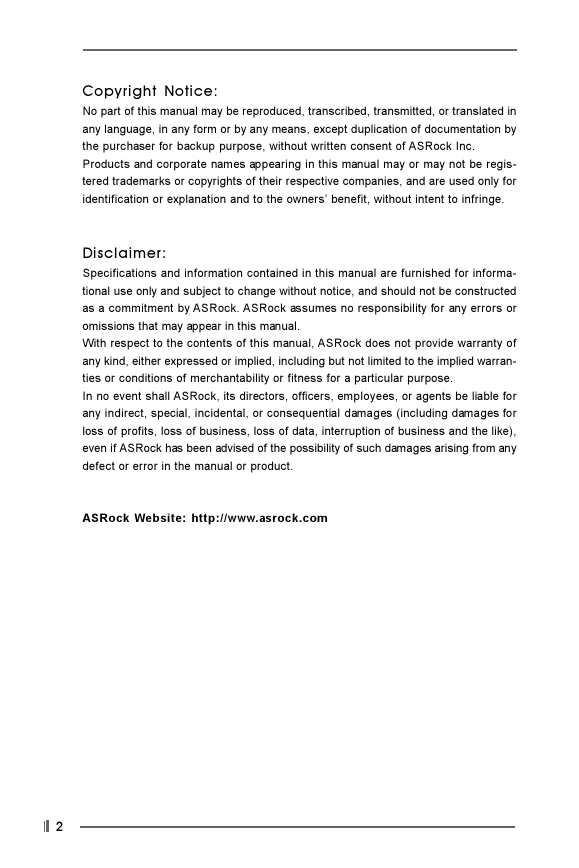

Copyright Notice: No part of this manual may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc. Products and corporate names appearing in this manual may or may not be regis- tered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe. Disclaimer: Specifications and information contained in this manual are furnished for informa- tional use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this manual. With respect to the contents of this manual, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warran- ties or conditions of merchantability or fitness for a particular purpose. In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the manual or product. ASRock Website: http://www.asrock.com 2

Contents 1 Introduction .................................................... 4 1.1 Package Contents ........................................................... 4 1.2 Specifications ................................................................. 5 1.3 Motherboard Layout (K7S41) ......................................... 7 1.4 Motherboard Layout (K7S41GX) ................................... 8 1.5 ASRock I/OTM (K7S41 / K7S41GX) ................................. 9 2 Installation ...................................................... 10 Pre-installation Precautions .................................................. 10 2.1 CPU Installation ............................................................... 11 2.2 Installation of CPU Fan and Heatsink .............................. 11 2.3 Installation of Memory Modules (DIMM) .......................... 12 2.4 Expansion Slots (PCI, AMR, and AGP Slots) .................. 13 2.5 Jumpers Setup ................................................................ 14 2.6 Connectors ..................................................................... 16 3 BIOS Setup ...................................................... 19 3.1 BIOS Setup Utility ............................................................ 19 3.1.1 BIOS Menu Bar ..................................................... 19 3.1.2 Legend Bar ........................................................... 19 3.2 Main Menu ....................................................................... 20 3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 22 4 Software Support ........................................... 23 4.1 Installing Operating System ............................................ 23 4.2 Support CD Information ................................................... 23 4.2.1 Running Support CD ............................................. 23 4.2.2 Drivers Menu ........................................................ 23 4.2.3 Utilities Menu ......................................................... 23 4.2.4 ASRock “PC-DIY Live Demo” Program ................. 23 4.2.5 Contact Information ............................................... 23 Appendix ........................................................... 24 1. Advanced BIOS Setup Menu .......................................... 24 2. Security Setup Menu ...................................................... 28 3. Power Setup Menu ......................................................... 29 4. Boot Setup Menu ............................................................ 30 5. Exit Menu ......................................................................... 31 3

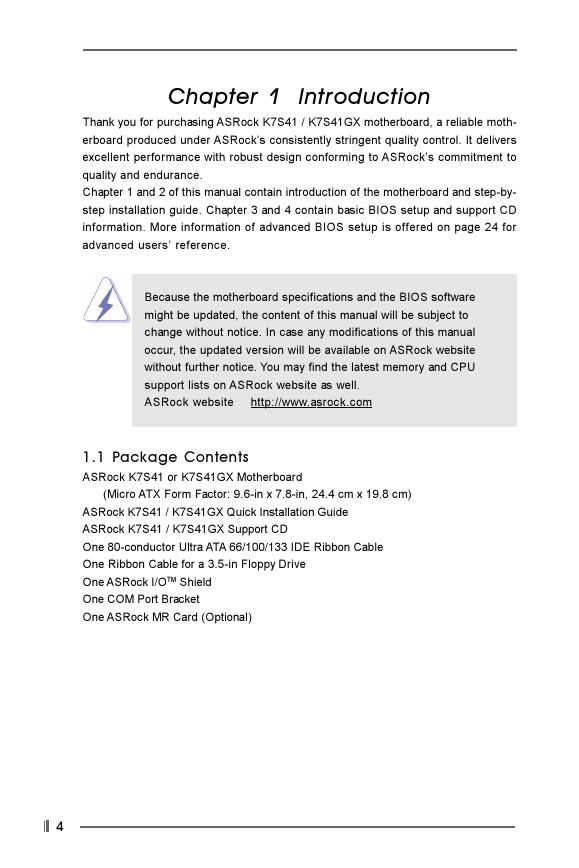

Chapter 1 Introduction Thank you for purchasing ASRock K7S41 / K7S41GX motherboard, a reliable moth- erboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commitment to quality and endurance. Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by- step installation guide. Chapter 3 and 4 contain basic BIOS setup and support CD information. More information of advanced BIOS setup is offered on page 24 for advanced users’ reference. Because the motherboard specifications and the BIOS software might be updated, the content of this manual will be subject to change without notice. In case any modifications of this manual occur, the updated version will be available on ASRock website without further notice. You may find the latest memory and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com 1.1 Package Contents ASRock K7S41 or K7S41GX Motherboard (Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm) ASRock K7S41 / K7S41GX Quick Installation Guide ASRock K7S41 / K7S41GX Support CD One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable One Ribbon Cable for a 3.5-in Floppy Drive One ASRock I/OTM Shield One COM Port Bracket One ASRock MR Card (Optional) 4

1.2 Specifications Platform: CPU: Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm Supports Socket A (462 pins) for AMD AthlonTM XP / DuronTM processor Chipsets: North Bridge (K7S41): SiS 741, FSB@400 MHz, AGP 8X/4X North Bridge (K7S41GX): SiS 741GX, FSB@333 MHz, AGP 8X/4X South Bridge: SiS 963L, supports USB 2.0, ATA 133 Memory: 2 DDR DIMM Slots: DDR1 and DDR2 K7S41: PC3200 (DDR400) / PC2700 (DDR333) / PC2100 (DDR266), Max. 2GB; K7S41GX: IDE: IDE1: ATA 133 / Ultra DMA Mode 6, PC2700 (DDR333) / PC2100 (DDR266), Max. 2GB IDE2: ATA 133 / Ultra DMA Mode 6, Supports up to 4 IDE devices Floppy Port: Supports up to 2 floppy disk drives Audio: LAN: 5.1 channels AC’97 Audio Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN Hardware Monitor: CPU temperature sensing, PCI slots: AGP slot: AMR slot: USB 2.0: Chassis temperature sensing, CPU overheat shutdown to protect CPU life (ASRock U-COP)(see CAUTION 1), CPU fan tachometer, Chassis fan tachometer, Voltage monitoring: +12V, +5V, +3V, Vcore 2 slots with PCI Specification 2.2 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 2) 1 slot, supports ASRock MR card (Optional) 6 USB 2.0 ports: includes 4 default USB 2.0 ports on the rear panel, plus one connector to support 2 additional USB 2.0 ports (see CAUTION 3) ASRock I/OTM: 1 PS/2 mouse port, 1 PS/2 keyboard port, 1 VGA port, 1 parallel port: ECP/EPP support, 1 RJ 45 port, 4 default USB 2.0 ports, 1 Game port, Audio Jack: Line Out / Line In / Microphone 5

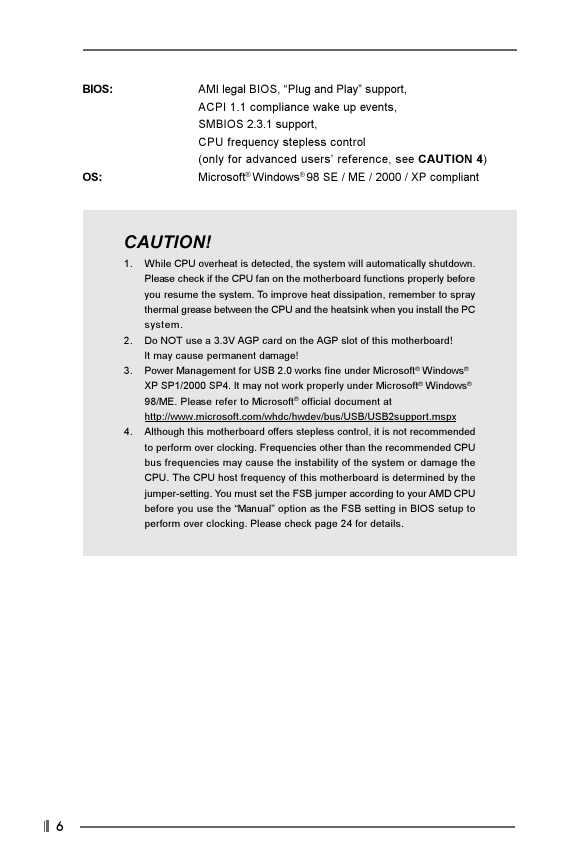

BIOS: AMI legal BIOS, “Plug and Play” support, ACPI 1.1 compliance wake up events, SMBIOS 2.3.1 support, CPU frequency stepless control OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant (only for advanced users’ reference, see CAUTION 4) CAUTION! 1. While CPU overheat is detected, the system will automatically shutdown. Please check if the CPU fan on the motherboard functions properly before you resume the system. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system. 2. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard! It may cause permanent damage! 3. Power Management for USB 2.0 works fine under Microsoft® Windows® XP SP1/2000 SP4. It may not work properly under Microsoft® Windows® 98/ME. Please refer to Microsoft® official document at http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx 4. Although this motherboard offers stepless control, it is not recommended to perform over clocking. Frequencies other than the recommended CPU bus frequencies may cause the instability of the system or damage the CPU. The CPU host frequency of this motherboard is determined by the jumper-setting. You must set the FSB jumper according to your AMD CPU before you use the “Manual” option as the FSB setting in BIOS setup to perform over clocking. Please check page 24 for details. 6

1.3 Motherboard Layout (K7S41) 1 2 3 4 5 6 19.8cm (7.8-in) PS2 Mouse PS2_USB_PWR1 1 CPU_FAN1 K e y b o a r d P S 2 V G A 1 P A R A L L E L P O R T USB 2.0 T: USB0 B: USB1 Top: RJ-45 30 29 28 27 26 25 24 23 22 21 USB 2.0 T: USB2 B: USB3 Line Out Line In Mic In G A M E P O R T AUDIO CODEC AUDIO1 1 JR1 JL1 COM1 1 2MB BIOS 1 R W P X T A ) n i - 6 . 9 ( m c 4 . 4 2 IDE2 IDE1 ) e l u d o m n i p - 4 8 1 , t i b 2 7 / 4 6 ( 1 R D D ) e l u d o m n i p - 4 8 1 , t i b 2 7 / 4 6 ( 2 R D D 3 3 1 A T A SiS 963L 7 8 9 10 11 12 13 14 LAN PHY 1 1 1 1 1 1 1 1 FID0 FID1 FID2 FID3 FID4 ` SiS 741 FSB_SEL2 FSB_SEL1 FSB_SEL0 Chipset AGP 8X 1.5V_AGP1 PCI 1 PCI 2 K7S41 FSB400 DDR400 Super I/O AMR1 IR1 1 USB45 1 CMOS Battery CLRCMOS1 CLRCMOS2 FLOPPY1 5.1CH USB 2.0 CHA_FAN1 PWR_LED1 1 PLED PWRBTN PANEL 1 SPEAKER1 1 1 HDLED RST 20 19 18 17 16 15 1 2 3 4 5 6 7 8 9 PS2_USB_PWR1 Jumper 16 Chassis Speaker Connector (SPEAKER 1) CPU Fan Connector (CPU_FAN1) 17 Floppy Connector (FLOPPY1) CPU Socket 18 USB 2.0 Connector (USB45, Blue) North Bridge Controller 19 Infrared Module Connector (IR1) 184-pin DDR DIMM Slots (DDR 1- 2) 20 AMR Slot (AMR1) ATX Power Connector (ATXPWR1) 21 Flash Memory Secondary IDE Connector (IDE2, Black) 22 Serial Port Connector (COM1) 23 24 25 JL1 Jumper JR1 Jumper Front Panel Audio Connector (AUDIO1) Primary IDE Connector (IDE1, Blue) AGP Slot (1.5V_AGP1) 10 South Bridge Controller 11 Clear CMOS (CLRCMOS1, solder points) 26 PCI Slots (PCI 1- 2) 12 Clear CMOS (CLRCMOS2, 2-pin jumper) 13 Chassis Fan Connector (CHA_FAN1) 14 15 Power LED Connector (PWR_LED1) System Panel Connector (PANEL1) 27 28 29 30 FSB Select Jumpers (FSB_SEL0/FSB_SEL1/FSB_SEL2) Internal Audio Connector: CD1 (Black) Internal Audio Connector: AUX1 (White) FID Jumpers (FID0, FID1, FID2, FID3, FID4) 7

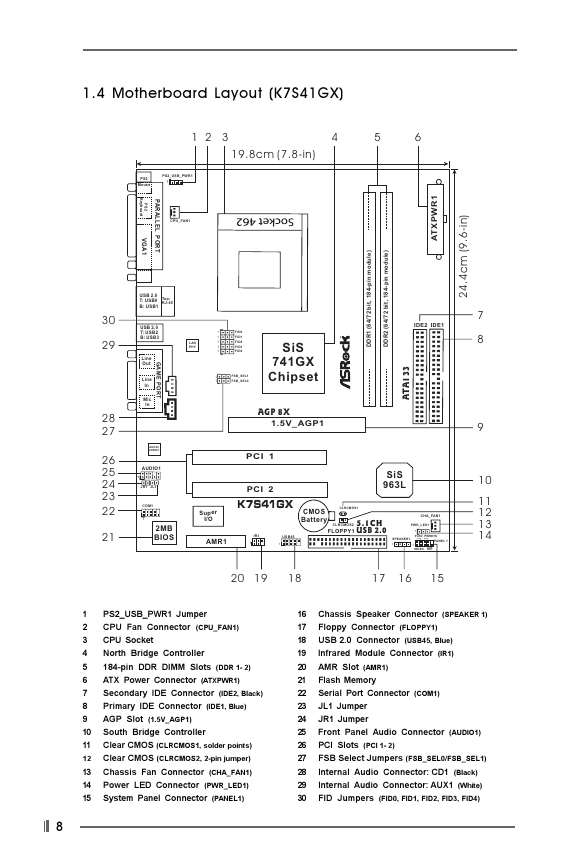

1.4 Motherboard Layout (K7S41GX) 1 2 3 4 5 6 19.8cm (7.8-in) PS2 Mouse PS2_USB_PWR1 1 CPU_FAN1 K e y b o a r d P S 2 V G A 1 P A R A L L E L P O R T USB 2.0 T: USB0 B: USB1 Top: RJ-45 30 29 28 27 26 25 24 23 22 21 USB 2.0 T: USB2 B: USB3 Line Out Line In Mic In G A M E P O R T AUDIO CODEC AUDIO1 1 JR1 JL1 COM1 1 LAN PHY 1 1 1 1 1 FID0 FID1 FID2 FID3 FID4 1 1 FSB_SEL1 FSB_SEL0 SiS ` 741GX Chipset AGP 8X 1.5V_AGP1 PCI 1 PCI 2 K7S41GX Super I/O 1 R W P X T A ) n i - 6 . 9 ( m c 4 . 4 2 IDE2 IDE1 ) e l u d o m n i p - 4 8 1 , t i b 2 7 / 4 6 ( 1 R D D ) e l u d o m n i p - 4 8 1 , t i b 2 7 / 4 6 ( 2 R D D 3 3 1 A T A SiS 963L 7 8 9 10 11 12 13 14 2MB BIOS AMR1 IR1 1 USB45 1 CMOS Battery CLRCMOS1 CLRCMOS2 FLOPPY1 5.1CH USB 2.0 CHA_FAN1 PWR_LED1 1 PLED PWRBTN PANEL 1 SPEAKER1 1 1 HDLED RST 1 2 3 4 5 6 7 8 9 20 19 18 17 16 15 PS2_USB_PWR1 Jumper 16 Chassis Speaker Connector (SPEAKER 1) CPU Fan Connector (CPU_FAN1) 17 Floppy Connector (FLOPPY1) CPU Socket 18 USB 2.0 Connector (USB45, Blue) North Bridge Controller 19 Infrared Module Connector (IR1) 184-pin DDR DIMM Slots (DDR 1- 2) 20 AMR Slot (AMR1) ATX Power Connector (ATXPWR1) 21 Flash Memory Secondary IDE Connector (IDE2, Black) 22 Serial Port Connector (COM1) Primary IDE Connector (IDE1, Blue) AGP Slot (1.5V_AGP1) 10 South Bridge Controller 23 24 25 JL1 Jumper JR1 Jumper Front Panel Audio Connector (AUDIO1) 11 Clear CMOS (CLRCMOS1, solder points) 26 PCI Slots (PCI 1- 2) 12 Clear CMOS (CLRCMOS2, 2-pin jumper) 13 Chassis Fan Connector (CHA_FAN1) 14 15 Power LED Connector (PWR_LED1) System Panel Connector (PANEL1) 27 28 29 30 FSB Select Jumpers (FSB_SEL0/FSB_SEL1) Internal Audio Connector: CD1 (Black) Internal Audio Connector: AUX1 (White) FID Jumpers (FID0, FID1, FID2, FID3, FID4) 8
