This manual will show you how to use your FUJIFILM DIGITAL CAMERA FinePix F601 ZOOM correctly. Please follow the instructions carefully. BL00119-200 (1)

Warning To prevent fire or shock hazard, do not expose the unit to rain or moisture. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. For customers in the U.S.A. FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The graphical symbols are located on the bottom of the case. 2 CAUTION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: — Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver. — Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. You are cautioned that any changes or modifications not expressly approved in this manual could void the user’s authority to operate the equipment. Notes on the Grant: To comply with Part 15 of the FCC rules, this product must be used with a Fujifilm-specified ferrite-core USB cable and DC supply cord. For customers in Canada CAUTION This Class B digital apparatus complies with Canadian ICES-003. Please read the Safety Notes (➡P.130) and make sure you understand them before using the camera. 3

Contents Warning ............................................................ 2 Preface ............................................................. 6 Camera Features and Accessories .................. 7 Nomenclature/Attaching the strap/sample display ... 8 1 Getting Ready LOADING THE BATTERY AND SmartMedia™ ... 11 CHARGING THE BATTERY ............................... 14 Using the AC Power Adapter .......................... 14 SWITCHING ON AND OFF • SETTING THE DATE AND TIME ....................... 15 2 Basic Photography BASIC OPERATION ........................................... 18 Using the Menus ............................................. 20 TAKING PICTURES (AUTO MODE) .................. 22 I Viewfinder Lamp Display ............................ 26 Number of Available Frames .......................... 27 USING AF/AE LOCK .......................................... 28 DIGITAL ZOOM .................................................. 30 FRAMING GUIDELINE FUNCTION ................... 31 VIEWING YOUR IMAGES (PLAYBACK) ........... 32 Fast Forwarding Images ................................. 32 MULTI-FRAME PLAYBACK ............................... 33 PLAYBACK ZOOM ..............................................34 Saving Trimmed Images ................................. 35 ERASING SINGLE FRAME ................................ 36 USING A TV MONITOR (USING THE CRADLE) ... 37 4 3 Advanced Features Photography SELECTING THE PHOTOGRAPHY MODE ...... 38 PHOTOGRAPHY MODE E SCENE POSITION ................................... 39 m Portrait • , Landscape • . Sports • / Night Scene • A 40-frame continuous shooting WMANUAL .................................................. 41 T MOVIE (VIDEO) ....................................... 42 Y AUDIO RECORDING ............................... 45 Audio Indexing .......................................... 47 PHOTOGRAPHY MENU OPERATION .............. 48 PHOTOGRAPHY MENU OPTIONS ................... 50 PHOTOGRAPHY MENU Y VOICE MEMO (DURING SHOOTING) .... 52 = SELF-TIMER PHOTOGRAPHY ............... 54 I FLASH ...................................................... 56 c Auto Flash Mode ................................ 57 n Red-Eye Reduction ............................ 57 z Forced Flash ...................................... 58 v Slow Synchro ..................................... 58 b Suppressed Flash .............................. 59 t CONTINUOUS SHOOTING ..................... 60 [ Auto Bracketing .................................. 61 e MACRO (CLOSE-UP) PHOTOGRAPHY ... 62 " FOCUS MODE ......................................... 63 AF Autofocus • AF AREA • MF Manual focus [(EXPOSURE) MODE] MODE ........................ 66 Programed Auto • Aperture-priority Auto • Shutter-priority Auto • Manual exposure S PHOTOMETRY ........................................ 68 d EV (EXPOSURE COMPENSATION) ....... 69 x FLASH (FLASH BRIGHTNESS ADJUSTMENT) ........................................ 70 a WHITE BALANCE (SELECTING THE LIGHT SOURCE) ....... 71 f SENSITIVITY ............................................ 72 K SHARPNESS ........................................... 73 4 Advanced Features Playback PLAYING BACK MOVIES (VIDEO) .................... 74 PLAYING BACK VOICE MEMOS ....................... 76 PLAYING BACK AUDIO RECORDINGS ............ 78 Setting Audio Index Markers ........................... 80 Removing Audio Index Markers ...................... 80 PLAYBACK MENU p ERASING SINGLE • ALL FRAMES/FORMATTING .................. 82 Y VOICE MEMO (DURING PLAYBACK) ..... 86 i HOW TO SPECIFY PRINT OPTIONS (DPOF) ... 89 i DPOF SET FRAME .................................. 90 5 Settings y SETTING THE FILE SIZE ............................ 93 g USING THE SET–UP MENU ....................... 96 I SET–UP Menu Options ............................. 97 SET–UP g IMAGE DISPLAY .......................................... 98 Preview Zoom ............................................... 98 Selecting Recorded Images ......................... 99 g AUTO POWER OFF ................................... 100 g LCD MONITOR BRIGHTNESS/VOLUME .. 101 6 PC Connection PC (PERSONAL COMPUTER) IN CONNECTION ... 102 CONNECTING AT DSC MODE ........................ 104 CONNECTING AT PC-CAMERA MODE .......... 106 DISCONNECTING FROM THE PC (Important — always use this procedure.) ........ 108 System Expansion Options ........................... 110 Accessories Guide ........................................ 111 Notes on Using Your Camera Correctly ....... 113 Notes on the Power Supply .......................... 114 Notes on Using the Battery (NP-60)......... 114 AC Power Adapter .................................. 116 Notes on the SmartMedia™ ......................... 117 Warning Displays .......................................... 119 Troubleshooting ............................................ 122 Specifications ................................................ 126 Explanation of Terms .................................... 128 Safety Notes ................................................. 130 EC Declaration of Conformity ....................... 133 1 2 3 4 5 6 5

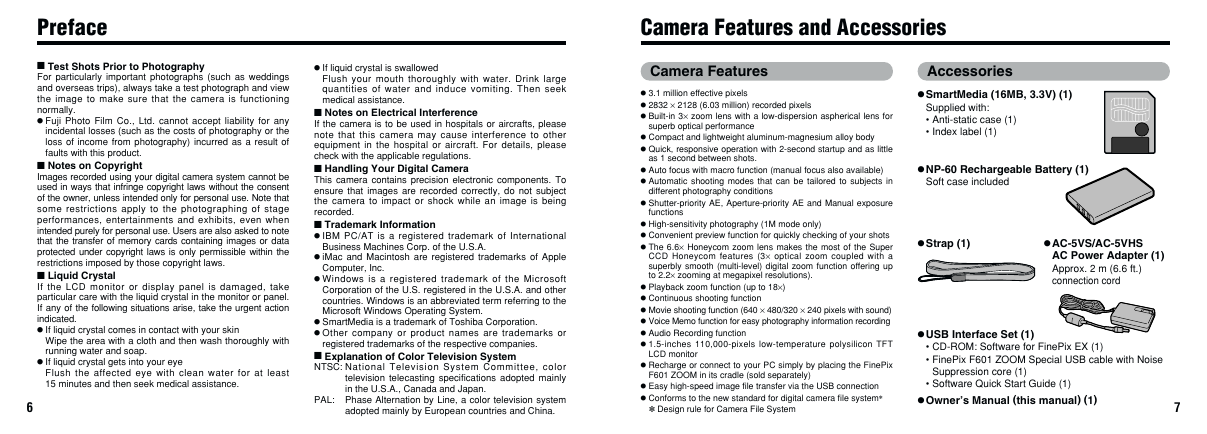

Preface I Test Shots Prior to Photography For particularly important photographs (such as weddings and overseas trips), always take a test photograph and view the image to make sure that the camera is functioning normally. h Fuji Photo Film Co., Ltd. cannot accept liability for any incidental losses (such as the costs of photography or the loss of income from photography) incurred as a result of faults with this product. I Notes on Copyright Images recorded using your digital camera system cannot be used in ways that infringe copyright laws without the consent of the owner, unless intended only for personal use. Note that some restrictions apply to the photographing of stage performances, entertainments and exhibits, even when intended purely for personal use. Users are also asked to note that the transfer of memory cards containing images or data protected under copyright laws is only permissible within the restrictions imposed by those copyright laws. I Liquid Crystal If the LCD monitor or display panel is damaged, take particular care with the liquid crystal in the monitor or panel. If any of the following situations arise, take the urgent action indicated. h If liquid crystal comes in contact with your skin Wipe the area with a cloth and then wash thoroughly with running water and soap. h If liquid crystal gets into your eye Flush the affected eye with clean water for at least 15 minutes and then seek medical assistance. 6 h If liquid crystal is swallowed Flush your mouth thoroughly with water. Drink large quantities of water and induce vomiting. Then seek medical assistance. I Notes on Electrical Interference If the camera is to be used in hospitals or aircrafts, please note that this camera may cause interference to other equipment in the hospital or aircraft. For details, please check with the applicable regulations. I Handling Your Digital Camera This camera contains precision electronic components. To ensure that images are recorded correctly, do not subject the camera to impact or shock while an image is being recorded. I Trademark Information h IBM PC/AT is a registered trademark of International Business Machines Corp. of the U.S.A. h iMac and Macintosh are registered trademarks of Apple Computer, Inc. h Windows is a registered trademark of the Microsoft Corporation of the U.S. registered in the U.S.A. and other countries. Windows is an abbreviated term referring to the Microsoft Windows Operating System. h SmartMedia is a trademark of Toshiba Corporation. h Other company or product names are trademarks or registered trademarks of the respective companies. I Explanation of Color Television System NTSC: National Television System Committee, color television telecasting specifications adopted mainly in the U.S.A., Canada and Japan. PAL: Phase Alternation by Line, a color television system adopted mainly by European countries and China. Camera Features and Accessories Camera Features h 3.1 million effective pixels h 2832 × 2128 (6.03 million) recorded pixels h Built-in 3× zoom lens with a low-dispersion aspherical lens for superb optical performance h Compact and lightweight aluminum-magnesium alloy body h Quick, responsive operation with 2-second startup and as little as 1 second between shots. h Auto focus with macro function (manual focus also available) h Automatic shooting modes that can be tailored to subjects in different photography conditions h Shutter-priority AE, Aperture-priority AE and Manual exposure functions Accessories hSmartMedia (16MB, 3.3V) (1) Supplied with: • Anti-static case (1) • Index label (1) h NP-60 Rechargeable Battery (1) Soft case included h High-sensitivity photography (1M mode only) h Convenient preview function for quickly checking of your shots h The 6.6× Honeycom zoom lens makes the most of the Super CCD Honeycom features (3× optical zoom coupled with a superbly smooth (multi-level) digital zoom function offering up to 2.2× zooming at megapixel resolutions). h Playback zoom function (up to 18×) h Continuous shooting function h Movie shooting function (640 × 480/320 × 240 pixels with sound) h Voice Memo function for easy photography information recording h Audio Recording function h 1.5-inches 110,000-pixels low-temperature polysilicon TFT LCD monitor h Recharge or connect to your PC simply by placing the FinePix F601 ZOOM in its cradle (sold separately) h Easy high-speed image file transfer via the USB connection h Conforms to the new standard for digital camera file system✽ ✽ Design rule for Camera File System h Strap (1) h AC-5VS/AC-5VHS AC Power Adapter (1) Approx. 2 m (6.6 ft.) connection cord h USB Interface Set (1) • CD-ROM: Software for FinePix EX (1) • FinePix F601 ZOOM Special USB cable with Noise Suppression core (1) • Software Quick Start Guide (1) h Owner’s Manual (this manual) (1) 7

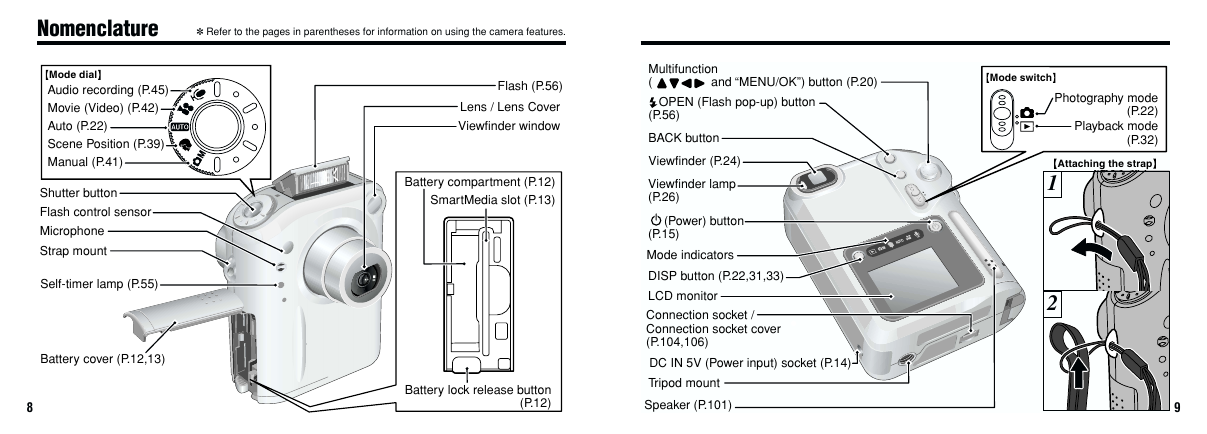

Nomenclature Mode dial Audio recording (P.45) Movie (Video) (P.42) Auto (P.22) Scene Position (P.39) Manual (P.41) Shutter button Flash control sensor Microphone Strap mount Self-timer lamp (P.55) Battery cover (P.12,13) 8 ✽ Refer to the pages in parentheses for information on using the camera features. Flash (P.56) Lens / Lens Cover Viewfinder window Battery compartment (P.12) SmartMedia slot (P.13) Battery lock release button (P.12) Multifunction ( and “MENU/OK”) button (P.20) OPEN (Flash pop-up) button (P.56) BACK button Viewfinder (P.24) Viewfinder lamp (P.26) (Power) button (P.15) Mode indicators DISP button (P.22,31,33) LCD monitor Connection socket / Connection socket cover (P.104,106) DC IN 5V (Power input) socket (P.14) Tripod mount Speaker (P.101) Mode switch Photography mode (P.22) Playback mode (P.32) Attaching the strap 1 2 9

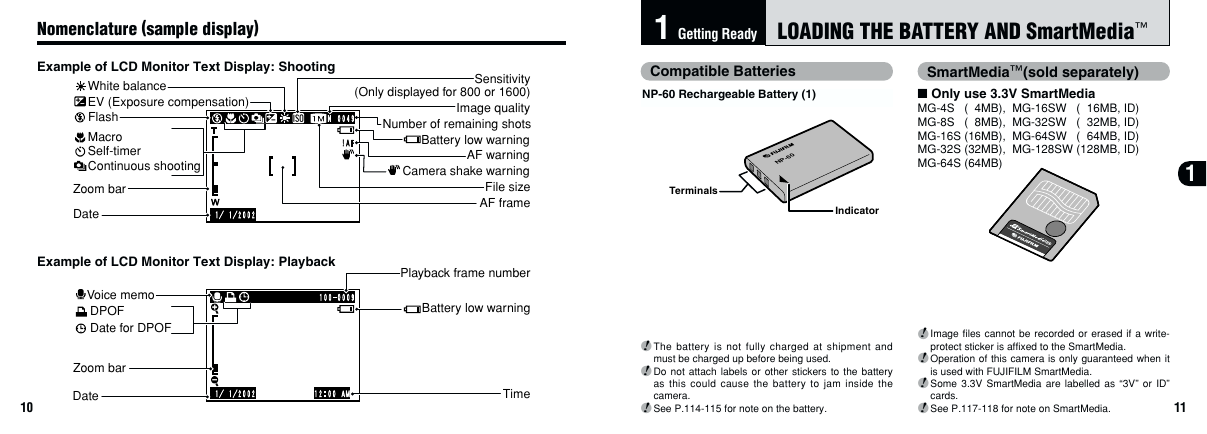

Nomenclature (sample display) Example of LCD Monitor Text Display: Shooting White balance EV (Exposure compensation) Flash Macro Self-timer Continuous shooting Zoom bar Date Example of LCD Monitor Text Display: Playback Voice memo DPOF Date for DPOF Zoom bar Date 10 Sensitivity (Only displayed for 800 or 1600) Image quality Number of remaining shots Battery low warning AF warning Camera shake warning File size AF frame Playback frame number Battery low warning Time 1 Getting Ready LOADING THE BATTERY AND SmartMedia™ Compatible Batteries NP-60 Rechargeable Battery (1) P -6 0 N Terminals Indicator SmartMedia™(sold separately) I Only use 3.3V SmartMedia MG-4S ( 4MB), MG-16SW ( 16MB, ID) MG-8S ( 8MB), MG-32SW ( 32MB, ID) MG-16S (16MB), MG-64SW ( 64MB, ID) MG-32S (32MB), MG-128SW (128MB, ID) MG-64S (64MB) G! The battery is not fully charged at shipment and must be charged up before being used. G! Do not attach labels or other stickers to the battery as this could cause the battery to jam inside the camera. G! See P.114-115 for note on the battery. G! Image files cannot be recorded or erased if a write- protect sticker is affixed to the SmartMedia. G! Operation of this camera is only guaranteed when it is used with FUJIFILM SmartMedia. G! Some 3.3V SmartMedia are labelled as “3V” or ID” cards. G! See P.117-118 for note on SmartMedia. 1 11

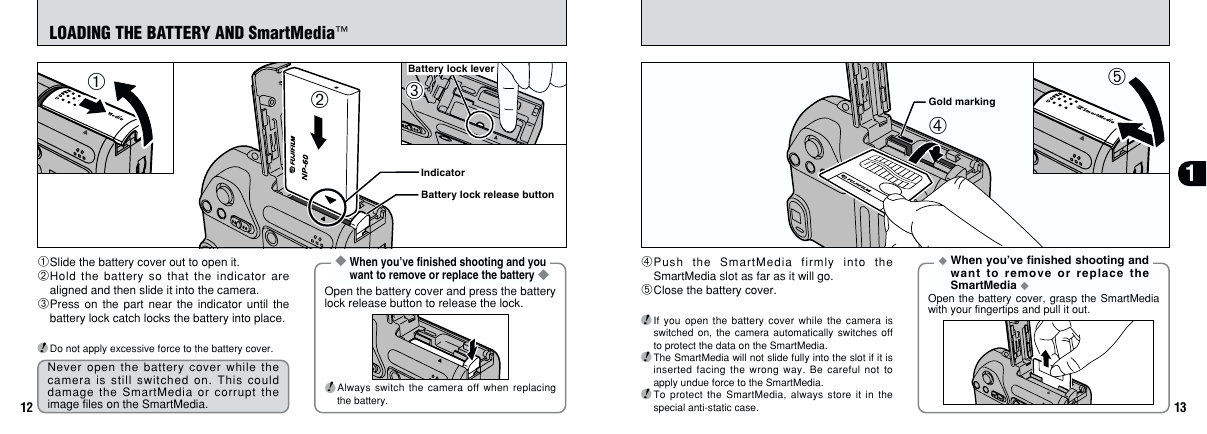

LOADING THE BATTERY AND SmartMedia™ 01 Battery lock lever 03 02 1Slide the battery cover out to open it. 2Hold the battery so that the indicator are aligned and then slide it into the camera. 3Press on the part near the indicator until the battery lock catch locks the battery into place. G! Do not apply excessive force to the battery cover. Never open the battery cover while the camera is still switched on. This could damage the SmartMedia or corrupt the image files on the SmartMedia. 12 Indicator Battery lock release button N When you’ve finished shooting and you want to remove or replace the battery N Open the battery cover and press the battery lock release button to release the lock. 4Push the SmartMedia firmly into the SmartMedia slot as far as it will go. 5Close the battery cover. G! Always switch the camera off when replacing the battery. special anti-static case. G! If you open the battery cover while the camera is switched on, the camera automatically switches off to protect the data on the SmartMedia. G! The SmartMedia will not slide fully into the slot if it is inserted facing the wrong way. Be careful not to apply undue force to the SmartMedia. G! To protect the SmartMedia, always store it in the 05 Gold marking 04 N When you’ve finished shooting and want to remove or replace the SmartMedia N Open the battery cover, grasp the SmartMedia with your fingertips and pull it out. 1 13

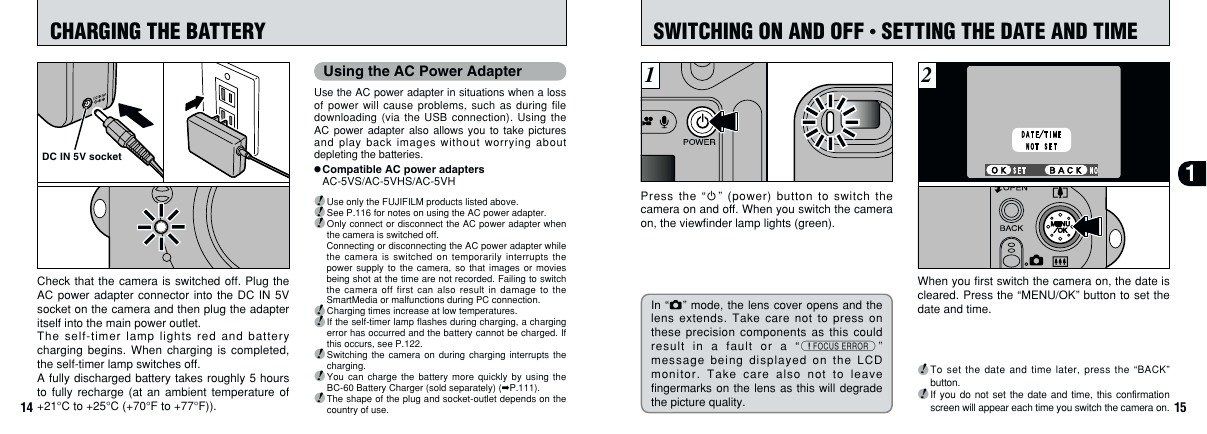

CHARGING THE BATTERY SWITCHING ON AND OFF • SETTING THE DATE AND TIME DC IN 5V socket Check that the camera is switched off. Plug the AC power adapter connector into the DC IN 5V socket on the camera and then plug the adapter itself into the main power outlet. The self-timer lamp lights red and battery charging begins. When charging is completed, the self-timer lamp switches off. A fully discharged battery takes roughly 5 hours to fully recharge (at an ambient temperature of +21°C to +25°C (+70°F to +77°F)). 14 Using the AC Power Adapter Use the AC power adapter in situations when a loss of power will cause problems, such as during file downloading (via the USB connection). Using the AC power adapter also allows you to take pictures and play back images without worrying about depleting the batteries. h Compatible AC power adapters AC-5VS/AC-5VHS/AC-5VH 1 2 G! Use only the FUJIFILM products listed above. G! See P.116 for notes on using the AC power adapter. G! Only connect or disconnect the AC power adapter when the camera is switched off. Connecting or disconnecting the AC power adapter while the camera is switched on temporarily interrupts the power supply to the camera, so that images or movies being shot at the time are not recorded. Failing to switch the camera off first can also result in damage to the SmartMedia or malfunctions during PC connection. G! Charging times increase at low temperatures. G! If the self-timer lamp flashes during charging, a charging error has occurred and the battery cannot be charged. If this occurs, see P.122. G! Switching the camera on during charging interrupts the G! You can charge the battery more quickly by using the G! The shape of the plug and socket-outlet depends on the BC-60 Battery Charger (sold separately) (➡P.111). charging. country of use. Press the “O ” (power) button to switch the camera on and off. When you switch the camera on, the viewfinder lamp lights (green). In “U” mode, the lens cover opens and the lens extends. Take care not to press on these precision components as this could result in a fault or a “¨ ” message being displayed on the LCD monitor. Take care also not to leave fingermarks on the lens as this will degrade the picture quality. When you first switch the camera on, the date is cleared. Press the “MENU/OK” button to set the date and time. G! To set the date and time later, press the “BACK” button. G! If you do not set the date and time, this confirmation screen will appear each time you switch the camera on. 1 15
