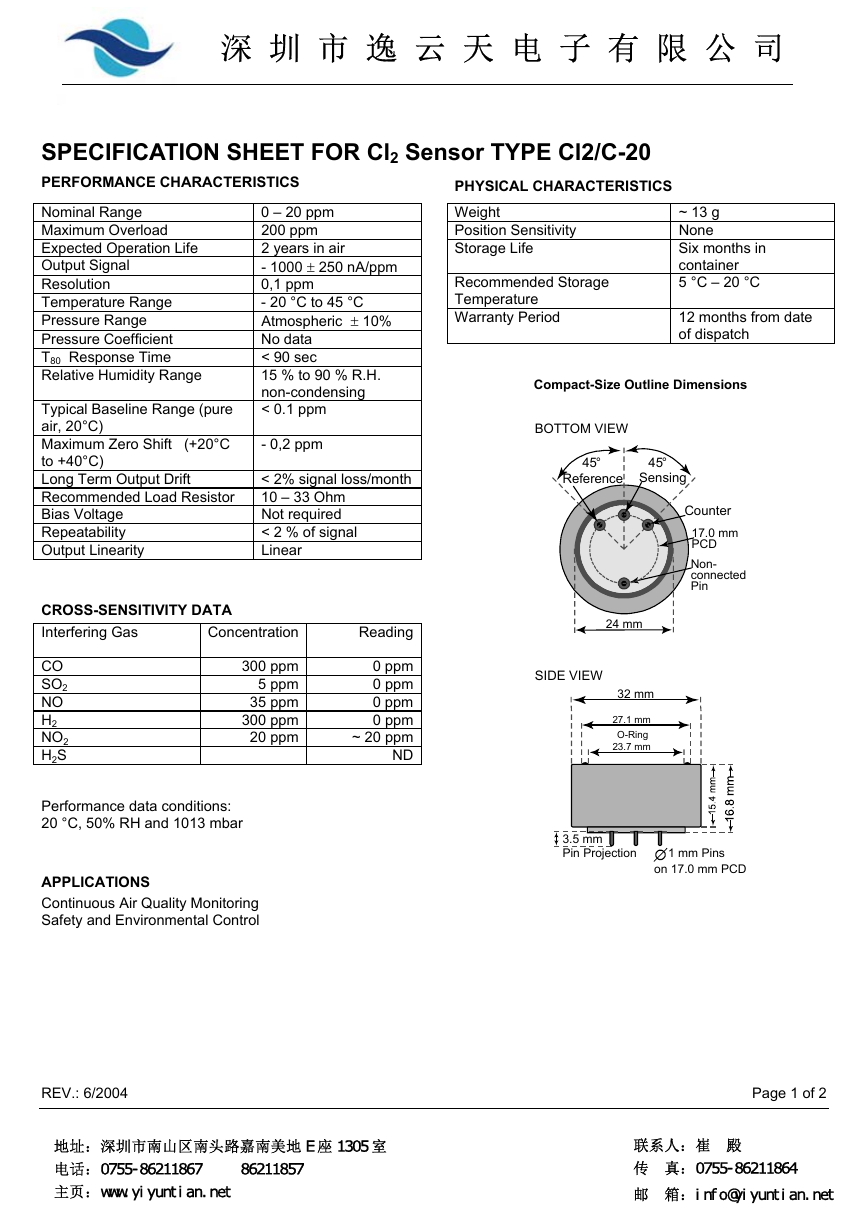

SPECIFICATION SHEET FOR Cl2 Sensor TYPE Cl2/C-20
PERFORMANCE CHARACTERISTICS
0 – 20 ppm
200 ppm
2 years in air
- 1000 ± 250 nA/ppm
0,1 ppm
- 20 °C to 45 °C
Atmospheric ± 10%
No data
< 90 sec
15 % to 90 % R.H.
non-condensing
< 0.1 ppm
- 0,2 ppm
< 2% signal loss/month
10 – 33 Ohm
Not required
< 2 % of signal
Linear
Reading
0 ppm
0 ppm
0 ppm
0 ppm
~ 20 ppm
ND
Nominal Range
Maximum Overload
Expected Operation Life
Output Signal
Resolution
Temperature Range
Pressure Range
Pressure Coefficient
T80 Response Time
Relative Humidity Range
Typical Baseline Range (pure
air, 20°C)
Maximum Zero Shift (+20°C
to +40°C)
Long Term Output Drift
Recommended Load Resistor
Bias Voltage
Repeatability
Output Linearity
CROSS-SENSITIVITY DATA
Interfering Gas
Concentration
300 ppm
5 ppm
35 ppm
300 ppm
20 ppm
CO
SO2
NO
H2
NO2
H2S
Performance data conditions:
20 °C, 50% RH and 1013 mbar
APPLICATIONS
Continuous Air Quality Monitoring
Safety and Environmental Control
PHYSICAL CHARACTERISTICS
Weight
Position Sensitivity
Storage Life
Recommended Storage
Temperature
Warranty Period
~ 13 g
None
Six months in
container
5 °C – 20 °C
12 months from date
of dispatch
Compact-Size Outline Dimensions
BOTTOM VIEW
45°
45°
Reference Sensing
Counter
17.0 mm
PCD
Non-
connected
Pin
SIDE VIEW
24 mm
32 mm
27.1 mm
O-Ring
23.7 mm
3.5 mm
Pin Projection
1 mm Pins
on 17.0 mm PCD
REV.: 6/2004
地址:深圳市南山区南头路嘉南美地 E 座 1305 室
电话:0755-86211867 86211857
主页:www.yiyuntian.net
Page 1 of 2
联系人:崔 殿
传 真:0755-86211864
邮 箱:info@yiyuntian.net
深 圳 市 逸 云 天 电 子 有 限 公 司
SPECIFICATION SHEET FOR Cl2 Sensor TYPE Cl2/C-20
TEMPERATURE DEPENDENCE
The output of an electrochemical sensor varies with temperature. The graphs below show the variation in output with
temperature for this type of sensor. The results are shown in the graphs as a mean for a batch of sensors, along with
confidence intervals corresponding to ±3 times the standard deviation. The sensitivity dependence is expressed as a
percentage of the signal at 20 °C.
Sensitivity Temperature Dependence
Mean
+3SD
-3SD
)
C
°
0
2
o
t
d
e
c
n
e
r
e
f
e
r
(
t
u
p
t
u
O
110%
100%
90%
80%
70%
60%
50%
-20
-10
0
10
20
30
40
Temperature (°C)
The baseline is virtually not affected by changes in temperature.
The data contained in this document is for guidance only. Membrapor AG accepts no liability for any consequential losses, injury or damage resulting
from the use of this document or the information contained within it. The data is given for guidance only. Customers should test under their own
conditions, to ensure that the sensors are suitable for their own requirements.
