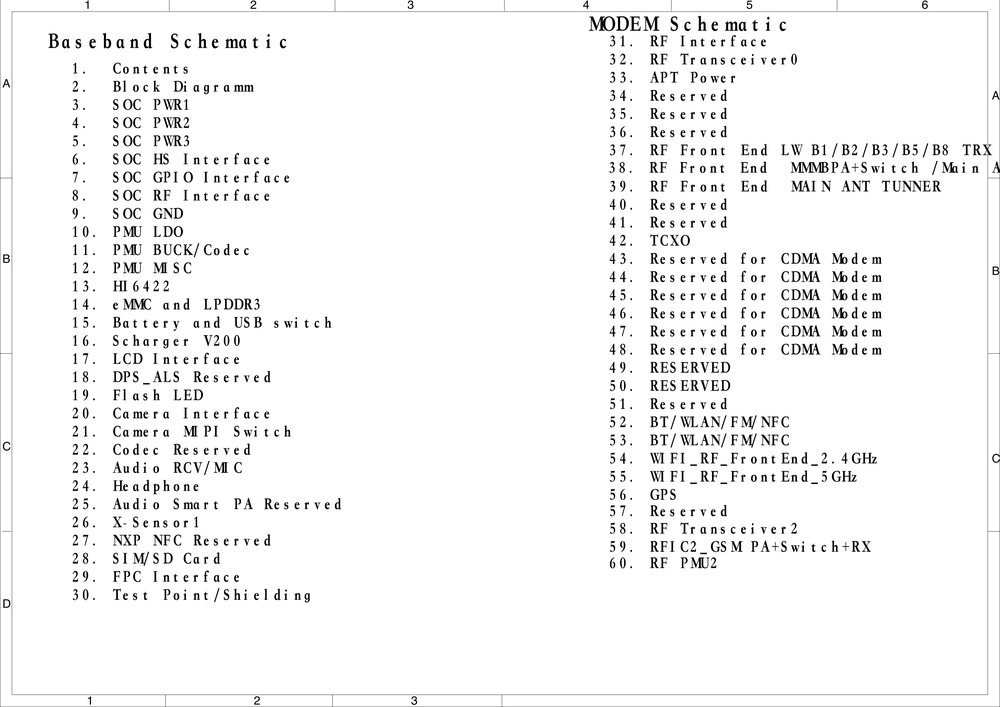

1 2 3 Baseband Schematic A B C D Contents 1. Block Diagramm 2. SOC PWR1 3. SOC PWR2 4. SOC PWR3 5. SOC HS Interface 6. SOC GPIO Interface 7. SOC RF Interface 8. SOC GND 9. 10. PMU LDO 11. PMU BUCK/Codec 12. PMU MISC 13. HI6422 14. eMMC and LPDDR3 15. Battery and USB switch 16. Scharger V200 17. LCD Interface 18. DPS_ALS Reserved 19. Flash LED 20. Camera Interface 21. Camera MIPI Switch 22. Codec Reserved 23. Audio RCV/MIC 24. Headphone 25. Audio Smart PA Reserved 26. X-Sensor1 27. NXP NFC Reserved 28. SIM/SD Card 29. FPC Interface 30. Test Point/Shielding 1 2 3 5 6 A 4 MODEM Schematic 31. RF Interface 32. RF Transceiver0 33. APT Power 34. Reserved 35. Reserved 36. Reserved 37. RF Front End LW B1/B2/B3/B5/B8 TRX 38. RF Front End MMMBPA Switch /Main ANT 39. RF Front End MAIN ANT TUNNER 40. Reserved 41. Reserved 42. TCXO 43. Reserved for CDMA Modem 44. Reserved for CDMA Modem 45. Reserved for CDMA Modem 46. Reserved for CDMA Modem 47. Reserved for CDMA Modem 48. Reserved for CDMA Modem 49. RESERVED 50. RESERVED 51. Reserved 52. BT/WLAN/FM/NFC 53. BT/WLAN/FM/NFC 54. WIFI_RF_FrontEnd_2.4GHz 55. WIFI_RF_FrontEnd_5GHz 56. GPS 57. Reserved 58. RF Transceiver2 59. RFIC2_GSM PA Switch RX 60. RF PMU2 C B
