【资料简介】
【资料截图】



【资料目录】

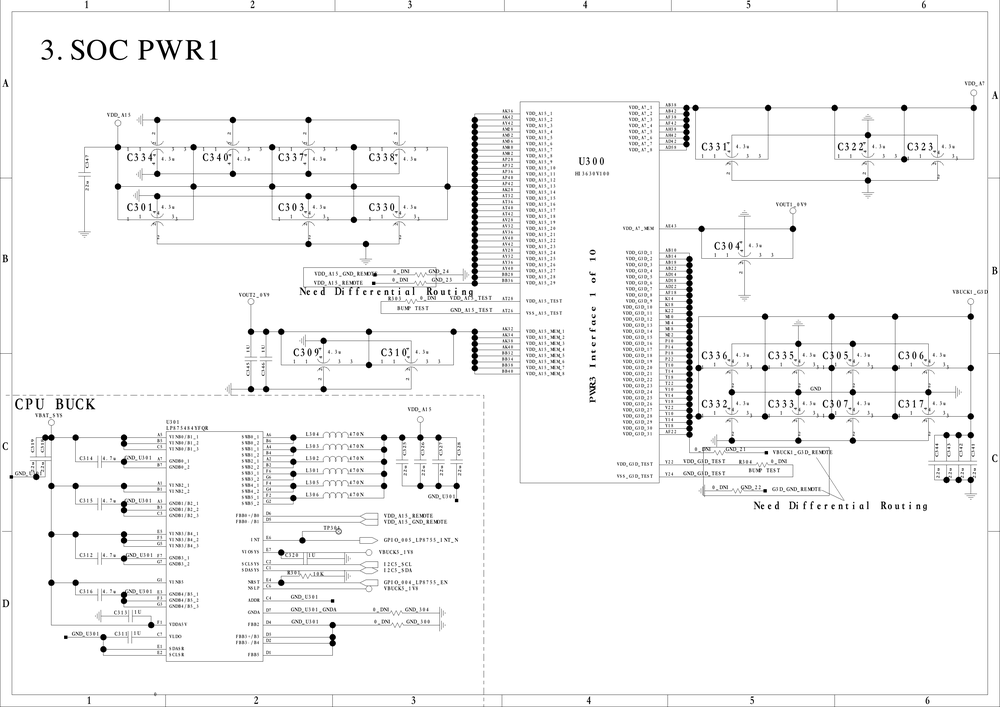

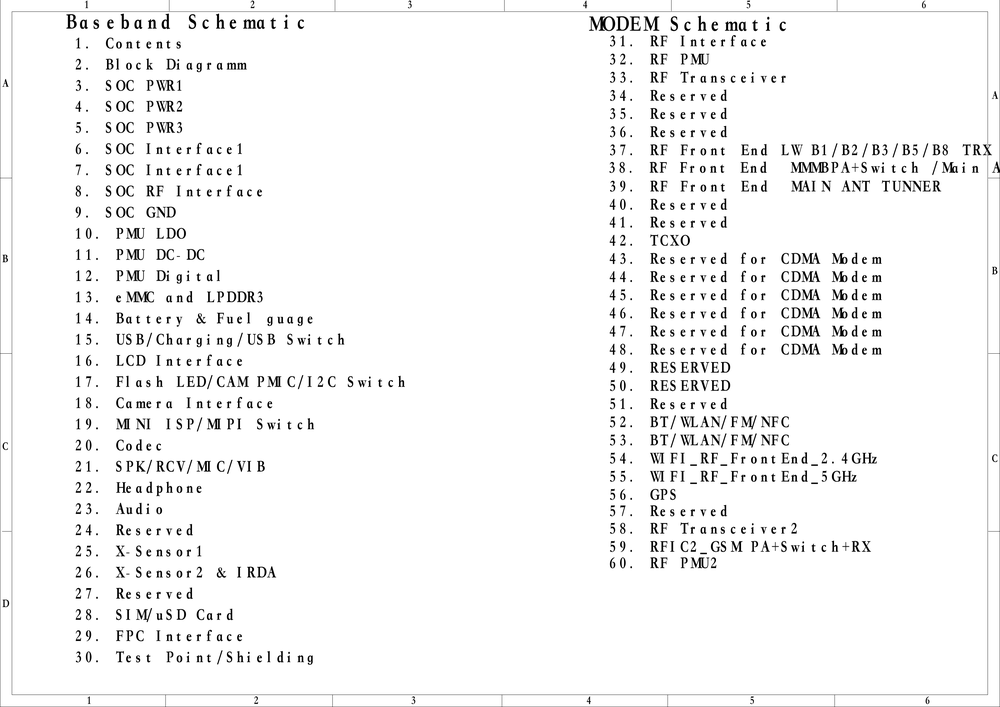

1 2 3 Baseband Schematic 1. Contents 2. Block Diagramm 3. SOC PWR1 4. SOC PWR2 5. SOC PWR3 6. SOC Interface1 7. SOC Interface1 8. SOC RF Interface 9. SOC GND 10. PMU LDO 11. PMU DC-DC 12. PMU Digital 13. eMMC and LPDDR3 14. Battery & Fuel guage 15. USB/Charging/USB Switch 16. LCD Interface 17. Flash LED/CAM PMIC/I2C Switch 18. Camera Interface 19. MINI ISP/MIPI Switch 20. Codec 21. SPK/RCV/MIC/VIB 22. Headphone 23. Audio 24. Reserved 25. X-Sensor1 26. X-Sensor2 & IRDA 27. Reserved 28. SIM/uSD Card 29. FPC Interface 30. Test Point/Shielding A B C D 5 A 6 4 MODEM Schematic 31. RF Interface 32. RF PMU 33. RF Transceiver 34. Reserved 35. Reserved 36. Reserved 37. RF Front End LW B1/B2/B3/B5/B8 TRX 38. RF Front End MMMBPA Switch /Main ANT 39. RF Front End MAIN ANT TUNNER 40. Reserved 41. Reserved 42. TCXO 43. Reserved for CDMA Modem 44. Reserved for CDMA Modem 45. Reserved for CDMA Modem 46. Reserved for CDMA Modem 47. Reserved for CDMA Modem 48. Reserved for CDMA Modem 49. RESERVED 50. RESERVED 51. Reserved 52. BT/WLAN/FM/NFC 53. BT/WLAN/FM/NFC 54. WIFI_RF_FrontEnd_2.4GHz 55. WIFI_RF_FrontEnd_5GHz 56. GPS 57. Reserved 58. RF Transceiver2 59. RFIC2_GSM PA Switch RX 60. RF PMU2 B C 1 2 3 4 5 6
