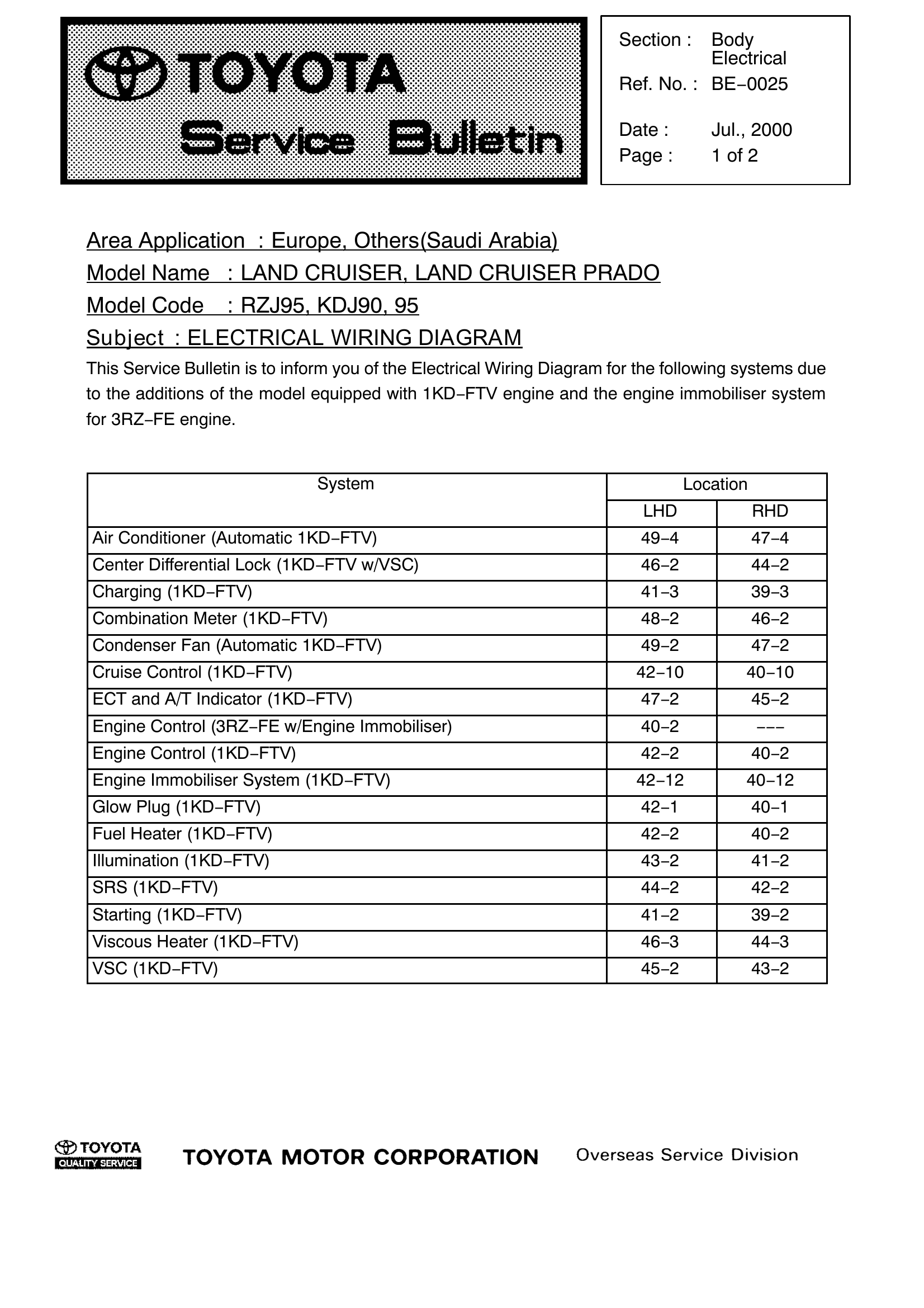

Section : Body Electrical Ref. No. : BE−0025 Date : Jul., 2000 Page : 1 of 2 Area Application : Europe, Others(Saudi Arabia) Model Name : LAND CRUISER, LAND CRUISER PRADO Model Code : RZJ95, KDJ90, 95 Subject : ELECTRICAL WIRING DIAGRAM This Service Bulletin is to inform you of the Electrical Wiring Diagram for the following systems due to the additions of the model equipped with 1KD−FTV engine and the engine immobiliser system for 3RZ−FE engine. System Location LHD RHD Air Conditioner (Automatic 1KD−FTV) 49−4 47−4 Center Differential Lock (1KD−FTV w/VSC) 46−2 44−2 Charging (1KD−FTV) 41−3 39−3 Combination Meter (1KD−FTV) 48−2 46−2 Condenser Fan (Automatic 1KD−FTV) 49−2 47−2 Cruise Control (1KD−FTV) 42−10 40−10 ECT and A/T Indicator (1KD−FTV) 47−2 45−2 Engine Control (3RZ−FE w/Engine Immobiliser) 40−2 −−− Engine Control (1KD−FTV) 42−2 40−2 Engine Immobiliser System (1KD−FTV) 42−12 40−12 Glow Plug (1KD−FTV) 42−1 40−1 Fuel Heater (1KD−FTV) 42−2 40−2 Illumination (1KD−FTV) 43−2 41−2 SRS (1KD−FTV) 44−2 42−2 Starting (1KD−FTV) 41−2 39−2 Viscous Heater (1KD−FTV) 46−3 44−3 VSC (1KD−FTV) 45−2 43−2
