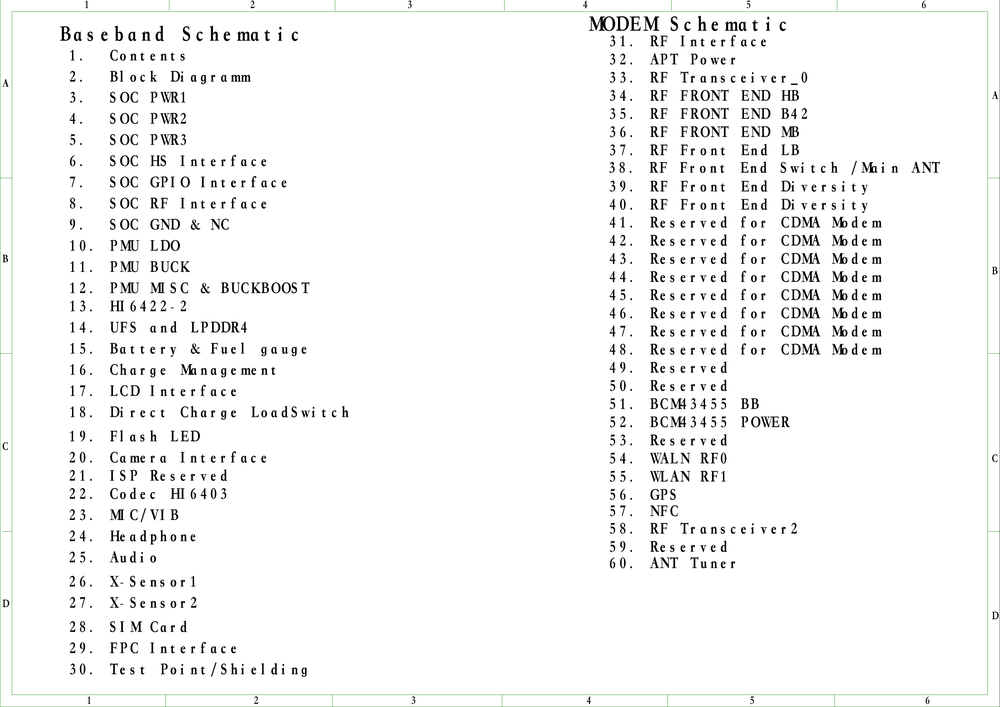

1 2 3 A B C D Baseband Schematic 1. Contents 2. Block Diagramm 3. SOC PWR1 4. SOC PWR2 5. SOC PWR3 6. SOC HS Interface 7. SOC GPIO Interface 8. SOC RF Interface 9. SOC GND & NC 10. PMU LDO 11. PMU BUCK 12. PMU MISC & BUCKBOOST 13. HI6422-2 14. UFS and LPDDR4 15. Battery & Fuel gauge 16. Charge Management 17. LCD Interface 18. Direct Charge LoadSwitch 19. Flash LED 20. Camera Interface 21. ISP Reserved 22. Codec HI6403 23. MIC/VIB 24. Headphone 25. Audio 26. X-Sensor1 27. X-Sensor2 28. SIM Card 29. FPC Interface 30. Test Point/Shielding 5 6 4 MODEM Schematic 31. RF Interface 32. APT Power 33. RF Transceiver_0 34. RF FRONT END HB 35. RF FRONT END B42 36. RF FRONT END MB 37. RF Front End LB 38. RF Front End Switch /Main ANT 39. RF Front End Diversity 40. RF Front End Diversity 41. Reserved for CDMA Modem 42. Reserved for CDMA Modem 43. Reserved for CDMA Modem 44. Reserved for CDMA Modem 45. Reserved for CDMA Modem 46. Reserved for CDMA Modem 47. Reserved for CDMA Modem 48. Reserved for CDMA Modem 49. Reserved 50. Reserved 51. BCM43455 BB 52. BCM43455 POWER 53. Reserved 54. WALN RF0 55. WLAN RF1 56. GPS 57. NFC 58. RF Transceiver2 59. Reserved 60. ANT Tuner A B C D 1 2 3 4 5 6
