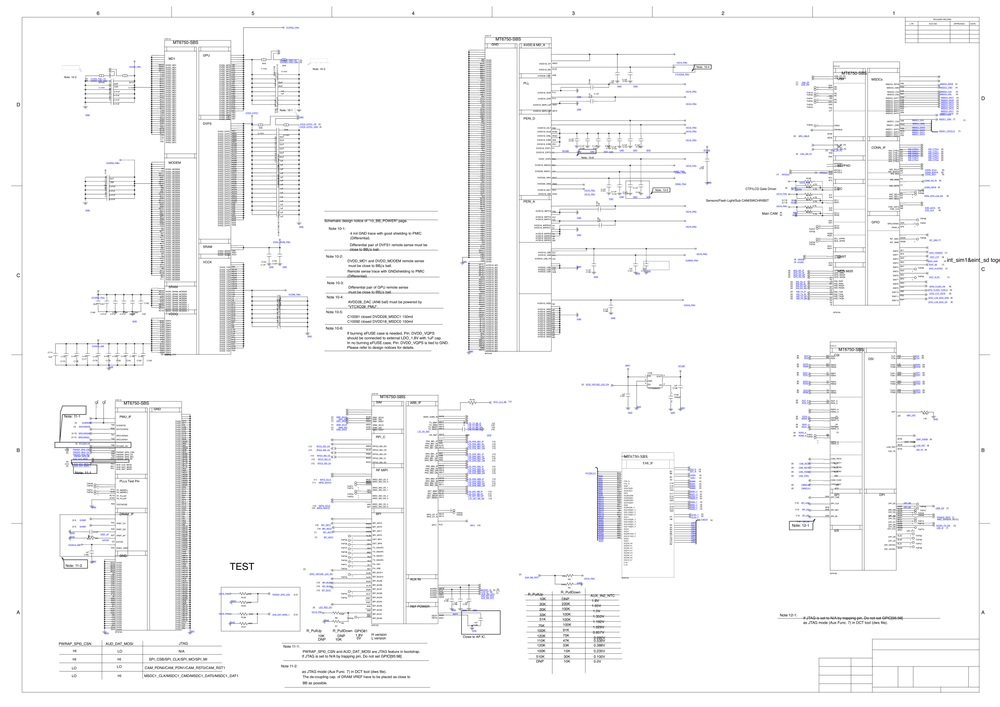

6 5 4 3 2 1 REVISION RECORD LTR ECO NO: APPROVED: DATE: Project : MT6755 REF_SCH TOP LEVEL eMMC MSDC0 / eMMC MSDC 4-bit MSDC1 micro SD hot-plug Connectivity ANT MSDC2 Pin-MUX CONN IF ABB CONN IQ GPI MT6625L TCXO BPI, APC RF IQ BSI ctrl MT6176 26M_BB CLK Ctrl 26M_AUD 26M_NFC RXD RX TX RXD ANT RxD FEM Main 1 ANT FEM LCD module Camera Modules MT6311 CTP controller SIM1 SIM2 Keypad Debug port CONN IF LCD (MIPI DSI) Camera (MIPI CSI) I2C_1 / I2C_2 I2C_APPM I2C_0 I2C_1 I2C_3 SPI SIM1 SIM2 EINT Keypad MSDC1/Camera /SPI Pin-MUX JTAG DPI USB2.0 / USB3.0 CONN ctrl LCD IF Camera IF I2C I2C I2C I2C GPIOs SIM1 SIM2 JTAG UART USB 2.0 MEMs & ALS/PS I2C 26M_NFC MT6605 MT6755 (SBS) LDOs LDOs Bucks Bucks GPIOs / EINTs BC 1.1 BC1.1 VDVFS1 I2C-APPM MT6311 32K_BB MT6351 RTC Vibrator 32K VIB Audio Speech AU_VIN0 AU_LOLP/N Headset (HPL, HPR, AU_VIN1) Receiver SPK Driver Class D/AB/G VSYS PWR THIRD-PARTY LCM Gate Driver Flash LCM_AVDD/AVEE FLASH Audio I/F PWRAP I/F AUD I/F SPI I2C_0 I2C_1 BST_LX WLED BST Charger/ SW Battery USB 2.0 micro USB I2C Function I2C Spec. Budget Timing I2C Slave Address (7-bit mode) CTP 400 Kbps Yes. GT1151 I2C address: 0X5D (Write:0xBA, Read:0xBB) or 0x14 (Write:0x28, Read:0x29) A Gyro Sensor 400 Kbps Yes. MPU-6515 / A Gyro I2C Address: 0x68 (Write:0xD0, Read:0xD1) I2C-0 LCM Gate Driver 400 Kbps M Sensor 400 Kbps Baro Sensor 400 Kbps RGB / PS Sensor 400 Kbps Flash LED 400 Kbps I2C-1 Front Camera - 8M 400 Kbps NT50358 / LCM Gate Driver I2C address: 0X3E (Write:0x7C, Read:0x7D) YAS533 / M-Sensor I2C Address 0x2E (Write: 0x5C, Read: 0x5D) BMP280 / Baro I2C address: 0X77 (Write:0xEE, Read:0xEF) CM36558/ RGB PS I2C address: 0x51 (Write:0x TBC, Read:0xTBC) RT4505 / Flash LED I2C address: 0X63 (Write:0xC6, Read:0xC7) Front camera (OV8858) I2C address: 0X10 (Write:0x20, Read:0x21) AF driver (BU64245GWZ) I2C address: 0X0C (Write:0x18, Read:0x19) SWCHR 400 Kbps BQ25896/ SWCHR I2C address: 0X6B (Write:0xTBC, Read:0xTBC) Yes. TBD I2C-2 Rear Camera - 16M 400 Kbps Yes. Rear camera (S5K2P8) I2C address: 0X10 (Write:0x20, Read:0x21) AF driver (BU64297GWZ-TR) I2C address: 0X0C (Write:0x18, Read:0x19) I2C-3 NFC 1.2 Mbps Yes. NFC I2C address: 0X28 (Write:0x50, Read:0x51) I2C-APPM MT6311 TBD Yes. MT6311 / 2-Phase Buck I2C address: 0X6B (Write:0x, Read:0x) Note : I2C Spec. : Standard mode (100 kbps) and Fast mode (400 kbps), Fast mode Plus (1 Mbps) and High-speed mode (3.4 Mbps) D C B A D C B A
